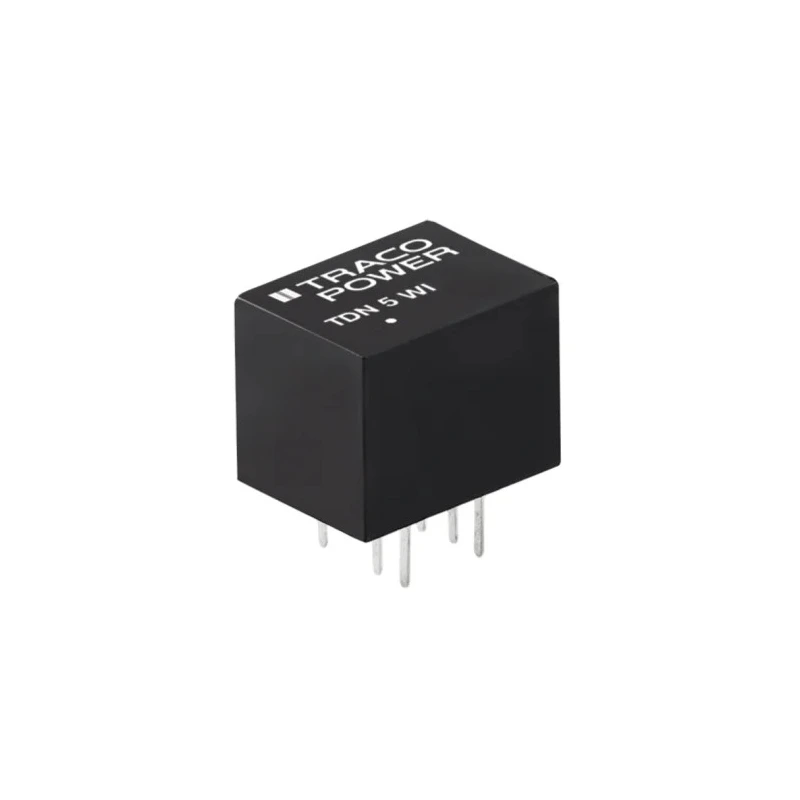

TRACOPOWER TND 5WI Isolated DC/DC Converter 15V dc Output 333 mA 75V dc Max Input 18V Min, 5W Through Hole DIP TDN 5-4813WI

TRACOPOWER TDN 5-4813WI is an isolated DC/DC converter designed to provide a stable 15V DC output with a current capacity of 333 mA. It operates efficiently within a broad input voltage range of 18V to 75V DC, making it suitable for various industrial and electronic power supply applications.

This converter features a compact and rugged through-hole DIP package (dimensions 13.2 mm length, 9.1 mm width, and 10.2 mm depth), facilitating easy integration into densely packed circuit boards. With an efficiency rating of 83%, it minimizes power loss and heat generation.

Equipped with 1.5 kV DC isolation, the TND 5WI series safeguards sensitive components from voltage spikes and electrical noise, thereby improving system reliability and safety. It supports operating temperatures from -40°C up to +75°C without performance derating, suitable for harsh operating environments.

The device incorporates protections such as short circuit prevention and remote on/off control for enhanced system management. Output voltage can be finely adjusted within ±1% to meet precise application requirements.

The TDN 5-4813WI exhibits a high Mean Time Between Failures (MTBF) of nearly 2.96 million hours, indicating exceptional durability for critical and continuous operation scenarios in electronic equipment, industrial automation, instrumentation, and power management systems.

Delivers regulated 15V DC output at a maximum current of 333 mA. Supports wide input voltage ranging from 18V minimum to 75V maximum. Compact through-hole DIP package of 13.2 x 9.1 x 10.2 mm dimensions. High efficiency of 83% ensures minimal power losses.

Isolation voltage rated at 1.5 kV DC for noise reduction and safety. Operation temperature range from -40°C to +75°C without derating. Short circuit protection and remote on/off capability. ±1% output voltage adjustment range for precision applications.

Single output providing reliable power conditioning in industrial environments. MTBF of 2,960,000h guaranteeing long-term operational reliability.

This TRACOPOWER DC/DC Converter is ideal for industrial, laboratory, instrumentation, and power management applications requiring compact, energy-efficient, and reliable voltage conversion. Explore more TRACOPOWER voltage converters and related power supply components at EnvMart for robust and quality solutions.
