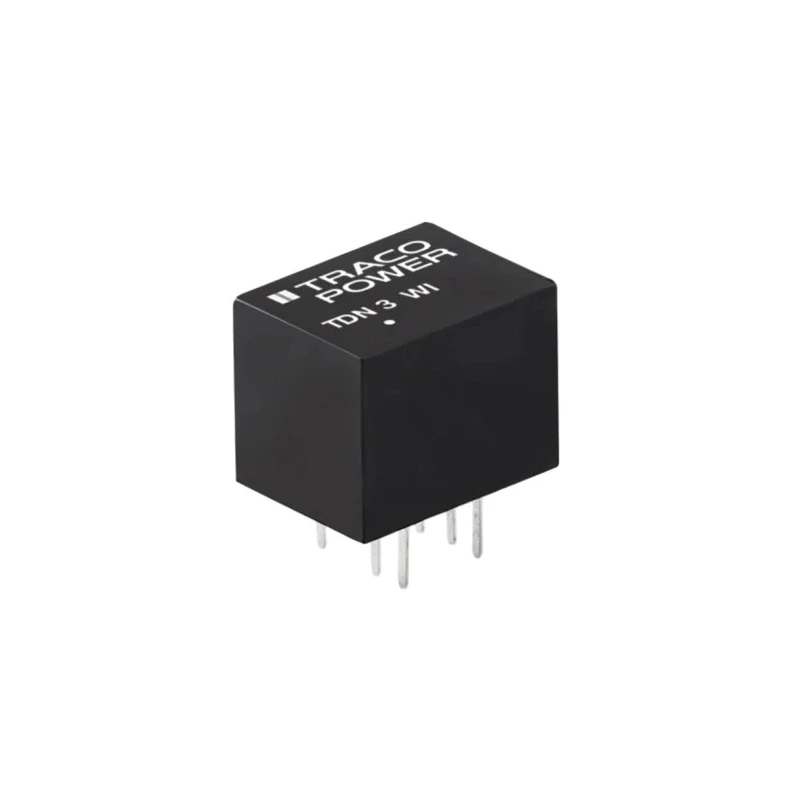

TRACOPOWER Isolated Dual Output 3W Regulated DC/DC Converter PCB Mount 9V-36V Input, ±15.15V Output, 100mA, DIP TDN 3-2423WI

The TRACOPOWER TDN 3-2423WI is a high-reliability, isolated dual output DC/DC converter designed for electronic and industrial applications requiring stable and regulated power delivery. It supports input voltages from 9 Vdc up to 36 Vdc, delivering dual outputs of ±15.15 Vdc with a current capacity of 100 mA per output, making it suitable for precision electronics requiring positive and negative supply rails.

This converter belongs to the TDN 3WI series, renowned for its ultra-compact size with a DIP package measuring only 13.2 mm (length) by 9.1 mm (width) and 10.2 mm (depth). The fully regulated outputs provide excellent voltage stability across varying load and input conditions. The device integrates high I/O isolation rated at 1.5 kVdc to protect sensitive circuits from interference and noise.

Designed to operate over a wide ambient temperature range from -40°C to +70°C with no power derating, the TDN 3-2423WI ensures consistent performance in demanding environmental conditions. It incorporates short circuit protection and remote on/off control, enhancing system safety and control flexibility. The converter achieves 82% efficiency, reducing heat dissipation and improving energy utilization.

The device is ideally suited for industrial automation, instrumentation, telecommunications, and embedded system power supplies where space constraints and reliability are critical. The robust build quality is evidenced by a high MTBF rating of over 5.6 million hours.

The compact DIP packaging facilitates straightforward PCB mounting and integration into existing designs. This DC/DC converter complies with industry standards although no specific certifications are referenced.

TRACOPOWER, a recognized industry leader in power conversion solutions, ensures product reliability with manufacturing standards based in Taiwan, Province Of China. The TDN 3WI series facilitates isolated dual regulated voltage outputs for industrial and electronic equipment.

Excellent efficiency and operating temperature range support robust performance under varied conditions. The compact DIP package ensures integration where PCB real estate is constrained. Features comprehensive protection and control options including short circuit protection and remote on/off.

Industry applications include electronic instrumentation, telecommunications, and embedded system power supply. Explore the full range of TRACOPOWER DC/DC Converters and related electronic power solutions on EnvMart for high-quality, reliable components.
