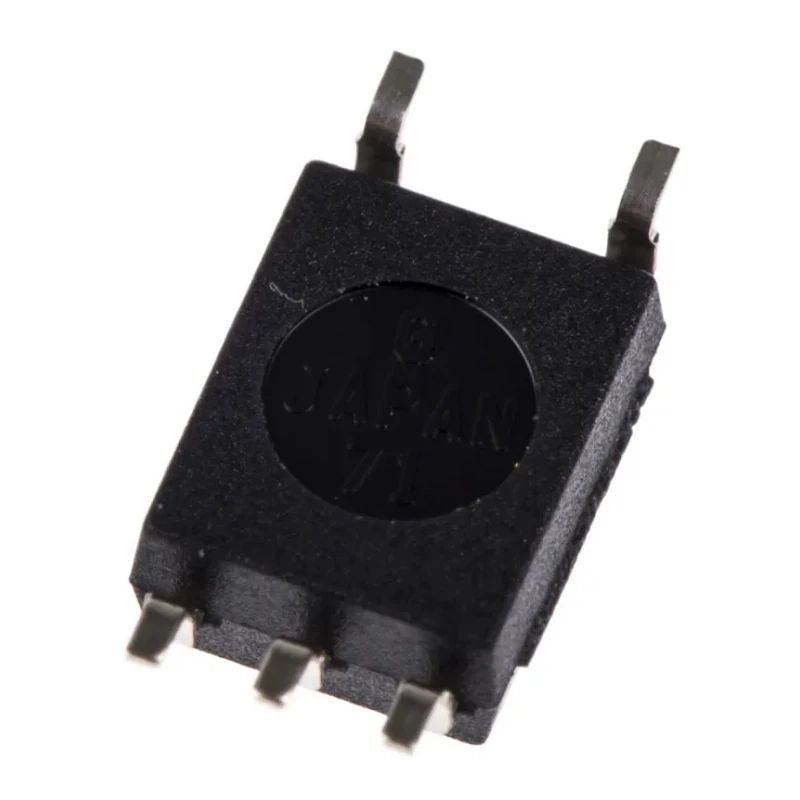

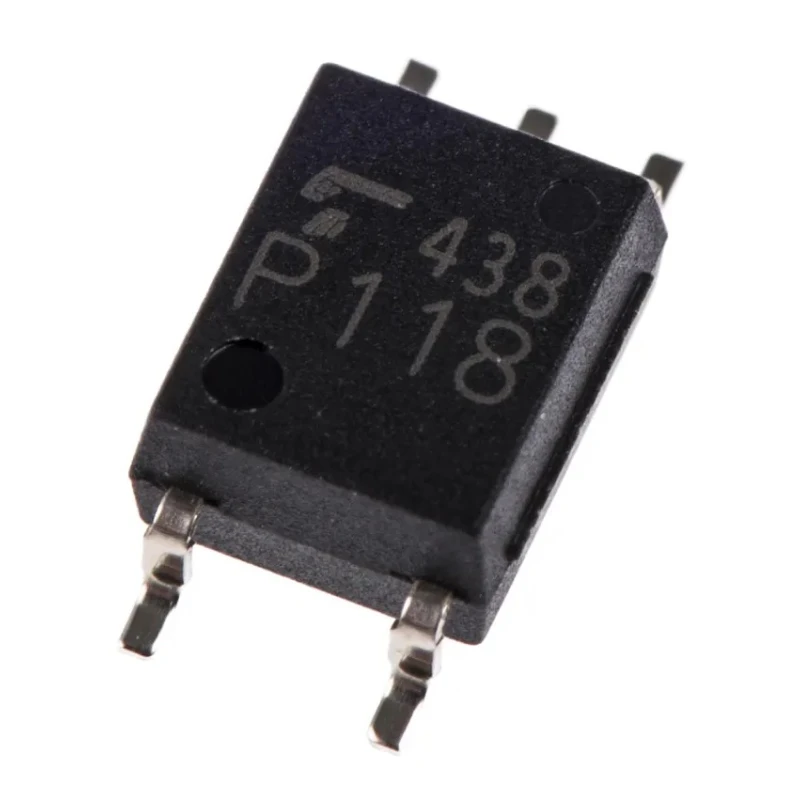

Toshiba DC Input Optocoupler Surface Mount, 5-Pin SO Package, 1 Channel, 1.85V Forward Voltage, 25mA Max Input TLP2366(E(T

Free Delivery in India | Lowest Global Shipping Charges

Toshiba DC Input Optocoupler Surface Mount, 5-Pin SO Package, 1 Channel, 1.85V Forward Voltage, 25mA Max Input TLP2366(E(T

Name: Toshiba DC Input Optocoupler Surface Mount, 5-Pin SO Package, 1 Channel, 1.85V Forward Voltage, 25mA Max Input TLP2366(E(T
Brand: Toshiba
SKU: 412012
Price: 2.09 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	Thailand
Brand	Toshiba
Model	TLP2366(E(T
Packaging	Tape
Mount Type	Surface
Series	TLP
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	25mA
Number Of Channels	1
Standards/Approvals	UL
Maximum Forward Voltage	1.85V
Number of Pins	5
Input Current Type	DC
Typical Rise Time	15ns

Key Features

Provides electrical isolation between input and output circuits for safety and noise reduction.
Designed to operate with a maximum forward voltage of 1.85V for efficient input power handling.
Supports maximum input current up to 25mA suitable for various electronic control applications.
Features fast switching times with typical rise and fall times of 15ns each.
Operates reliably within temperature range from -40°C to 125°C, suitable for harsh environments.
Includes an open-collector inverter logic output ensuring flexible interface compatibility.
Packaged with tape for automated assembly processes and ease of use.
Certified with UL standards ensuring quality and safety compliance.

Product Description

Toshiba TLP2366(E(T DC Input Optocoupler is engineered for reliable electrical isolation and signal transmission in electronic circuits. It comes in a 5-pin small outline (SO) package optimized for surface mounting, making it an excellent choice for compact and automated assembly circuit designs.

The device supports a maximum forward voltage of 1.85V and a maximum input current of 25mA, facilitating efficient control in low power electronics. Its typical rise and fall times of 15 nanoseconds ensure fast switching, aiding in high-speed digital signal applications.

Designed to tolerate operating temperatures ranging from -40°C to 125°C, the TLP2366(E(T is well-suited for industrial, automotive, and consumer electronic environments where temperature fluctuations are common.

With an open-collector inverter logic output, it provides adaptable interfacing options for microcontroller or logic-level inputs. The unit is supplied in tape packaging, supporting automated assembly fast and error-free placements.

Certified to adhere to UL standards, the product assures compliance with industry safety and quality requisites. It is manufactured in Thailand, supporting global manufacturing standards and ensuring consistency and trustworthiness.

Electrical isolation enhances safety and noise suppression in circuits. Compact surface mount 5-pin SO package supports space-saving designs. Fast rise and fall times enable high-performance digital switching. Wide operating temperature range allows versatile application environments.

Open-collector output provides flexible interfacing with control electronics. Tape packaging facilitates automated electronic component placement. UL certification underscores reliable quality and safety standards. Made in Thailand ensuring international quality manufacturing standards.

This optocoupler is ideal for use in industrial controls, consumer electronics, automotive electronics, and other applications requiring electrical isolation and fast signal switching. Browse EnvMart’s Electronics Components category for more Toshiba semiconductor products and Optocouplers.
