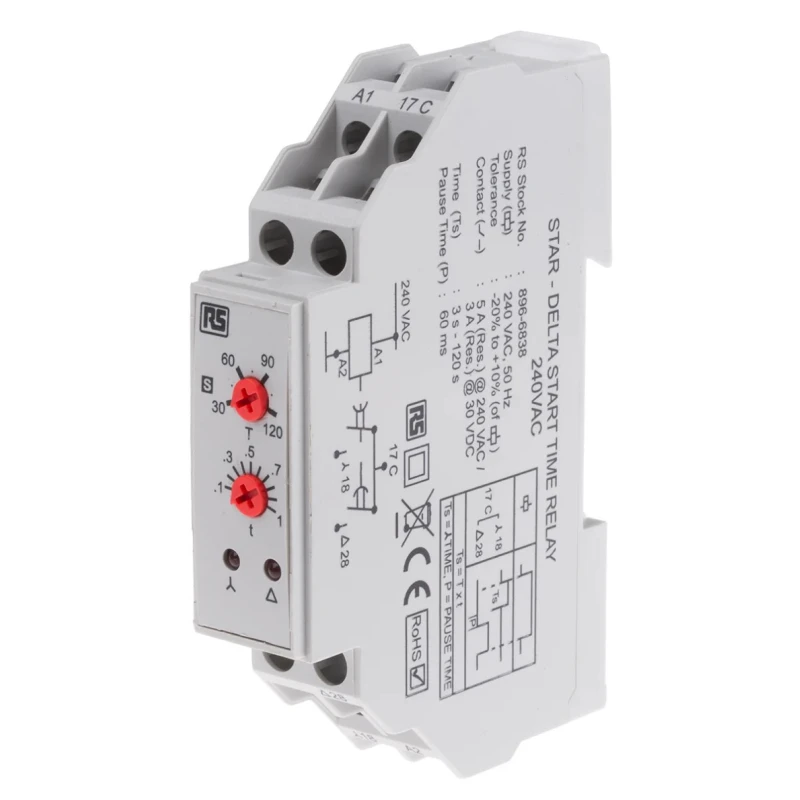

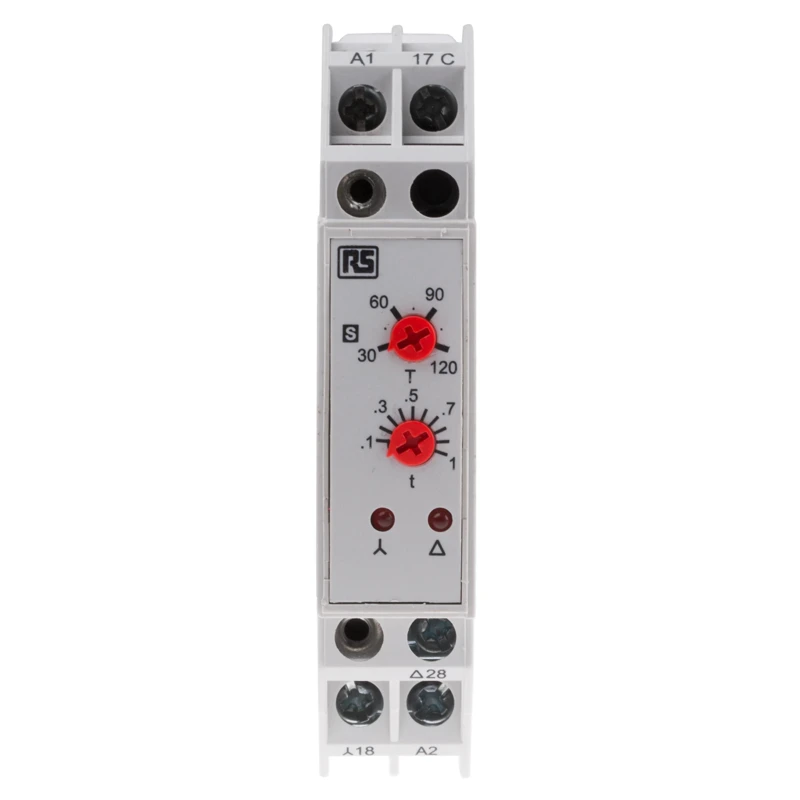

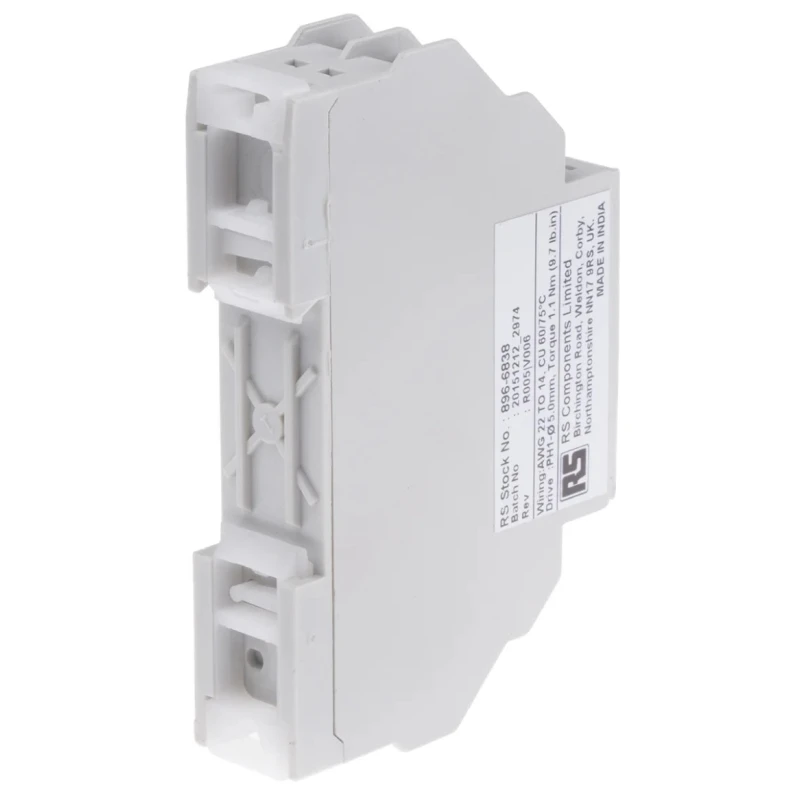

RS PRO DIN Rail Timer Relay with 2 Contacts, 24 V DC / 240 V AC, 3 to 120 Seconds Timing Range, 1 Function, SPST 896-6838

Free Delivery in India | Lowest Global Shipping Charges

RS PRO DIN Rail Timer Relay with 2 Contacts, 24 V DC / 240 V AC, 3 to 120 Seconds Timing Range, 1 Function, SPST 896-6838

Name: RS PRO DIN Rail Timer Relay with 2 Contacts, 24 V DC / 240 V AC, 3 to 120 Seconds Timing Range, 1 Function, SPST 896-6838
Brand: RS PRO
SKU: 412004
Price: 60.8 USD
Availability: InStock



Category Timer Relay Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Height	58.5mm
Function	Offset Double Ring End
Length	17.5mm
Model	896-6838
Mode	Star-Delta
Width	90mm
Mount Type	DIN Rail
Series	RS PRO
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Minimum Operating Temperature	-10°C
Time Range	3 to 120 s
Terminal type	Screw
Standards/Approvals	RoHS
Number of Contacts	2
Number of Timer Functions	1
Supply DC Voltage	24 V dc
Supply AC Voltage	240V ac
Relpol T-R4WU Series DIN Rail Mount Timer Relay, 4PDTBrand	Relpol

Key Features

Compact 17.5mm width suitable for DIN rail mounting.
Operating temperature range from -10°C to 55°C ensures reliable performance.
LED indicators provide clear power and relay status.
Integrated dual voltage supports 24 V DC and 240 V AC supply.
IP20 rated terminals and IP40 enclosure protection for durability.
Screw terminal type for secure wiring connections.
Star-Delta mode function for electrical isolation and timing control.
Compliant with RoHS standards for safety and environment.

Product Description

RS PRO 896-6838 DIN Rail Timer Relay is designed for precise timing applications in industrial and electrical automation systems. This timer relay supports a dual voltage input of 24 V DC and 240 V AC, suitable for use in varied electrical environments. With a timing range of 3 to 120 seconds and a single timer function, it operates with SPST contact configuration to control circuits effectively.

The device is compact at 17.5mm width allowing easy installation on standard DIN rails. It operates reliably in temperature conditions from -10°C to 55°C, featuring LED indicators to show power and relay status, improving monitoring and maintenance processes.

Screw-type terminals enable secure wiring, enhancing installation stability. The relay’s star-delta offset double ring end function facilitates total electrical isolation with accurate star-delta timing. The product also provides protection with IP20 rating for terminals and IP40 for the enclosure, ensuring durability in industrial environments.

Compliant with RoHS standards, this timer relay supports industry safety and environmental requirements. Its construction and features make it suitable for applications in industrial automation, control panels, HVAC systems, and manufacturing equipment requiring reliable timer control.

Compact 17.5mm width suitable for DIN rail mounting. Operating temperature range from -10°C to 55°C ensures reliable performance. LED indicators provide clear power and relay status. Integrated dual voltage supports 24 V DC and 240 V AC supply.

IP20 rated terminals and IP40 enclosure protection for durability. Screw terminal type for secure wiring connections. Star-Delta mode function for electrical isolation and timing control. Compliant with RoHS standards for safety and environment.

For advanced electrical control needs, RS PRO timer relays offer dependable solutions. Discover a full range of Timer Relays and electrical components at EnvMart for your industrial and automation projects.
