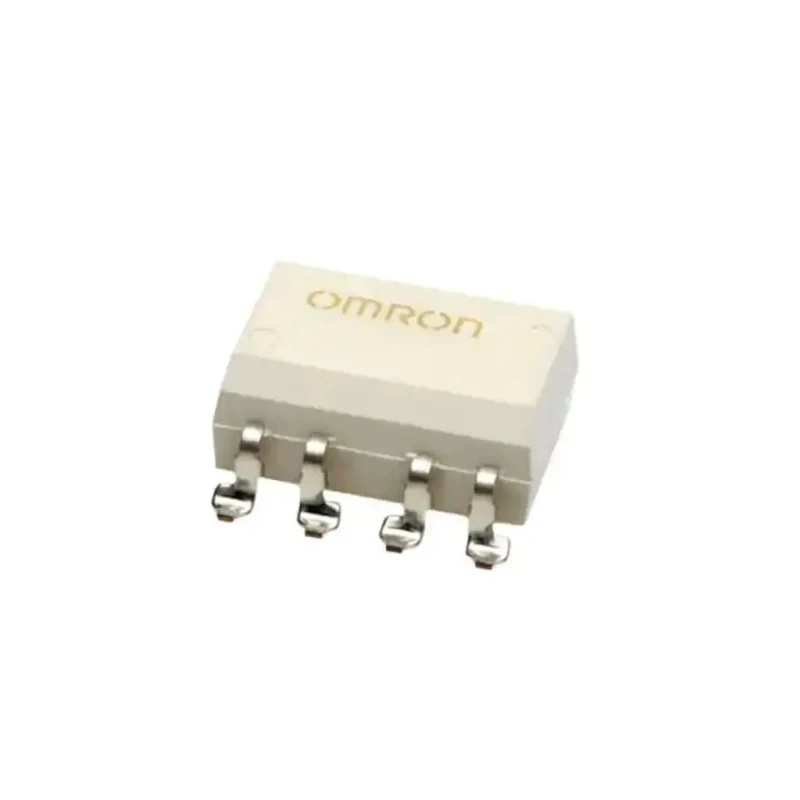

Omron G3VM Series Solid State Relay, Surface Mount, 5 A Load Current, 60 V Load Voltage G3VM

Omron G3VM Series Solid State Relay G3VM is engineered for superior electrical performance with a maximum load current of 5 A and a maximum load voltage of 60 V. This surface mount relay features MOSFET output type that provides precise AC/DC switching suitable for a variety of industrial and electronic applications including semiconductor testing, communication equipment, and data logging systems.

The device is designed with compact dimensions - 9.66 mm length, 6.4 mm width, and 3.65 mm height - allowing seamless integration on densely populated printed circuit boards. Its SPST contact configuration combined with PCB terminal mounting ensures reliable switching with minimal signal loss. The relay supports a wide operating temperature range from -40°C up to 85°C, making it suitable for diverse environmental conditions.

Key technical features include low off-state leakage current of 1 μA which limits power dissipation during idle periods, as well as a very low output capacitance of 0.8 pF, facilitating high-frequency switching applications. This relay complies with UL and RoHS standards, ensuring both safety and environmental responsibility. The solid state relay is manufactured in Japan, reflecting renowned quality and reliability.

Features a MOSFET output type ensuring reliable AC/DC switching capability. Compact dimensions of 9.66 mm length, 6.4 mm width, and 3.65 mm height for versatile PCB mounting. Supports a wide operating temperature range from -40°C to 85°C for industrial and commercial applications.

Designed with PCB terminals and SPST contact configuration for efficient circuit integration. Low off-state leakage current of 1 μA minimizes power consumption during inactive states. Extremely low output capacitance of 0.8 pF suitable for high-frequency applications.

Conforms to UL and RoHS standards ensuring compliance with safety and environmental regulations. Manufactured in Japan to maintain high-quality standards.

This solid state relay is ideal for industrial automation, electrical control systems, semiconductor testing devices, communication equipment, and data logging applications where fast, precise, and reliable switching is critical. Its small form factor and advanced electrical properties make it a dependable choice for modern electronic design and manufacturing.
