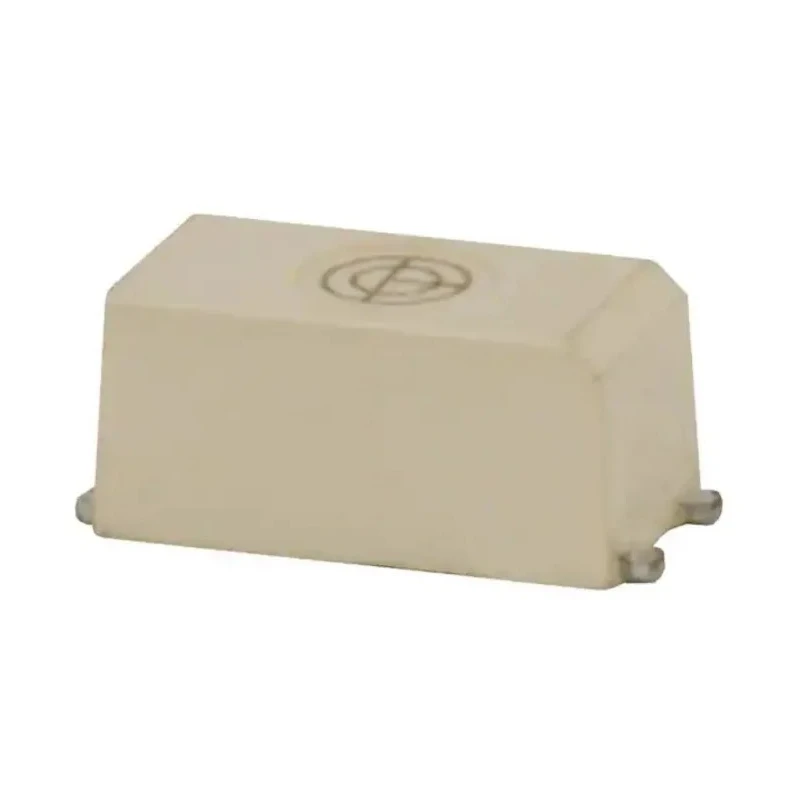

Omron G3VM Series Solid State Relay, 120mA Load Current, 40V Load Voltage, PCB Mount, SSOP-4 Package G3VM

Omron G3VM Series Solid State Relay G3VM is designed for high performance in low current and voltage switching applications. It is packaged in a small SSOP-4 surface mount device optimized for PCB mounting, making it ideal for compact electronic designs.

The relay supports a maximum load current of 120mA and a maximum load voltage of 40V, suitable for diverse semiconductor test equipment, communication devices, test and measurement instruments, and data loggers.

Designed with a low on-state resistance of 12 ohms and minimal off-state leakage current of 0.2nA, it ensures energy efficiency and reliability in signal conditioning and switching applications.

The relay operates across a temperature range from -20°C to 85°C, assuring stable performance in industrial and laboratory environments. Its SPST-NO contact configuration provides straightforward normally open switching functionality.

The MOSFET output stage guarantees fast switching speeds and long service life, supporting applications in automation, industrial control, and electronic manufacturing.

Physical specifications with compact dimensions (3.65mm length, 3.8mm width, and 1.8mm height) support high-density PCB layouts. The relay complies with UL and RoHS standards, ensuring safety and environmental compliance.

As a premium quality product from Omron, the G3VM Series Solid State Relay is engineered for reliability and precision in demanding electronic control systems. This relay features a maximum load current of 120mA for efficient low-power applications.

It supports a maximum load voltage of 40V ensuring compatibility with various circuits. The relay uses a Surface Mount Package Type SSOP-4 for compact PCB integration. Operational temperature ranges from -20°C to 85°C accommodating a variety of environments.

It features a low On State Resistance of 12 ohms to reduce power loss. The relay is a single-pole single-throw normally open (SPST-NO) contact type for simple switching functions. Low Off State Leakage Current of 0.2nA minimizes standby power consumption.

The output type is MOSFET providing fast switching and long life. Dimensions are compact with a length of 3.65mm, width 3.8mm, and height 1.8mm for space-saving designs. Browse more Solid State Relays and precision electronic components at EnvMart for your industrial automation, laboratory instrumentation, and communication equipment projects.
