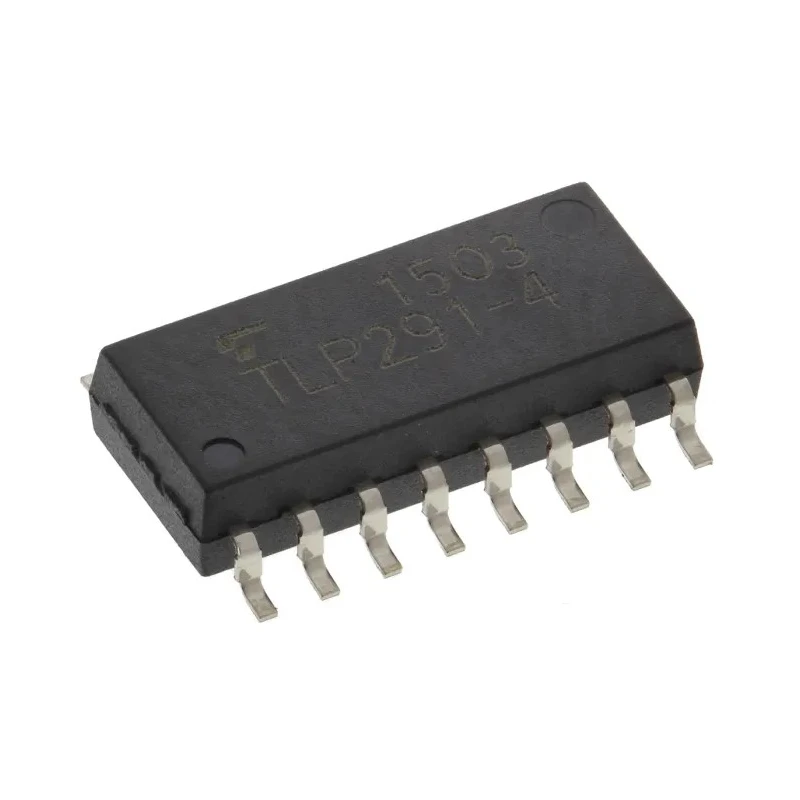

Toshiba DC Input 4-Channel Phototransistor Output Surface Mount Optocoupler, 16-Pin SOIC TLP291-4(GB-TP,E(T

Free Delivery in India | Lowest Global Shipping Charges

Toshiba DC Input 4-Channel Phototransistor Output Surface Mount Optocoupler, 16-Pin SOIC TLP291-4(GB-TP,E(T

Name: Toshiba DC Input 4-Channel Phototransistor Output Surface Mount Optocoupler, 16-Pin SOIC TLP291-4(GB-TP,E(T
Brand: Toshiba
SKU: 411846
Price: 1.24 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	Thailand
Brand	Toshiba
Model	TLP291-4(GB-TP,E(T
Mount Type	Surface
Output type	Phototransistor
Series	TLP 291-4
Maximum Operating Temperature	110°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	4
Standards/Approvals	UL, EN, CSA
Maximum Forward Voltage	1.4V
Number of Pins	16
Input Current Type	DC
Typical Rise Time	2μs
Maximum Current Transfer Ratio	4%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	100%
Toshiba TLP291-4(E(T DC Input 4-Channel Optocoupler, Surface, 16-Pin SOICBrand	Toshiba

Key Features

Features 4 input channels with phototransistor output for precise signal isolation.
Surface mount package type SOIC with 16 pins suitable for compact PCB layouts.
Operates with maximum forward voltage of 1.4V and maximum input current of 50mA.
Typical rise time of 2μs and fall time of 3μs ensuring fast response times.
Wide operating temperature range from -55°C to 110°C for industrial reliability.
Electrical isolation voltage rated at 2.5kVrms for safety in power electronics.
Complies with UL, EN, and CSA standards, ensuring quality and safety.
Manufactured in Thailand with Toshiba's proven reliability.

Product Description

Toshiba TLP291-4(GB-TP,E(T is a high-performance DC input 4-channel optocoupler featuring phototransistor output in a surface mount 16-pin SOIC package. Designed for electrical isolation in electronic circuits, it provides four independent channels, ideal for digital signal isolation in industrial and electronic applications.

The device supports a maximum forward voltage of 1.4V and maximum input current of 50mA for efficient input signal processing. Its typical rise time of 2μs and fall time of 3μs enable fast switching operations, essential for precise timing control.

Engineered to withstand harsh environments, this optocoupler operates reliably across a temperature range of -55°C to 110°C. It achieves an isolation voltage of 2.5kVrms, making it suitable for high-voltage applications requiring safe electrical isolation.

Compliant with international standards including UL, EN, and CSA, the TLP291-4 series guarantees performance and safety quality. Its surface mount SOIC package facilitates easy integration into compact PCB designs, optimizing space and assembly efficiency.

This product is ideal for industrial automation, power supply units, and control systems where reliable electrical isolation and fast response times are critical. Manufactured in Thailand by Toshiba, it offers proven durability and quality assurance for demanding environments.

Features 4 input channels with phototransistor output for precise signal isolation. Surface mount package type SOIC with 16 pins suitable for compact PCB layouts. Operates with maximum forward voltage of 1.4V and maximum input current of 50mA.

Typical rise time of 2μs and fall time of 3μs ensuring fast response times. Wide operating temperature range from -55°C to 110°C for industrial reliability. Electrical isolation voltage rated at 2.5kVrms for safety in power electronics.

Complies with UL, EN, and CSA standards, ensuring quality and safety. Manufactured in Thailand with Toshiba's proven reliability. Explore more Toshiba electronics and Optocouplers at EnvMart to enhance your industrial and commercial projects.
