Toshiba DC Input Phototransistor Optocoupler Surface Mount 4-Pin SO TLP293(BL,E(T

Free Delivery in India | Lowest Global Shipping Charges

Toshiba DC Input Phototransistor Optocoupler Surface Mount 4-Pin SO TLP293(BL,E(T

Name: Toshiba DC Input Phototransistor Optocoupler Surface Mount 4-Pin SO TLP293(BL,E(T
Brand: Toshiba
SKU: 411841
Price: 0.5 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	Thailand
Brand	Toshiba
Operating Temperature	-55 to 125
Model	TLP293(BL,E(T
Mount Type	Surface
Output type	Phototransistor
Series	TLP 293
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	UL, CSA, EN
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	2μs
Maximum Current Transfer Ratio	6%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	200%
Current Transfer Ratio	50 % (min) (@I
Collector-Emitter Voltage	80 V (min)
GB Rank	100 % (min) (@I

Key Features

Features a phototransistor optically coupled with an infrared LED in SO4 package.
Guaranteed isolation voltage of 3750 Vrms for high-density applications.
Wide operating temperature range from -55°C to 125°C.
Typical rise time of 2 microseconds and fall time of 3 microseconds.
Maximum forward voltage rated at 1.4 volts and maximum input current of 50 mA.
Collector-emitter voltage minimum of 80 volts ensuring robust performance.
Complies with UL, CSA, and EN standards for safety and reliability.
Ideal for surface mount programmable controllers and industrial electronic applications.

Product Description

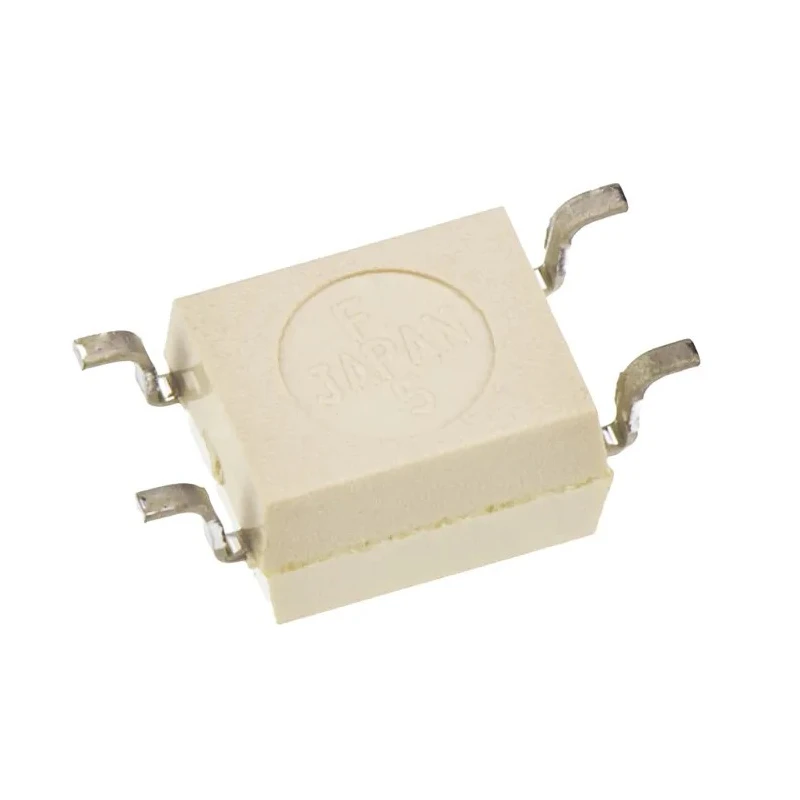

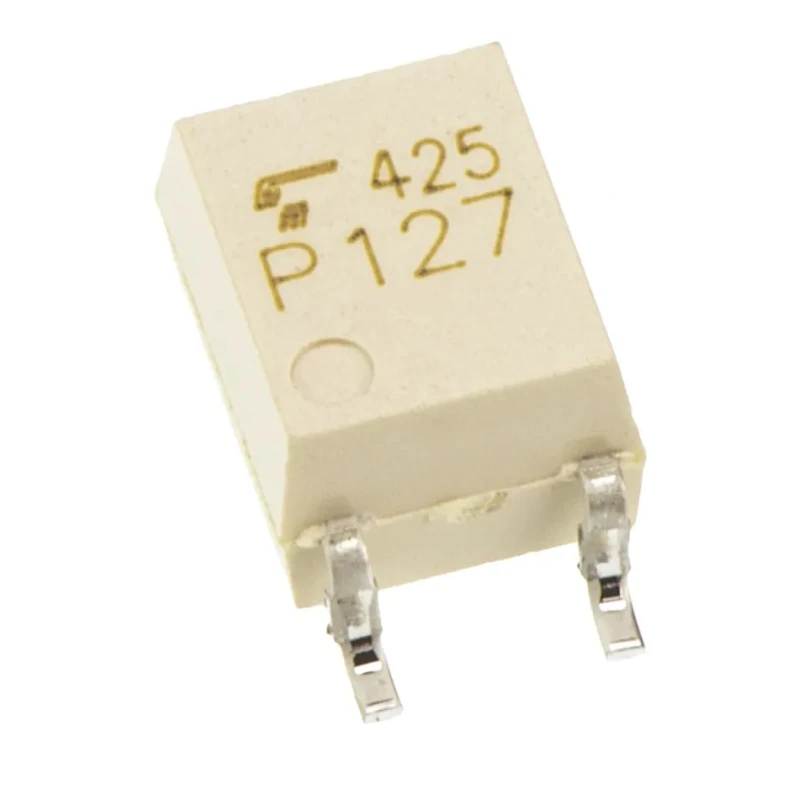

Toshiba TLP293(BL,E(T is a DC input phototransistor optocoupler designed for surface mounting in a compact 4-pin SO package. It integrates a phototransistor optically coupled with an infrared LED, providing excellent electrical isolation with a guaranteed isolation voltage of 3750 Vrms. The device operates reliably over a wide temperature range from -55°C to 125°C, making it suitable for harsh industrial environments.

This optocoupler features a maximum forward voltage of 1.4 V and supports an input current up to 50 mA. Its fast switching characteristics, with a typical rise time of 2 μs and fall time of 3 μs, enable efficient signal transmission with minimal delay. The collector-emitter voltage rating of 80 V minimum ensures robustness in various control circuits.

Certified under UL, CSA, and EN standards, the TLP293(BL,E(T meets stringent safety and quality requirements. It is commonly used in programmable controllers, signal isolation circuits, and industrial electronic devices where high isolation and reliable performance are mandatory.

The surface mount design allows high-density installation on PCBs, making it ideal for space-constrained applications. The optocoupler's phototransistor output and DC input current type support diverse industrial automation and control system requirements.

Features a phototransistor optically coupled with infrared LED in SO4 package. Isolation voltage rating of 3750 Vrms for high reliability. Wide operating temperature range from -55°C to 125°C. Fast switching with 2 μs rise time and 3 μs fall time.

Maximum forward voltage of 1.4 V and input current of 50 mA. Certified by UL, CSA, and EN standards for safety compliance. Compact 4-pin surface mount package for high-density PCB applications. Suitable for programmable controllers and industrial automation systems.
