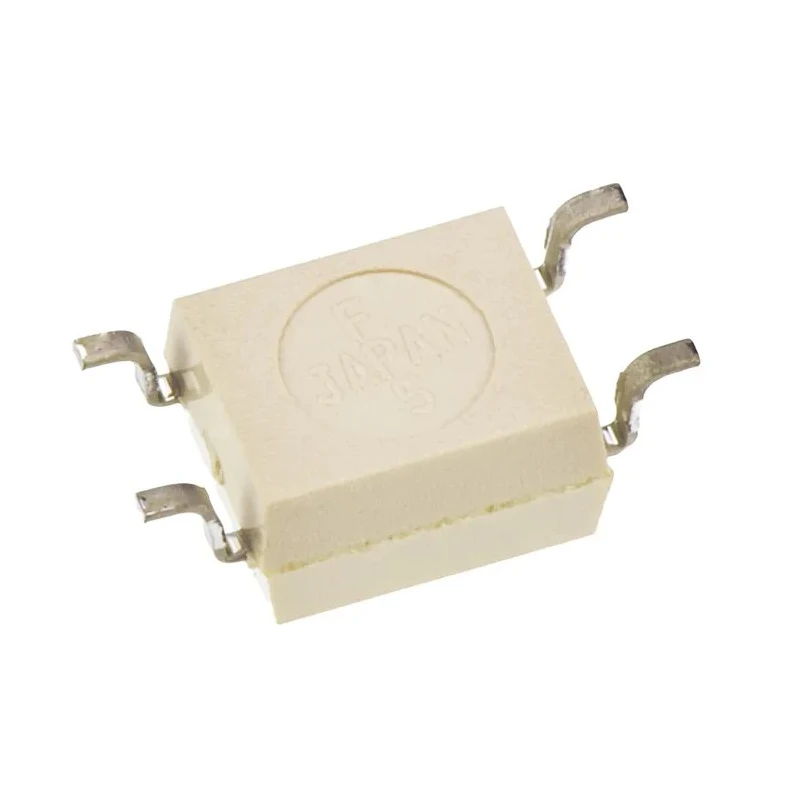

Toshiba DC Input Optocoupler Surface Mount Phototransistor Output 4-Pin SO TLP185(GR,SE(T

Free Delivery in India | Lowest Global Shipping Charges

Toshiba DC Input Optocoupler Surface Mount Phototransistor Output 4-Pin SO TLP185(GR,SE(T

Name: Toshiba DC Input Optocoupler Surface Mount Phototransistor Output 4-Pin SO TLP185(GR,SE(T
Brand: Toshiba
SKU: 411836
Price: 0.45 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	Thailand
Brand	Toshiba
Model	TLP185(GR,SE(T
Mount Type	Surface
Output type	Phototransistor
Series	TLP 185
Maximum Operating Temperature	110°C
Package Type	SO
Minimum Operating Temperature	-55°C
Maximum input current	20mA
Number Of Channels	1
Standards/Approvals	UL, CSA
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	5μs
Maximum Current Transfer Ratio	3%
Typical Fall Time	9μs
Minimum Current Transfer Ratio	100%

Key Features

Surface mount type for easy PCB integration.
Phototransistor output ensures efficient signal transfer.
Single channel configuration with 4 pins.
Maximum forward voltage is 1.4 V for stable operation.
Input current is DC type, with max 20 mA input current.
Typical rise and fall times are 5μs and 9μs respectively.
Wide operating temperature range from -55°C to 110°C.
High isolation voltage of 3750 Vrms for robust electrical separation.

Product Description

Toshiba TLP185(GR,SE(T DC Input Optocoupler is a compact and efficient single-channel phototransistor output device designed for surface mounting on PCBs. Operating with a DC input current and packaged in a 4-pin SO form factor, it offers reliable performance and ease of integration for diverse electronic applications.

This optocoupler features a maximum forward voltage of 1.4V and supports an input current up to 20mA, suitable for signal isolation purposes. The typical rise time of 5 microseconds and fall time of 9 microseconds aid in fast switching responses.

Designed for durability, it operates safely in temperatures ranging from -55°C to 110°C, making it suitable for industrial, automotive (non-automotive certified), and general-purpose electronic environments. The high isolation voltage rating of 3750 Vrms provides excellent protection between input and output circuits, crucial for sensitive equipment.

Certified under UL and CSA standards, this device meets recognized quality and safety benchmarks. Manufactured in Thailand under new condition terms, it aligns with modern electronic component standards.

This optocoupler is ideal for use in electronic circuitry requiring reliable electrical isolation, signal transmission, and fast response times including industrial automation, control systems, and power supply modules.

Surface mount type for easy PCB integration. Phototransistor output ensures efficient signal transfer. Single channel configuration with 4 pins. Maximum forward voltage is 1.4 V for stable operation. Input current is DC type, with max 20 mA input current.

Typical rise and fall times are 5μs and 9μs respectively. Wide operating temperature range from -55°C to 110°C. High isolation voltage of 3750 Vrms for robust electrical separation. Complies with UL and CSA standards ensuring safety and quality.

Manufactured in Thailand with new product condition. Discover more quality Toshiba electronics components and Optocouplers on EnvMart for your industrial and commercial projects.
