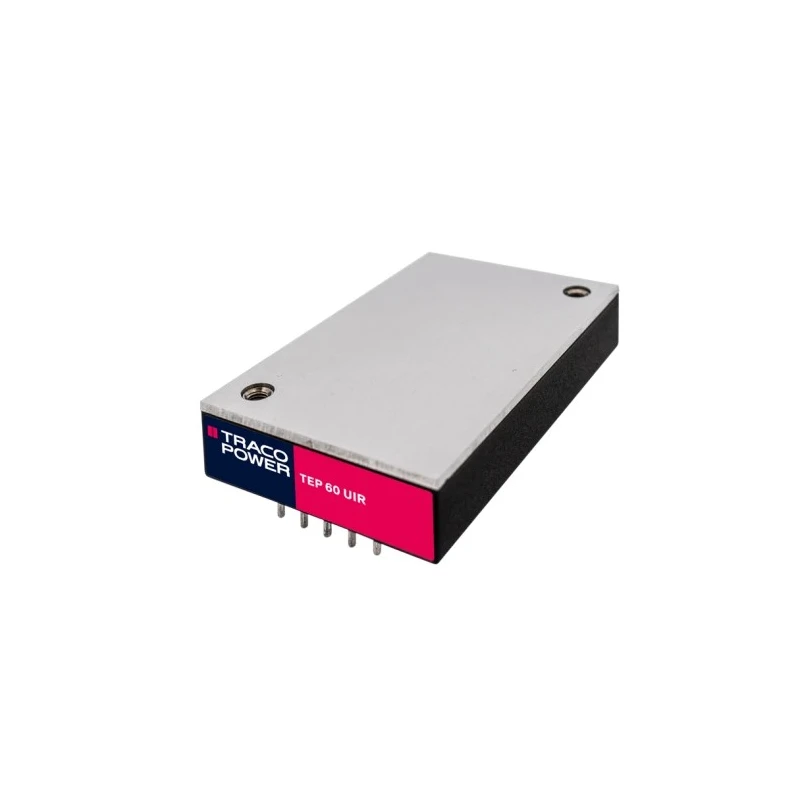

TRACOPOWER High Performance 60W Railway DC/DC Converter 15V DC Output 4A, 9-75V Input, PCB Mount, 75°C Max TEP 60-3613UIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.9% |
| Length | 57.9mm |
| Model | TEP 60-3613UIR |
| Depth | 12.7mm |
| Gross Weight | 64g |
| Width | 36.8mm |
| Mount Type | PCB |
| Series | TEP 60UIR |
| Maximum Operating Temperature | 75°C |
| Package Type | Quarter Brick |
| Minimum Operating Temperature | -40°C |
| MTBF | 738000h |
| Number of outputs | 5 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 10 |
| 12 | 1 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 4A |
| Isolation Voltage | 3kV |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 12:1 |
| Input Ratio12 | 1 |
Key Features
- Designed for railway applications with EN 50155 and EN 61373 approvals.
- Compact quarter brick metal package with dimensions 57.9mm x 36.8mm x 12.7mm.
- Features adjustable output voltage and remote On/Off control.
- High isolation voltage of 3kV and low ripple noise of 100mV peak-to-peak.
- Operating temperature range from -40°C to +75°C for harsh environments.
- Efficiency up to 91% to reduce energy waste.
- MTBF rated at 738,000 hours for long operational life.
- Includes 10 pins and five outputs for flexible connectivity.
Product Description
TRACOPOWER TEP 60-3613UIR is a robust 60 Watt DC/DC converter specifically designed for railway and industrial applications. It features a 15V DC output with up to 4A current capacity, operating over an ultra-wide input voltage range from 9V to 75V, making it a versatile solution for systems requiring multiple voltage inputs.
The converter uses a compact quarter brick metal package (57.9mm length, 36.8mm width, and 12.7mm depth), optimized for PCB mounting. It is engineered to meet strict railway standards including EN 50155 and EN 61373 to withstand shock and vibration and is qualified for fire behavior according to EN 45545-2.
Key features include an adjustable output voltage range with remote On/Off functionality, adjustable under voltage lockout, and a 3kV isolation voltage ensuring electrical safety and noise immunity. The device maintains a low ripple and noise output (100mV peak-to-peak), improving signal quality in sensitive equipment.
Operating reliably in extreme environments from -40°C to +75°C, the module is designed to provide an energy-efficient performance of approximately 91% efficiency, significantly reducing power losses and heat generation. The device's robust design extends hold-up time without the need for expensive high voltage capacitors, simplifying system design.
This converter is ideal for industrial, railway, transportation, and other demanding applications requiring stable and efficient power conversion on PCB mounts. Its long operational life is supported by a Mean Time Between Failures (MTBF) of 738,000 hours, ensuring dependable performance.
Designed for railway applications with EN 50155 and EN 61373 approvals. Compact quarter brick metal package measuring 57.9 x 36.8 x 12.7 mm. Ultra-wide 9V to 75V DC input voltage range for versatile power supply. Adjustable output voltage with remote On/Off and under voltage lockout features.
High isolation voltage of 3kV and low output ripple noise of 100mV peak-to-peak. Wide operating temperature from -40°C to +75°C for harsh conditions. Enhanced efficiency of approximately 91% to reduce energy consumption.
MTBF of 738,000 hours ensures long-term reliability. PCB mount design with 10 pins and 5 outputs for flexible integration. Explore a wide range of DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over an ultra-wide input voltage range from 9V to 75V DC.
The maximum output power of this converter is 60W.
It provides a 15V DC output with a current capacity of up to 4A.
The converter has dimensions of 57.9mm in length, 36.8mm in width, and 12.7mm in depth.
It features a high isolation voltage of 3kV.
The operating temperature range is from -40°C to +75°C, suitable for harsh environments.
This unit is designed for PCB mounting.
It includes five outputs for flexible connectivity.
It maintains a low ripple and noise output of 100mV peak-to-peak.
The converter achieves an efficiency of approximately 91%.
It is designed for railway applications with EN 50155 and EN 61373 approvals.
The MTBF is rated at 738,000 hours, indicating long operational life.
