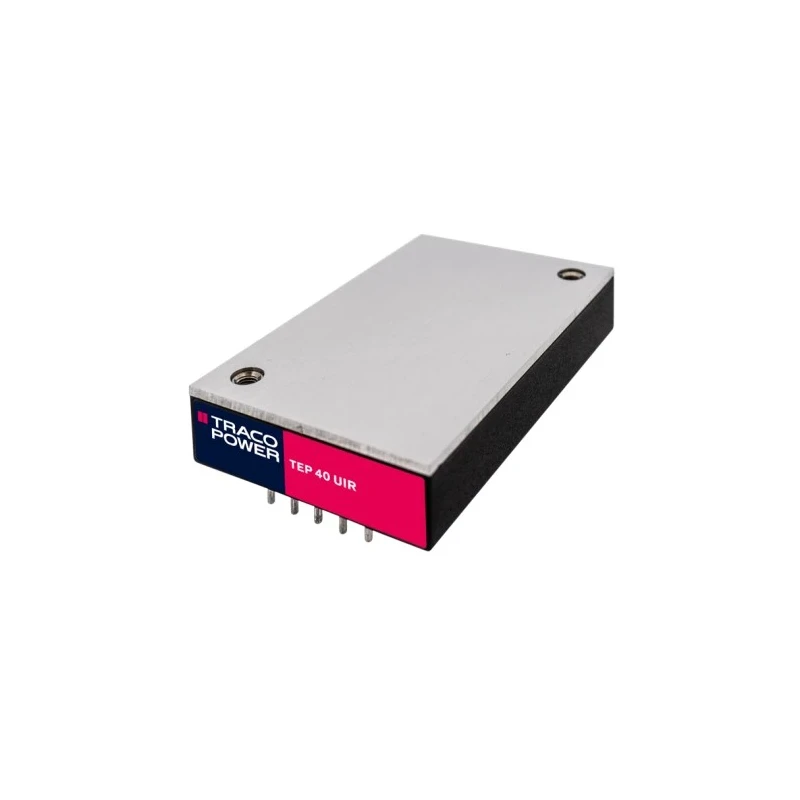

TRACOPOWER High Performance 40W Railway DC/DC Converter 15V DC, 2.67A, 160V DC Input, PCB Mount TEP 40-7213UIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.91% |
| Length | 57.9mm |
| Model | TEP 40-7213UIR |
| Depth | 12.7mm |
| Gross Weight | 64g |
| Width | 36.8mm |
| Mount Type | PCB |
| Series | TEP 40UIR |
| Maximum Operating Temperature | 85°C |
| Package Type | Quarter Brick |
| Minimum Operating Temperature | -40°C |
| MTBF | 830000h |
| Number of outputs | 5 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 14V |
| Number of Pins | 10 |
| 12 | 1 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 2.67A |
| Isolation Voltage | 3kV |
| Better World Claim | Concentrated or Compact Solution |
| Output Current 2 | 2670mA |
| Input Ratio | 12:1 |
| Input Ratio12 | 1 |
Key Features
- Output voltage of 15V DC with 2.67A output current for stable power delivery.
- Wide input voltage range from 14V to 160V DC for versatile applications.
- Compact quarter brick package ensuring space efficiency and easy PCB mounting.
- Operating temperature range from -40°C to +85°C to withstand harsh environments.
- High efficiency of 91 percent to minimize energy loss during operation.
- Isolation voltage of 3kVAC providing safety and noise immunity.
- Ripple and noise rated at 100mV peak-to-peak for clean output signal.
- Designed for railway and industrial use with compliance to EN 50155 and EN 61373 standards.
Product Description
TRACOPOWER TEP 40-7213UIR is a high performance 40 Watt railway DC/DC converter with an ultra wide 12:1 input voltage range, designed for industrial-grade power conversion applications.
Its compact quarter brick metal package (57.9mm x 36.8mm x 12.7mm) enables efficient PCB mounting while providing robustness suited for railway environments. This model delivers a regulated 15V DC output at 2.67 Amps, supporting various demanding applications that require stable and isolated power supply.
Its wide input voltage acceptance from 14V up to 160V DC allows flexible usage across different input voltage conditions that typically occur in railway power systems and industrial equipment.
The product features a high isolation voltage of 3kVAC to ensure safety and reduce electrical noise interference. It maintains a low ripple and noise of 100mV peak-to-peak, delivering clean power for sensitive electronics.
Designed to operate under extreme temperature conditions from -40°C to +85°C, the converter is ideal for harsh industrial or railway settings. It is engineered to meet EN 50155 and EN 61373 standards, ensuring reliability and quality in rail transport applications.
Additional functionality includes adjustable output voltage, remote On/Off capability, and adjustable undervoltage lockout to protect connected devices and optimize performance. This module includes bus pins that facilitate extended hold-up time without expensive high voltage capacitors, enhancing operational stability.
The TEP 40-7213UIR offers an efficiency of approximately 91%, providing energy savings and reduced heat dissipation. Package contents and details: Single PCB-mounted converter module in quarter brick form factor. Ideal uses cover industrial, railway, automation, construction machinery, and other commercial power supply applications.
Explore EnvMart's comprehensive selection of DC/DC Converters for industrial and railway power solutions. Output voltage of 15V DC with 2.67A output current for stable power delivery. Wide input voltage range from 14V to 160V DC for versatile applications.
Compact quarter brick package ensuring space efficiency and easy PCB mounting. Operating temperature range from -40°C to +85°C to withstand harsh environments. High efficiency of 91 percent to minimize energy loss during operation.
Isolation voltage of 3kVAC providing safety and noise immunity. Ripple and noise rated at 100mV peak-to-peak for clean output signal. Designed for railway and industrial use with compliance to EN 50155 and EN 61373 standards.
Includes adjustable output voltage, remote On/Off, and under voltage lockout features.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 15V DC with an output current of 2.67A.
The converter accepts a wide input voltage range from 14V to 160V DC, allowing for versatile applications.
The dimensions of this quarter brick converter are 57.9mm in length, 36.8mm in width, and 12.7mm in depth.
It has an efficiency rating of approximately 91%, which helps minimize energy loss during operation.
The TEP 40-7213UIR operates within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
This model features an isolation voltage of 3kVAC, providing safety and noise immunity.
The ripple and noise are rated at 100mV peak-to-peak, ensuring a clean output signal.
The TEP 40-7213UIR is designed for PCB mounting, which facilitates easy installation.
It is designed to comply with EN 50155 and EN 61373 standards, ensuring reliability in railway and industrial applications.
This unit includes adjustable output voltage, remote On/Off capability, and adjustable undervoltage lockout to protect connected devices.
The gross weight of the TEP 40-7213UIR is 64g, making it lightweight for its capacity.
This converter has a total of 5 outputs, allowing for multiple connections.
