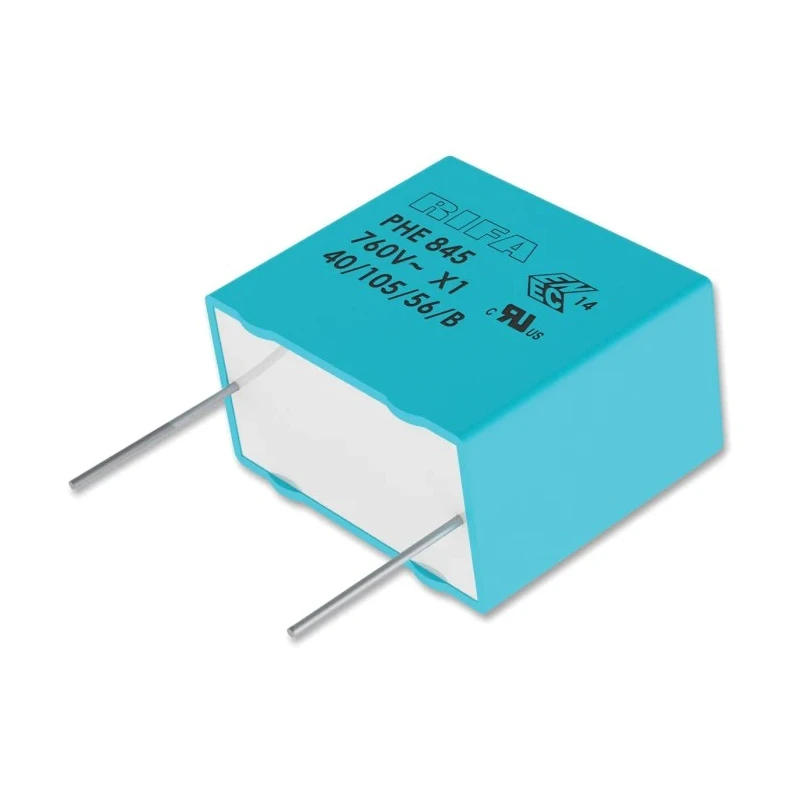

KEMET Film Capacitor X1 Through Hole 220 nF 1.5 kV dc 760 V ac ±20 % PHE845
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 24.5mm |
| Length | 26mm |
| Model | PHE845 |
| Width | 15.5mm |
| Mount Type | Through Hole |
| Series | PHE845 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 0.6% |
| Lead Length | 30mm |
| Package/Case | D19 |
| Pin Count | 2 |
| Rated AC Voltage | 760V ac |
| Rated DC Voltage | 1.5kV dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Suppression Class | X1 |
Key Features
- Designed for EMI suppression and interference reduction in electronic circuits.
- Constructed with metallised polypropylene offering stable performance.
- Encapsulated in a self-extinguishing UL 94 V - 0 compliant material for safety.
- Features radial terminal type and 2-pin configuration for secure PCB mounting.
- Lead pitch of 22.5 mm and lead length of 30 mm facilitates stable through hole mounting.
- Operates reliably between temperatures of -40°C to 105°C.
- Ideal for use in X1 and across the line interference suppression applications.
- Dissipation factor of 0.6 % ensures energy efficiency.
Product Description
KEMET PHE845 Film Capacitor X1, model PHE845, is a precision through hole film capacitor designed to provide reliable EMI interference suppression in electronic circuits. Rated with a capacitance of 220 nF and a tolerance of ±20 %, it supports a rated DC voltage of 1.5 kV and a rated AC voltage of 760 V, making it highly suitable for power electronics and interference filtering.
Manufactured with metallised polypropylene film, this capacitor features triple winding encapsulated in a self-extinguishing material compliant with UL 94 V - 0 standards to ensure safety and performance under varying electrical conditions.
The radial terminal design and lead pitch of 22.5 mm with lead length of 30 mm facilitate secure in-circuit mounting, providing robust mechanical stability. It has a pin count of 2 and lead diameter of 0.8 mm, dimensions that enable compatibility with a wide range of printed circuit board layouts.
Operational across a temperature range of -40°C to 105°C, it suits demanding industrial and commercial applications requiring consistent performance in harsh environments. Its construction and dissipation factor of 0.6 % guarantee low energy losses and high reliability.
This capacitor is ideal for EMI suppression in X1 category circuits and applications requiring endurance to high voltage and AC conditions, including power supply filters, industrial equipment, and electronic control units.
Through hole mounting type with radial terminals for PCB assembly. Triple-wound metallised polypropylene film ensures durability and capacitance stability. Self-extinguishing encapsulation improves operating safety. Compatible with X1 interference suppression requirements.
Suitable for use in industrial, manufacturing, and electronic assemblies.
Choose KEMET PHE845 Film Capacitor for robust, efficient, and safe EMI suppression in your electronic designs. Explore similar capacitors and components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 220 nF with a tolerance of ±20%.
It has a rated DC voltage of 1.5 kV and a rated AC voltage of 760 V.
This capacitor operates reliably between temperatures of -40°C to 105°C.
The dissipation factor is 0.6%, ensuring low energy losses during operation.
It features a through hole mounting type with radial terminals for secure PCB assembly.
The dimensions are 26 mm in length, 15.5 mm in width, and 24.5 mm in height.
The lead length is 30 mm, and the lead pitch is 22.5 mm.
This model has a pin count of 2.
It is constructed with metallised polypropylene and encapsulated in a self-extinguishing material compliant with UL 94 V - 0 standards.
It is ideal for EMI suppression in X1 category circuits and suitable for power supply filters and industrial equipment.
The terminal type is radial, which facilitates secure mounting on printed circuit boards.
The country of origin for this capacitor is India.
