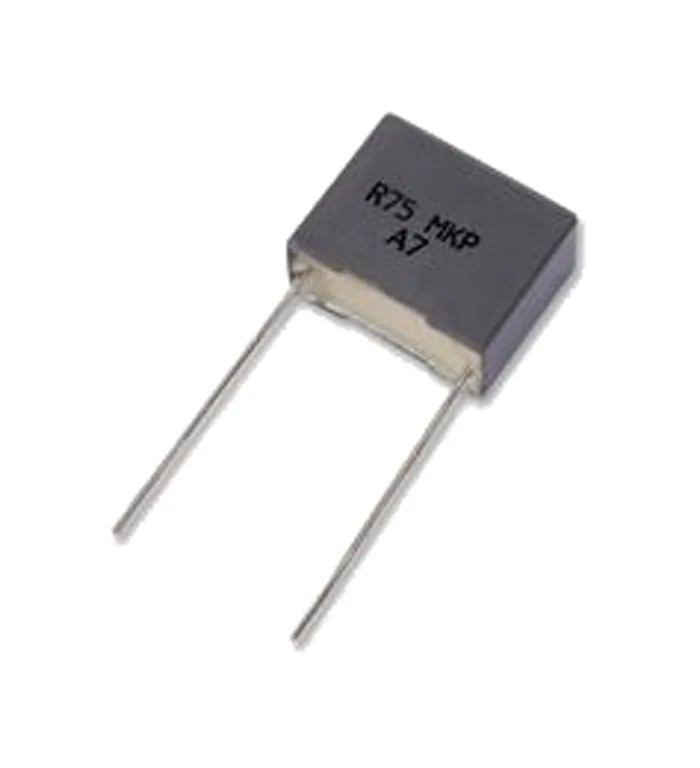

KEMET R75 Film Capacitor ±5% 100 nF 1.6 kV DC 650 V AC Through Hole R75TN31004030J

KEMET R75TN31004030J is a high-quality film capacitor designed for use in industrial, electronic, and power applications requiring reliable performance at high frequencies and voltages.

Constructed using metallized polypropylene film and radial lead tinned wire, this capacitor exhibits excellent self-healing characteristics, enhancing durability in demanding environments.

This through-hole capacitor has a capacitance of 100 nF with a tight ±5% tolerance, supporting rated DC voltage of 1.6 kV and AC voltage of 650 V, making it ideal for high voltage and high frequency circuits.

The device operates over a wide temperature range from -55°C up to 105°C, encapsulated in a self-extinguishing UL94V-0 compliant material for added safety. Its lead pitch is 22.5 mm and leads are 30 mm in length, with a lead diameter of 0.8 mm, facilitating easy PCB integration.

This capacitor is applied extensively in deflection circuits within televisions (for S-correction), as resonant capacitors in electronic ballast and compact lamps, power factor correction circuits, and coupling capacitors in switch mode power supplies (SMPS). It is however not suitable for across-the-line applications.

Constructed from metallized polypropylene film with radial leads for durability and reliability. Wide voltage range from 160 V to 2000 V DC with self-healing properties for extended service life. Encapsulated in UL94V-0 rated self-extinguishing material meeting stringent safety standards.

Designed for use in high-frequency electronic circuits such as televisions, ballasts, and SMPS units. Compliant with RoHS and IEC 60286-2 standards, ensuring environmental and quality compliance. Lead pitch of 22.5 mm and lead length of 30 mm supports through-hole PCB mounting.

Operating temperature from -55°C to 105°C suits diverse environmental conditions.

This KEMET R75 Series film capacitor provides dependable capacitance performance with a dissipation factor of 0.04%, suitable for high frequency and power electronics applications.
