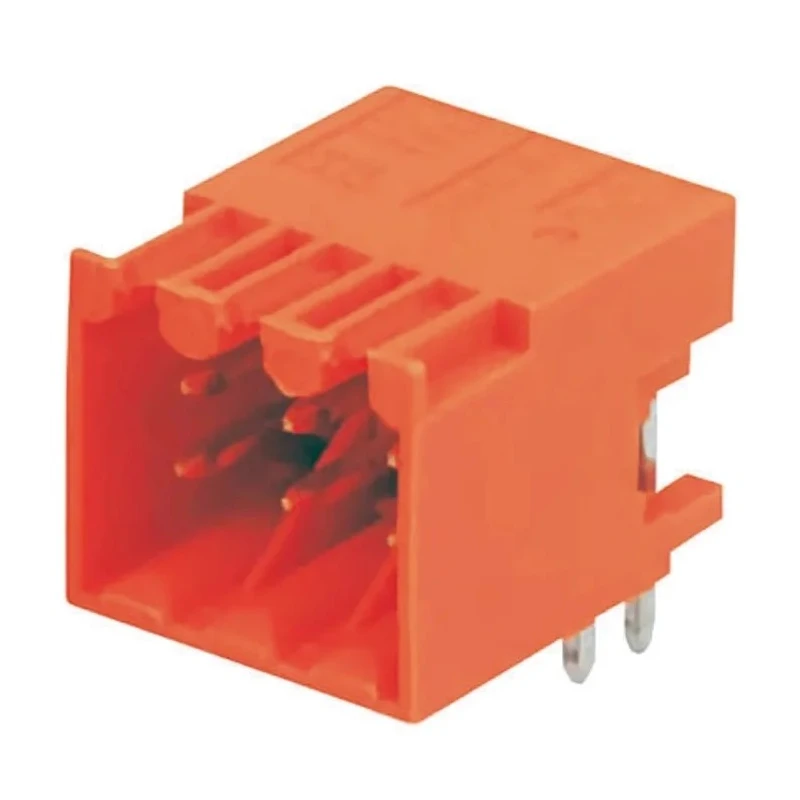

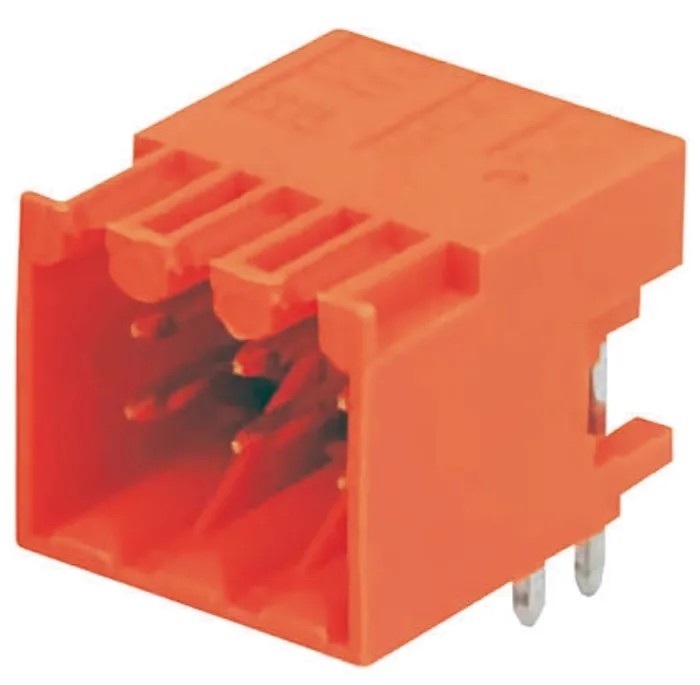

Weidmüller Pluggable Terminal Block 8-Contact 3.5 mm Pitch 2 Row 250V 10A Polybutylene Terephthalate Housing 1727840000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 10A |
| Length | 10.5mm |
| Depth | 14.2mm |
| Width | 15.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | OMNIMATE S2L |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | UL, RoHS |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- The housing is made of durable polybutylene terephthalate, ensuring strong insulation and mechanical stability.
- This connector features a male, right-angle orientation suitable for PCB mounting with solder wire connections.
- It is a double density 2-part PCB connector that saves 30% space compared to traditional pitch connectors.
- No special tooling is required, providing ease of installation and handling.
- The product complies with UL and RoHS standards for safety and environmental compliance.
- The 3.5 mm pitch provides the highest available wiring density for single wires on PCB applications.
- The connector is available in an orange color for clear identification.
- Designed for industrial and electronic PCB applications requiring reliable and compact connections.
Product Description
Weidmüller 1727840000 OMNIMATE S2L Series Pluggable Terminal Block features an 8-contact configuration with a 3.5 mm pitch and 2-row layout, rated for 10 amps current and 250 volts voltage. It is housed in polybutylene terephthalate material providing robust electrical insulation and mechanical durability.
This double density, two-part PCB connector maximizes wiring density while reducing PCB space by approximately 30% compared to connections with 2.5 mm or 2.54 mm pitches.
The connector utilizes solder wire connection and features a male connector gender with a right-angle orientation, making it suitable for direct PCB solder mounting in electronic and industrial applications.
Its screwless design simplifies handling and installation without requiring specialized tools, offering cost and time savings in assembly processes. Conforming to UL safety standards and RoHS compliance, this product ensures reliable, environmentally safe performance.
The 3.5 mm Omnimate range is known for cost-effectiveness and compactness in PCB connector solutions, with mating harness connectors available in tension clamp or rising clamp screw terminals.
Applications include electronics manufacturing, industrial automation interfaces, power connections, and other PCB mounted electrical systems requiring high-density and reliable terminal block connections.
The housing material is polybutylene terephthalate for electrical insulation. The connector is male, right-angled, intended for space-saving PCB layouts. The 8-contact configuration and 3.5 mm pitch support high wiring density.
Rated for 10A current and 250V voltage for moderate electrical applications. Complies with UL and RoHS standards for safety and environmental factors. Solder wire connection method ensures secure electrical contact. The product belongs to the OMNIMATE S2L series recognized for double density connections.
Explore additional Weidmüller connectivity solutions and related industrial electrical components on EnvMart for efficient sourcing and project implementation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block is rated for 250 volts.
It has a current rating of 10 amps.
This connector features an 8-contact configuration.
The pitch size is 3.5 mm, providing high wiring density.
The housing is made of polybutylene terephthalate, which provides strong insulation and mechanical stability.
It features a right-angle orientation suitable for PCB mounting.
The dimensions are 10.5 mm in length, 14.2 mm in depth, and 15.4 mm in width.
It uses a solder wire connection method for secure electrical contact.
Yes, it complies with UL and RoHS standards for safety and environmental compliance.
This terminal block is part of the OMNIMATE S2L series.
No special tooling is required, making installation easy and efficient.
It is suitable for electronics manufacturing, industrial automation interfaces, and other PCB mounted electrical systems requiring reliable connections.
