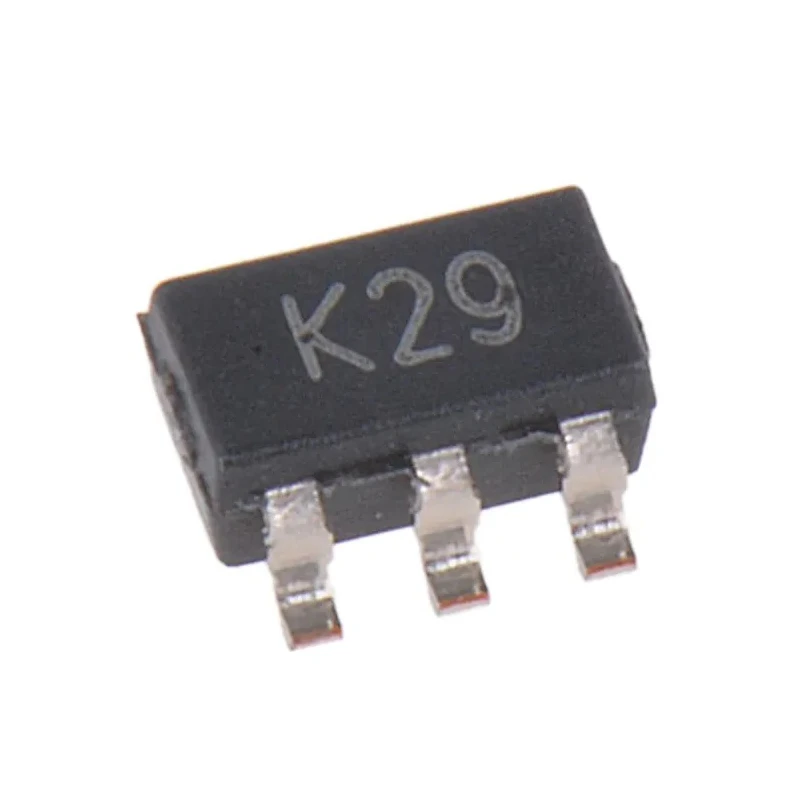

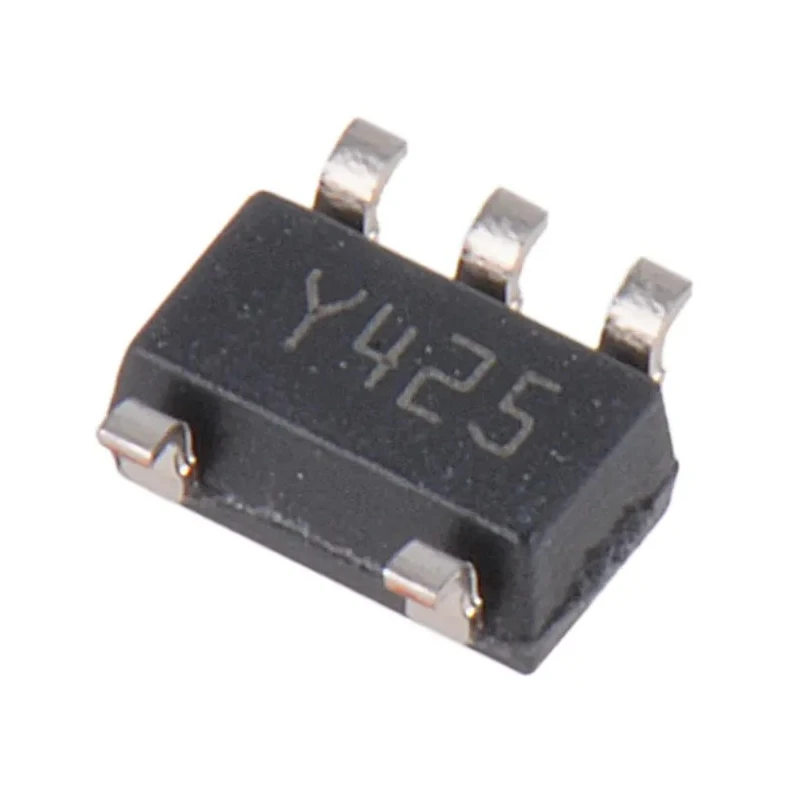

STMicroelectronics Precision Operational Amplifier, 2.7 MHz Gain Bandwidth, 5-Pin SOT-23 Package TSX711ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSX711ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSX711 |
| Output Current | 45mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 2.7MHz |
| Input Bias Current | 200 pA |
| Slew Rate | 1.4V/μs |
| ESD high tolerance | 4 kV (HBM) |
| Low current consumption | 800 μA max |
| Extended temperature range | -40°C to +125°C |
Key Features
- Gain bandwidth product of 2.7 MHz ensures precise amplification.
- Low input offset voltage of 450 μV provides accurate voltage output.
- Wide supply voltage range from 2.7 V to 5.5 V supports versatile applications.
- Low input bias current of 200 pA minimizes signal distortion.
- Slew rate of 1.4 V/μs enables fast response to input changes.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
- Compact SOT-23 package with dimensions 3 mm length, 1.75 mm width, and 1.3 mm height.
- Output current capability of up to 45 mA for driving loads.
Product Description
STMicroelectronics TSX711ILT is a precision operational amplifier designed for high accuracy and reliability in varied electronic applications. Featuring a gain bandwidth product of 2.7 MHz, this amplifier offers efficient signal amplification with low distortion.
The device operates over a wide voltage range from 2.7 V to 5.5 V and includes a low input offset voltage of 450 μV, ensuring stable output in sensitive measurement circuits. With an input bias current as low as 200 pA and a slew rate of 1.4 V/μs, it effectively handles rapid input signal changes with minimal delay.
Packaged in a compact 5-pin SOT-23 form factor, with dimensions of 3 mm in length, 1.75 mm in width, and 1.3 mm in height, it supports surface mount technology for space-efficient PCB layouts. The device also supports an output current of up to 45 mA, enabling it to drive various loads directly.
It operates reliably across a broad temperature range from -40°C to 125°C, making it suitable for industrial and automotive environments. The TSX711ILT meets the AEC-Q100 automotive standard and is RoHS compliant, adhering to environmental regulations.
Gain bandwidth product: 2.7 MHz ensures precise and stable amplification. Low input offset voltage of 450 μV enhances measurement accuracy. Wide supply voltage range from 2.7 V to 5.5 V for flexible powering options. Low input bias current of 200 pA reduces input signal interference.
Slew rate of 1.4 V/μs for rapid response to input changes. Compact 5-pin SOT-23 package suitable for surface mounting. Output current capability up to 45 mA for driving connected components. Automotive standard AEC-Q100 qualified for demanding applications.
Operating temperature range from -40°C to 125°C for harsh conditions. RoHS compliant for environmentally friendly design.
This high-performance operational amplifier is ideal for industrial control systems, automotive electronics, and precision instrumentation. Its robust electrical characteristics and compact package support efficient integration into complex PCB layouts used in manufacturing, measurement, and automotive systems.
Explore more electronic components and Operational Amplifiers for your design projects with EnvMart’s comprehensive selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.7 MHz, ensuring precise amplification.
It has a low input offset voltage of 450 μV, which contributes to accurate voltage output.
This operational amplifier operates over a wide supply voltage range from 2.7 V to 5.5 V.
The TSX711ILT can provide an output current of up to 45 mA for driving loads.
It features a slew rate of 1.4 V/μs, allowing for a fast response to input changes.
This model operates reliably within an extended temperature range of -40°C to 125°C.
The SOT-23 package has dimensions of 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
It has a low input bias current of 200 pA, which minimizes signal distortion.
The TSX711ILT is designed for surface mounting, making it suitable for compact PCB layouts.
This operational amplifier is qualified under the AEC-Q100 automotive standard, making it suitable for automotive applications.
Yes, it is RoHS compliant, adhering to environmental regulations.
The maximum current consumption of the TSX711ILT is 800 μA.
