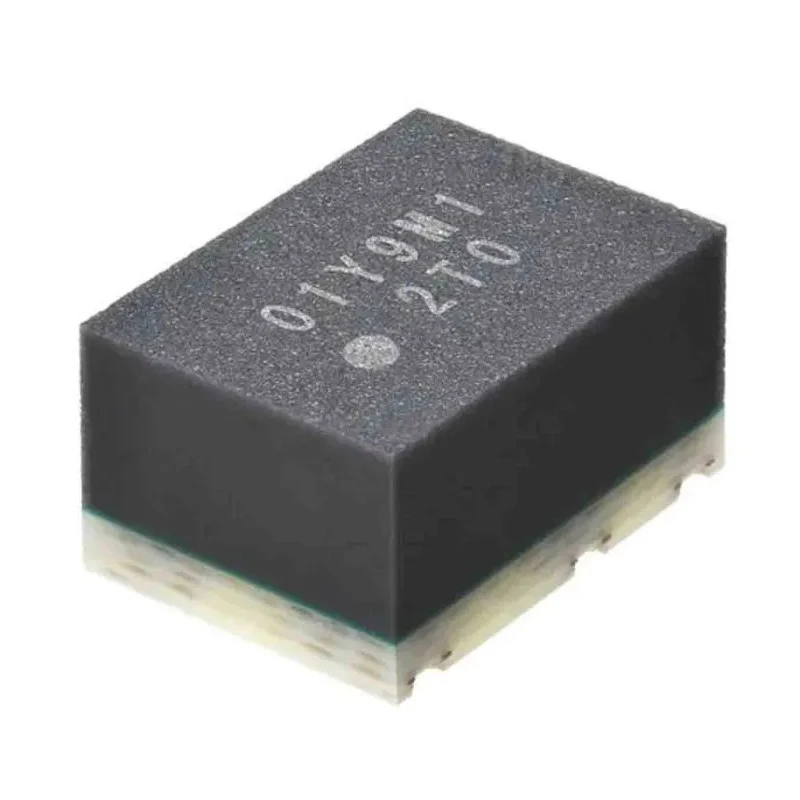

Omron G3VM Series Solid State Relay Surface Mount 200 mA Load 20 V Load 5V Control G3VM

Omron G3VM Series Solid State Relay, model G3VM, is a compact MOSFET relay designed for surface mount applications. It features a maximum load current of 200 mA and load voltage of 20 V with a 5V control voltage range, making it ideal for sensitive electronic circuits where space and efficiency are critical.

The surface mount terminal type contributes to miniaturization of electronic assemblies, while the relay's low leakage current of 1 pA and low on-state resistance of 12 Ω enhance electrical performance and energy efficiency. It supports a wide operating temperature range from -40°C to 125°C, ensuring reliable operation under diverse environmental conditions.

The device utilizes a single-pole, single-throw (SPST) contact configuration with a T-switch function for precise switching control. With capacitance rated at 30 pF, it minimizes noise and maintains signal integrity in high-performance electronics. The relay is RoHS compliant, highlighting its environmentally friendly design.

Measuring 5 mm in length, 3.75 mm in width, and 2.7 mm in height, this solid state relay is well-suited for compact and high-density circuit boards. Manufactured in Japan, it adheres to stringent quality control and industry standards, ensuring durability and performance.

This relay is widely applicable in industrial automation, electronics manufacturing, control systems, and instrumentation, where robust and efficient switching components are essential.

Offers a compact surface mount configuration suitable for space-saving PCB design. Supports maximum load current of 200 mA and maximum load voltage up to 20 V. Utilizes MOSFET output type ensuring low off state leakage current of 1 pA.

Operating temperature range from -40°C to 125°C allows reliable performance in varied environments. Features SPST contact configuration and T-switch function enhancing switching capabilities. Provides low on-state resistance of 12 Ω for efficient electrical performance.

RoHS compliant ensuring adherence to environmental and safety standards. Dimensions of 5 mm length, 3.75 mm width, and 2.7 mm height enable easy mounting. Capacitance of 30 pF aids in signal integrity and noise reduction.

Manufactured in Japan with high-quality standards. Explore the comprehensive range of Solid State Relays at EnvMart for reliable and efficient electronic control solutions.
