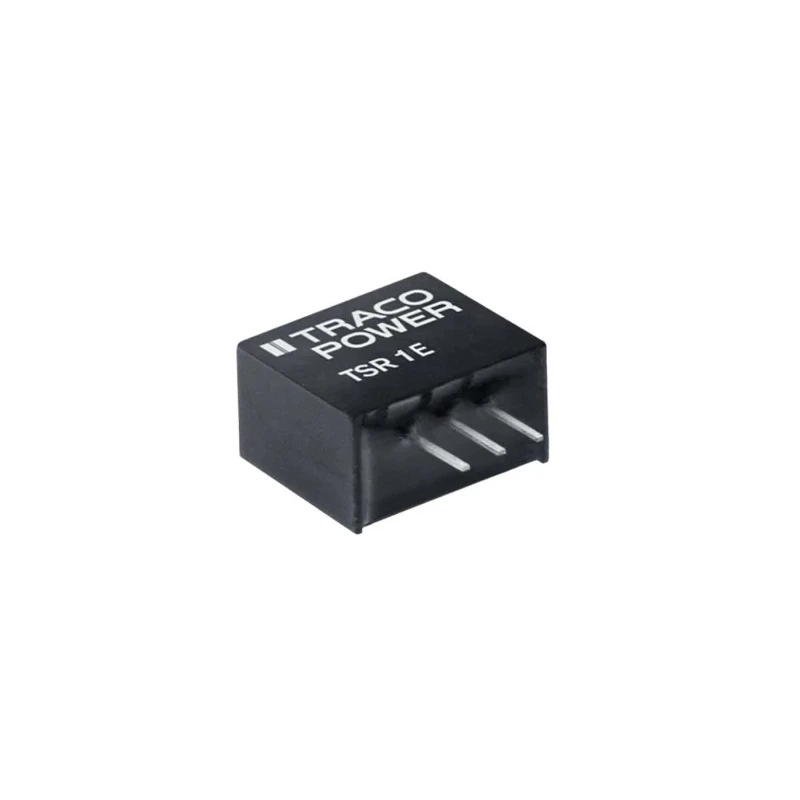

TRACOPOWER DC/DC Converter 5V Output 1A, 7-36V Input Through Hole SIP Package TSR 1-2450E

TRACOPOWER TSR 1-2450E DC/DC Converter is a reliable and efficient non-isolated step-down switching regulator designed to replace traditional linear regulators. Operating with an input voltage range of 7V to 36V DC, it provides a regulated 5V DC output at 1A current, delivering up to 5 watts of power.

Its through-hole mounting in a compact SIP-3 package, with overall dimensions of 11.6mm length, 7.5mm width, and 10.2mm depth, makes it ideal for PCB designs where space optimization is crucial. The device exhibits a high efficiency of 92%, reducing energy loss and heat generation during operation.

Designed for industrial, electronic component, power supply, and transformer applications, the TSR 1-2450E offers superior ripple and noise performance at 80mV peak-to-peak, supporting stable power delivery for sensitive electronics. It operates reliably in temperature environments ranging from -40°C to 85°C, making it suitable for demanding industrial and commercial environments.

This DC/DC converter is RoHS compliant, ensuring environmentally responsible manufacturing practices. It features short circuit protection and excellent line/load regulation to guarantee safety and performance stability.

With an MTBF of 7 million hours, this converter delivers long service life and high operational reliability. The TSR 1E series prioritizes cost efficiency without sacrificing quality, serving as an ideal solution for modern power management designs.

The product is manufactured in China with TRACOPOWER’s quality standards, catering to industrial automation, electronic manufacturing, instrumentation, and various electronic power conversion applications.

The converter supports a wide input voltage from 7V to 36V DC. Maximum output power is 5W with 5V output voltage at 1A current. Efficiency stands at 92% ensuring minimal energy loss. Compact SIP package with dimensions 11.6 x 7.5 x 10.2 mm.

Operating temperature range from -40°C to 85°C for versatile environments. Low ripple and noise rating of 80mV peak-to-peak for clean power output. Features short circuit protection and superior line/load regulation. RoHS compliant for environmental safety.

High reliability with a 7,000,000 hour MTBF rating. Suitable for industrial, laboratory, and electronic manufacturing use cases. Explore more DC/DC Converters and TRACOPOWER products on EnvMart for advanced power management solutions.
