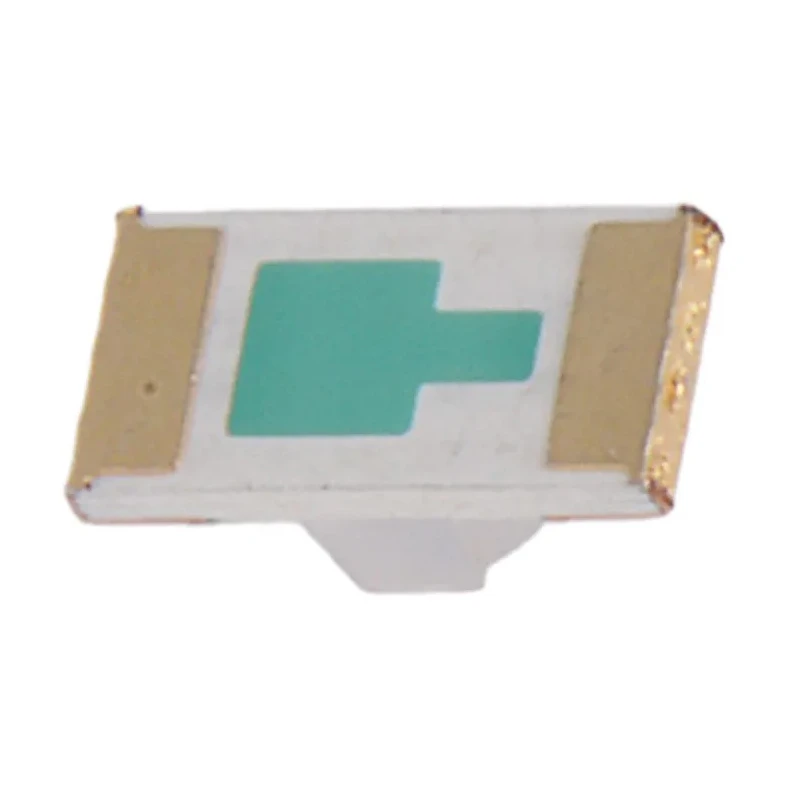

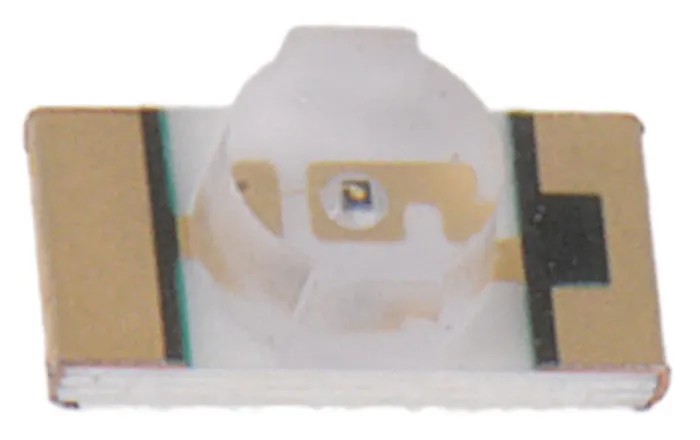

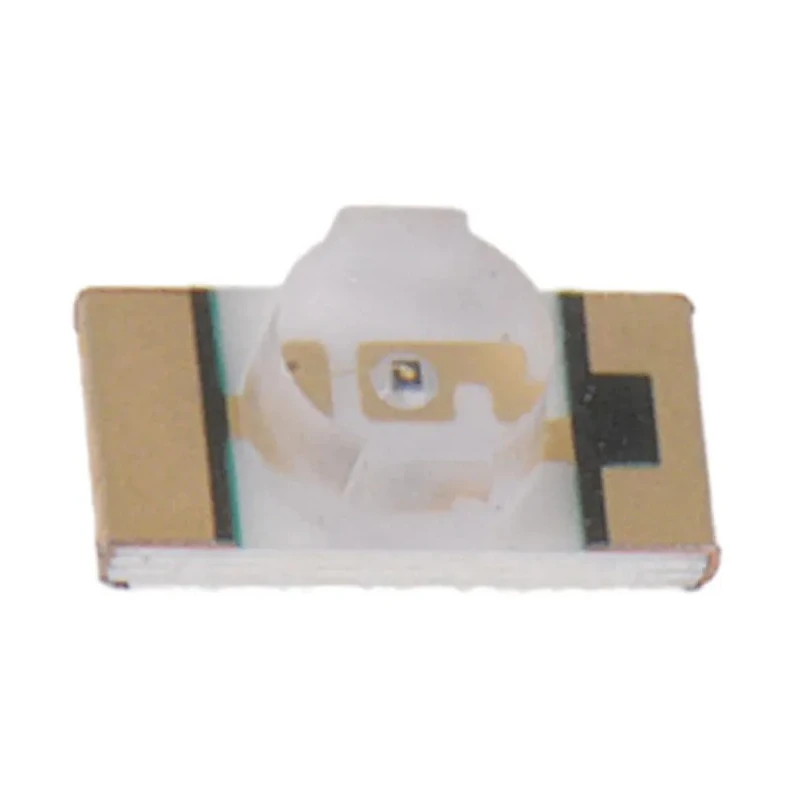

Wurth Elektronik 2 V Red LED 3216 Surface Mount WL-SMRW with 140° Viewing Angle 156120RS75300
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156120RS75300 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRW |
| Maximum forward current | 100mA |
| Viewing angle | 140 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 624nm |
| Forward Voltage | 2V |
| Number of Pins | 2 |
| LED Luminosity | 60 mcd |
| Maximum Power Dissipation | 60mW |
| Lens Dimensions | 3.2 x 1.6 x 1.2 mm |
| Lens Shape | Round |
Key Features
- Compact 3216 (1206) SMD surface mount package for space-efficient PCB design.
- Operates at 2 V forward voltage and supports up to 100 mA forward current.
- Water-clear round lens measuring 3.2 x 1.6 x 1.2 mm with a 140° viewing angle.
- Luminous intensity of 60 mcd with dominant wavelength of 624 nm for bright red light.
- RoHS compliant and manufactured in China, supplied in tape & reel packaging.
Product Description
Wurth Elektronik 156120RS75300 is a red LED designed for surface mounting in compact 3216 (1206) SMT packages. Operating at a forward voltage of 2 V and maximum power dissipation of 60 mW, this LED efficiently produces a luminous intensity of 60 mcd from a water-clear lens with a wide 140° viewing angle. Its low-profile round lens measures 3.2 x 1.6 x 1.2 mm, making it ideal for applications requiring space-saving and high visibility.
This WL-SMRW series LED is reverse mount compatible, allowing it to be mounted on the PCB’s reverse side, which can optimize assembly options and board layouts. It supports a maximum forward current of 100 mA to maintain bright, consistent illumination with minimal energy consumption.
The LED is RoHS compliant and manufactured in China, supplied in tape and reel packaging that supports high-volume production with automatic placement machinery. It is suitable for use in electronic indicators, switch illumination, indoor and outdoor message displays, industrial control systems, traffic signals, and decorative lighting projects.
The wide viewing angle of 140° allows for broad area illumination, and the dominant wavelength of 624 nm provides a clean, strong red hue suitable for diverse optical signaling applications.
Compact 3216 SMD package designed for surface mount technology. Maximum forward current of 100 mA for high brightness performance. Power dissipation up to 60 mW ensures reliability in continuous operation. Water-clear lens with round shape and precise dimensioning enables focused red light output.
Compliance with RoHS environmental standards.
This LED is a versatile component for industrial, electronics manufacturing, automotive indicator systems, and HVAC control panels. Browse more Wurth Elektronik LEDs and related components on EnvMart for comprehensive electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this red LED is 2 V.
This LED supports a maximum forward current of 100 mA.
The luminous intensity of this model is 60 mcd.
The lens dimensions are 3.2 x 1.6 x 1.2 mm.
The viewing angle of this LED is 140 °.
This LED is supplied in tape and reel packaging.
Yes, this LED is RoHS compliant.
The dominant wavelength of the emitted light is 624 nm.
The maximum power dissipation for this model is 60 mW.
This LED is designed for surface mounting.
This LED is suitable for electronic indicators, switch illumination, and traffic signals, among other applications.
This LED belongs to the WL-SMRW series.
