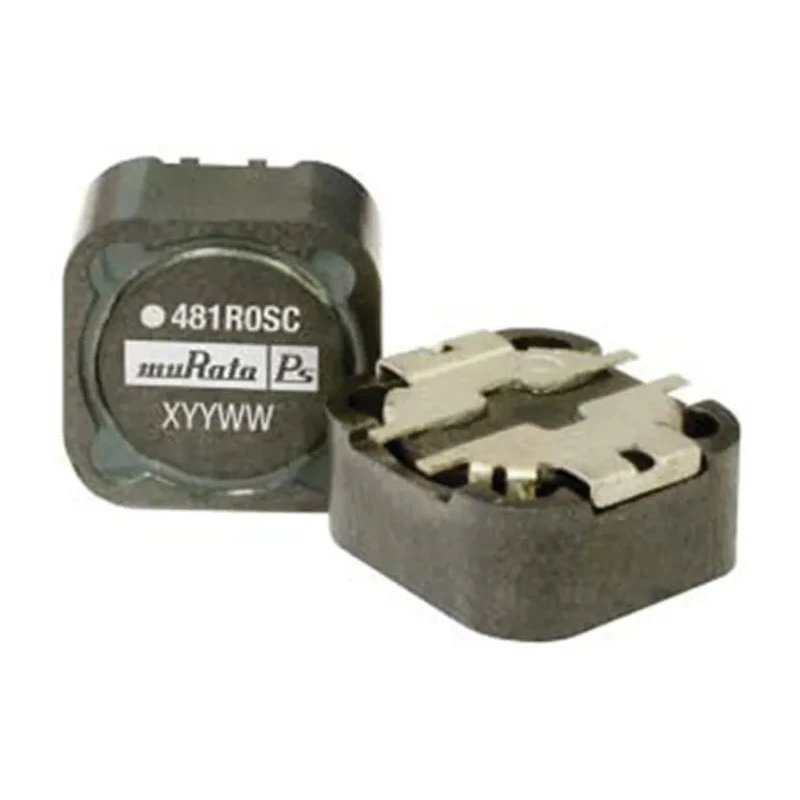

Murata Power Solutions 4800S Series 48100SC Shielded Wirewound Surface Mount Inductor 10μH ±20% 4.5A Idc Q:32 48100SC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Height | 6mm |
| Length | 12.2mm |
| Model | 48100SC |
| Depth | 12.2mm |
| Packaging | Tape & Reel |
| Series | 4800S |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 48100SC |
| Maximum DC Current | 4.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 28mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 20MHz |
| Minimum Quality Factor | 32 |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a compact 12.2mm length, 12.2mm depth, and 6mm height.
- It is designed for switching power supplies and power line filter circuits requiring high saturation current.
- The integral ferrite shield reduces EMI for enhanced performance.
- Tape & Reel packaging supports efficient automated assembly.
- The device operates within −40°C to 85°C temperature range.
- It is RoHS compliant with solder termination style suitable for surface mount technology.
- The inductor construction is bobbin wound and moulded, ensuring durability.
- Maximum DC resistance is 28mΩ, with a minimum quality factor of 32 at 20MHz frequency.
Product Description
Murata Power Solutions model 48100SC is a shielded wirewound surface mount inductor from the 4800S series. It offers 10μH inductance with a ±20% tolerance and supports a maximum DC current of 4.5A, making it suitable for high saturation current requirements in switching power supply and power line filter circuits.
This inductor measures 12.2mm in length and depth, and 6mm in height, packaged in a compact surface mount tape and reel format designed for efficient manufacturing processes. Its integral ferrite shield effectively reduces electromagnetic interference (EMI), improving circuit noise performance.
The device operates reliably across a temperature range from −40°C up to 85°C, complying with RoHS environmental standards. The bobbin-wound wirewound construction is moulded for enhanced mechanical stability and durability.
With a maximum DC resistance of just 28mΩ and a minimum quality factor of 32 at a maximum self-resonant frequency of 20MHz, the 48100SC is optimized for power electronics demanding low losses and reliable filtering.
The inductor includes two pins with solder termination style and is manufactured in China.
This component is ideal for industrial electronics applications, including power management, DC/DC converters, and EMI mitigation in compact electronic assemblies. Its low profile and high current capacity make it favored in advanced electronic systems requiring efficient power filtering and noise suppression.
This inductor features a compact 12.2mm length, 12.2mm depth, and 6mm height. It is designed for switching power supplies and power line filter circuits requiring high saturation current. The integral ferrite shield reduces EMI for enhanced performance.
Tape & Reel packaging supports efficient automated assembly. The device operates within −40°C to 85°C temperature range. It is RoHS compliant with solder termination style suitable for surface mount technology. The inductor construction is bobbin wound and moulded, ensuring durability.
Maximum DC resistance is 28mΩ, with a minimum quality factor of 32 at 20MHz frequency. The component has 2 pins and is manufactured in China. For additional Murata Power Solutions components in the Surface Mount Inductors category, browse EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The 48100SC inductor has an inductance value of 10μH with a tolerance of ±20%.
This model supports a maximum DC current of 4.5A, making it suitable for high saturation current applications.
The inductor measures 12.2mm in length, 12.2mm in depth, and 6mm in height.
The maximum DC resistance of the 48100SC is 28mΩ, which contributes to its efficiency in power applications.
It operates reliably within a temperature range of −40°C to 85°C.
The 48100SC features a wirewound construction that is moulded for enhanced mechanical stability.
The minimum quality factor for the 48100SC at 20MHz is 32, indicating its performance in filtering applications.
It is packaged in a Tape & Reel format, which supports efficient automated assembly processes.
Yes, this inductor is RoHS compliant, ensuring it meets environmental regulations.
This inductor is designed for use in switching power supplies and power line filter circuits.
The maximum self-resonant frequency of this inductor is 20MHz, which is important for its performance in high-frequency applications.
The 48100SC has 2 pins with a solder termination style suitable for surface mount technology.
