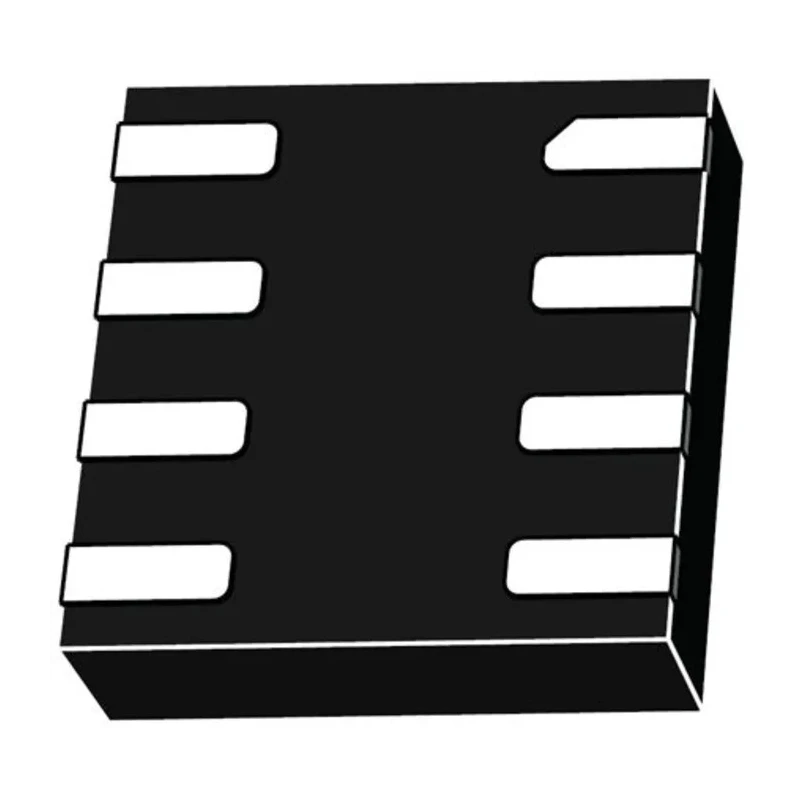

STMicroelectronics Operational Amplifier 8 kHz Gain Bandwidth, 8-Pin DFN Package TSU102IQ2T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.75mm |
| Length | 2mm |
| Model | TSU102IQ2T |
| Width | 2mm |
| Mount Type | Surface |
| Series | TSU102 |
| Output Current | 4mA |
| Maximum Operating Temperature | 85°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.5V |
| GBP - Gain Bandwidth Product | 8kHz |
| Input Bias Current | 30 pA |
| Vos - Input Offset Voltage | 3.4 mV |
| Slew Rate | 3V/ms |
| Gain bandwidth product | 8 kHz typical |
Key Features
- Low input offset voltage of 3.4 mV ensures precision performance.
- Operates with minimum supply voltage of 1.5 V and maximum of 5.5 V.
- Maximum operating temperature range from -40°C to 85°C.
- Slew rate of 3 V/µs supports fast signal transitions.
- Input bias current of 30 pA minimizes signal distortion.
- Compact dimensions measuring 2 mm length, 2 mm width, and 0.75 mm height.
- Typical output current capability of 4 mA.
- RoHS compliant for environmental safety.
Product Description
The STMicroelectronics TSU102IQ2T is a precision operational amplifier housed in an 8-pin DFN surface mount package designed for compact and efficient circuit integration.
Featuring a typical gain bandwidth product of 8 kHz, it operates over a wide supply voltage range from 1.5 V to a maximum of 5.5 V, making it adaptable to a variety of electronic circuits requiring low power consumption.
This dual channel operational amplifier is well suited for applications in industrial electronics, measurement instrumentation, signal conditioning, and embedded system designs where small size and high reliability are essential.
The device delivers a low input offset voltage of 3.4 mV and a low input bias current of 30 pA, enhancing signal accuracy and minimizing error in precision applications. It supports a slew rate of 3 V/µs, enabling rapid response to input changes for dynamic signals.
Its compact dimensions of 2 mm in length and width, and a height of just 0.75 mm, allow for high-density PCB layouts. The amplifier provides an output current of up to 4 mA, suitable for driving typical loads in sensor and control circuits.
Compliance with RoHS standards ensures the component meets environmental and safety regulations. Low input offset voltage of 3.4 mV ensures precision performance. Operates with minimum supply voltage of 1.5 V and maximum of 5.5 V.
Maximum operating temperature range from -40°C to 85°C. Slew rate of 3 V/µs supports fast signal transitions. Input bias current of 30 pA minimizes signal distortion. Compact dimensions measuring 2 mm length, 2 mm width, and 0.75 mm height.
Typical output current capability of 4 mA. RoHS compliant for environmental safety. Dual channel amplifier design suitable for various electronic applications.
This operational amplifier is ideal for use in industrial automation, audio electronics, signal processing, and embedded control systems. Explore the STMicroelectronics range of semiconductor devices and Operational Amplifiers on EnvMart for advanced electronics projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSU102IQ2T has a typical gain bandwidth product of 8 kHz.
It operates with a minimum supply voltage of 1.5 V and a maximum of 5.5 V.
The maximum operating temperature for the TSU102IQ2T is 85°C.
It features a low input offset voltage of 3.4 mV, enhancing precision performance.
The slew rate of the TSU102IQ2T is 3 V/µs, supporting fast signal transitions.
This model measures 2 mm in length, 2 mm in width, and 0.75 mm in height.
The typical output current capability of the TSU102IQ2T is 4 mA.
It has a low input bias current of 30 pA, which minimizes signal distortion.
This operational amplifier is housed in an 8-pin DFN surface mount package.
Yes, it is RoHS compliant, ensuring it meets environmental and safety regulations.
This operational amplifier features a dual channel design, providing two channels for operation.
It is suitable for applications in industrial electronics, measurement instrumentation, signal conditioning, and embedded system designs.
