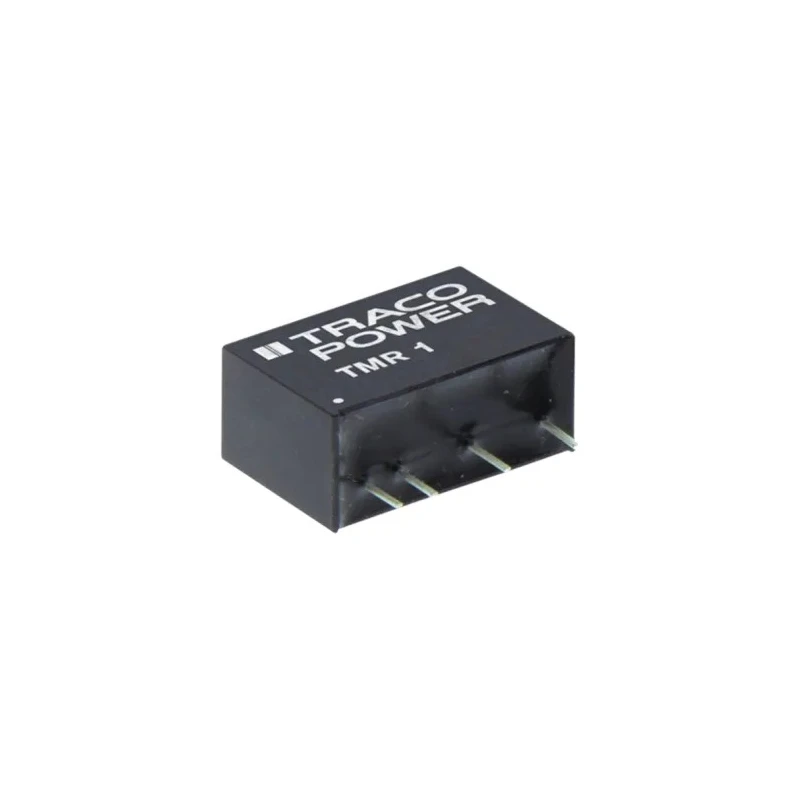

TRACOPOWER DC/DC Converter 12V dc 42 mA Input 9 - 18V dc 1 W Through Hole SIP-6 Package TMR 1-1222
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 1 DC/DC Converter, 12V dc/ 42 mA, 1 |
| Brand | TRACOPOWER |
| Efficiency | 78% |
| Length | 17mm |
| Model | TMR 1-1222 |
| Depth | 7.62mm |
| Mount Type | Through Hole |
| Series | TMR 1 |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP-6 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V dc |
| Wide 2 | 1 input voltage range |
Key Features
- Dual output voltages of +12 V dc and -12 V dc with 42 mA output current.
- Through hole SIP-6 package with 5 pins for easy PCB mounting.
- High isolation voltage of 1500 V dc for safety and noise reduction.
- Operating temperature range from -40 °C to 95 °C for industrial applications.
- Efficiency rating of 78% ensures low power loss during operation.
- Mean time between failures (MTBF) of 2,800,000 hours indicating high reliability.
- Short circuit protected output to avoid damage in fault conditions.
- No minimum load required for stable regulation across load range.
Product Description
TRACOPOWER TMR 1-1222 DC/DC Converter is a fully regulated, isolated 1 W power supply module designed for use in demanding industrial and electronic applications. This compact device provides dual outputs of +12 V and -12 V dc at an output current of 42 mA supplied from a wide input voltage range of 9 to 18 V dc. The module is housed in a SIP-6 through hole package, facilitating robust PCB mounting and integration.
The TMR 1-1222 features a high isolation voltage of 1500 V dc that protects circuits from voltage spikes and ensures noise-free operation. The operating temperature range of -40 °C to 95 °C makes it suitable for harsh industrial and environmental conditions. With an efficiency of 78%, this DC/DC converter delivers reliable power conversion with minimal heat generation.
Designed with a mean time between failures (MTBF) of over 2.8 million hours, this converter promises excellent long-term reliability. It requires no minimum load to maintain regulation and includes short-circuit protection to prevent damage during fault conditions. Its 5-pin configuration supports easy installation and stable electrical connection.
Typical applications for the TRACOPOWER TMR 1-1222 include industrial control systems, measurement instruments, medical equipment, telecommunications, and embedded computing where low power isolated DC/DC conversion is required.
Wide 2:1 input voltage range from 9 V to 18 V dc. Fully regulated dual outputs of +12 V and -12 V dc at 42 mA. Through hole SIP-6 package type with 5 pins. Isolation voltage rating of 1500 V dc for enhanced safety. Extended operating temperature range from -40 °C to 95 °C.
High efficiency of 78% reduces thermal dissipation. Long MTBF of 2,800,000 hours indicates rugged design. No minimum load requirement for stable output voltages. Includes short circuit protection for output safety.
This product is manufactured in Taiwan, Province Of China, and supplied new from TRACOPOWER, a well-known brand in power conversion solutions. Ideal for use in electronic, industrial, laboratory, and telecommunications environments, it meets the needs for compact, reliable isolated power modules. Explore EnvMart's comprehensive selection of DC/DC Converters and related electronic components for your projects and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TRACOPOWER TMR 1-1222 DC/DC converter is from 9 V to 18 V dc.
This model provides dual outputs of +12 V dc and -12 V dc, with an output current of 42 mA.
The efficiency rating of the TMR 1-1222 is 78%, which helps to reduce thermal dissipation during operation.
The isolation voltage of this converter is rated at 1500 V dc, ensuring safety and noise reduction.
The operating temperature range for the TMR 1-1222 is from -40 °C to 95 °C, suitable for harsh industrial conditions.
This model is designed for through hole mounting and features a SIP-6 package with 5 pins for easy PCB integration.
The mean time between failures (MTBF) for the TMR 1-1222 is 2,800,000 hours, indicating high reliability.
No, the TMR 1-1222 does not require a minimum load to maintain stable output voltages across its load range.
This unit includes short-circuit protection to prevent damage during fault conditions.
The dimensions of this model are 17 mm in length and 7.62 mm in depth.
Typical applications for this converter include industrial control systems, measurement instruments, medical equipment, telecommunications, and embedded computing.
This product is manufactured in Taiwan, Province Of China.
