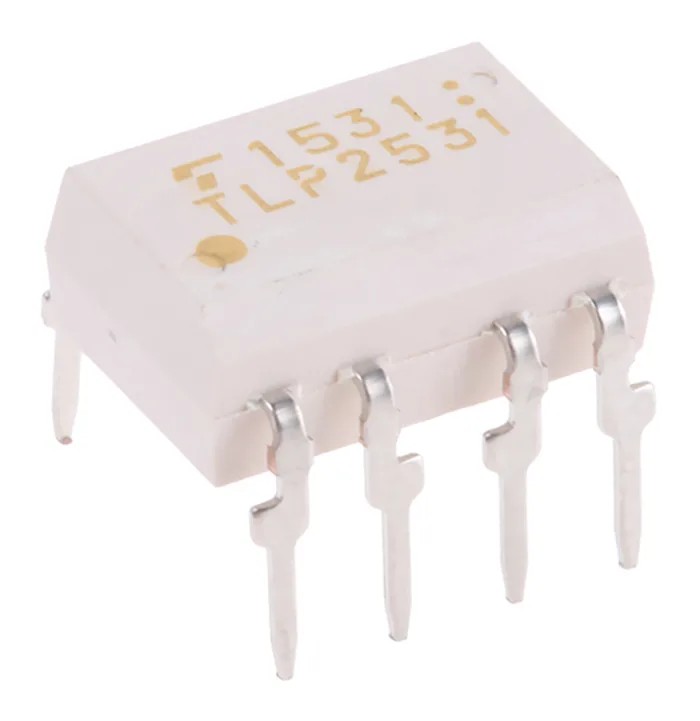

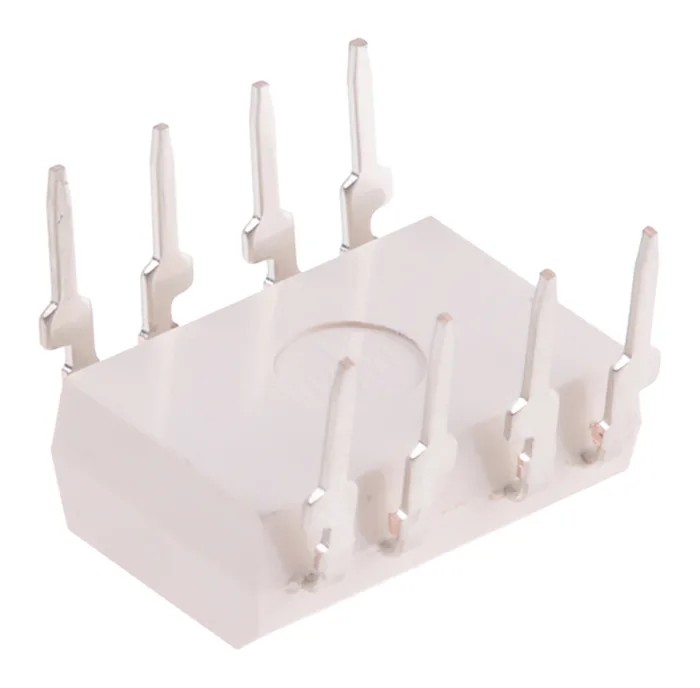

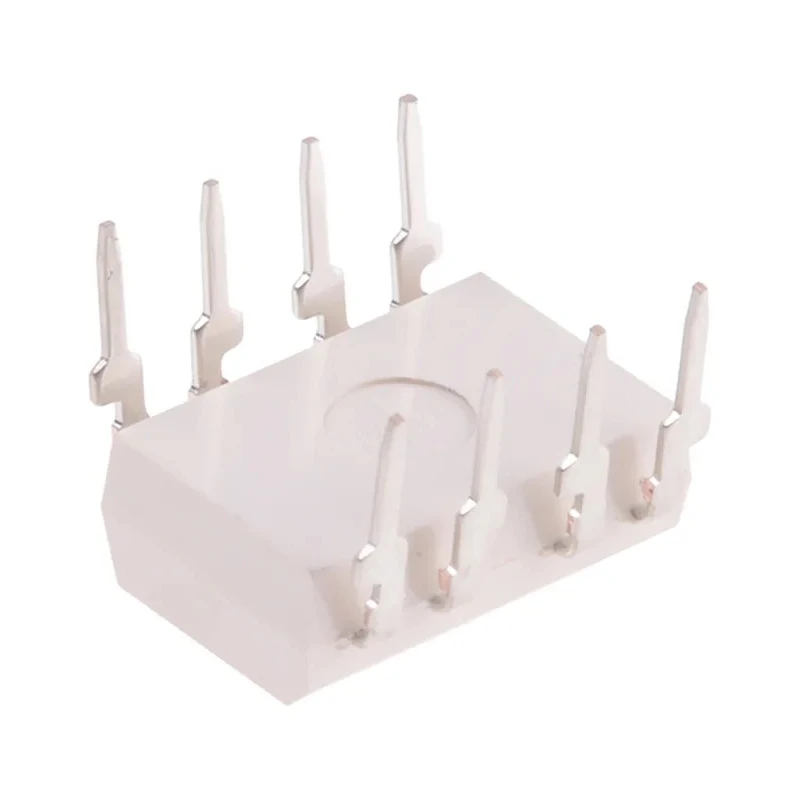

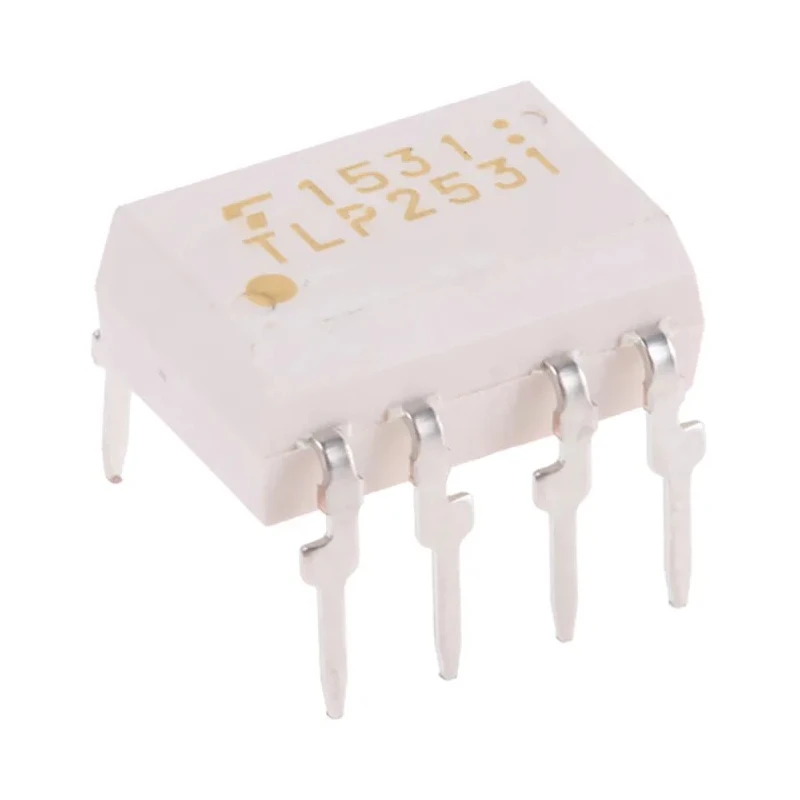

Toshiba DC Input 2-Channel Optocoupler Through Hole 8-Pin DIP TLP2531(F)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP2531(F) |
| Mount Type | Through Hole |
| Series | TLP |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 0.3μs |
| Maximum Current Transfer Ratio | 30% |
| Minimum Current Transfer Ratio | 0.19% |
Key Features
- Features a dual channel transistor output configuration.
- Supports DC input current type with maximum forward voltage of 1.7V.
- Provides electrical isolation voltage of 2.5 kVrms for safety.
- Operates in a wide temperature range from -55°C to 100°C.
- Typical rise and fall times of 0.3 microseconds ensure fast switching.
- Maximum input current rated at 25mA.
- Maximum current transfer ratio of 30% ensures efficient signal transmission.
- Complies with UL standards for quality and safety assurance.
Product Description
Toshiba TLP2531(F) DC Input 2-Channel Optocoupler is a through hole mounted device housed in an 8-pin DIP package designed to provide electrical isolation between input and output circuits. It features dual transistor outputs for driving various electronic loads with effective isolation.
This optocoupler supports a DC input current type and delivers a maximum forward voltage of 1.7V, ensuring low power consumption. The device operates over a broad temperature range from -55°C to 100°C, suitable for diverse industrial environments.
Typical rise and fall times of 0.3 microseconds enable fast switching performance, enhancing signal integrity in communication and control systems. It can withstand an isolation voltage of 2.5 kVrms, protecting against high voltage surges and noise.
The maximum input current is rated at 25mA with a maximum current transfer ratio of 30% and a minimum of 0.19% at the input-output interface. Certified to UL standards, this optocoupler assures reliable operation and safety compliance.
Applications include industrial automation, instrumentation, electrical isolation in signal transmission, and general purpose optoelectronic switching. The 8-pin DIP package supports through hole mounting for easy integration into PCBs and machinery.
Features a dual channel transistor output configuration. Supports DC input current type with maximum forward voltage of 1.7V. Provides electrical isolation voltage of 2.5 kVrms for safety. Operates in a wide temperature range from -55°C to 100°C.
Typical rise and fall times of 0.3 microseconds ensure fast switching. Maximum input current rated at 25mA. Maximum current transfer ratio of 30% ensures efficient signal transmission. Complies with UL standards for quality and safety assurance.
Package type is standard 8-pin DIP suitable for through-hole assembly. Ideal for industrial and electronic control applications requiring reliable isolation. Explore the Toshiba Optocoupler range in the Electronics Components category at EnvMart for versatile optoelectronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is rated at 25mA.
It provides an electrical isolation voltage of 2.5 kVrms for safety.
This optocoupler operates over a wide temperature range from -55°C to 100°C.
The typical rise time for this model is 0.3 microseconds.
It features a dual channel transistor output configuration, meaning it has 2 channels.
The maximum forward voltage supported by the TLP2531(F) is 1.7V.
This model is designed for through hole mounting and comes in an 8-pin DIP package.
The maximum current transfer ratio for this optocoupler is 30%.
It complies with UL standards for quality and safety assurance.
This optocoupler is suitable for applications in industrial automation, instrumentation, and electrical isolation in signal transmission.
The minimum operating temperature for this model is -55°C.
The TLP2531(F) has a total of 8 pins.
