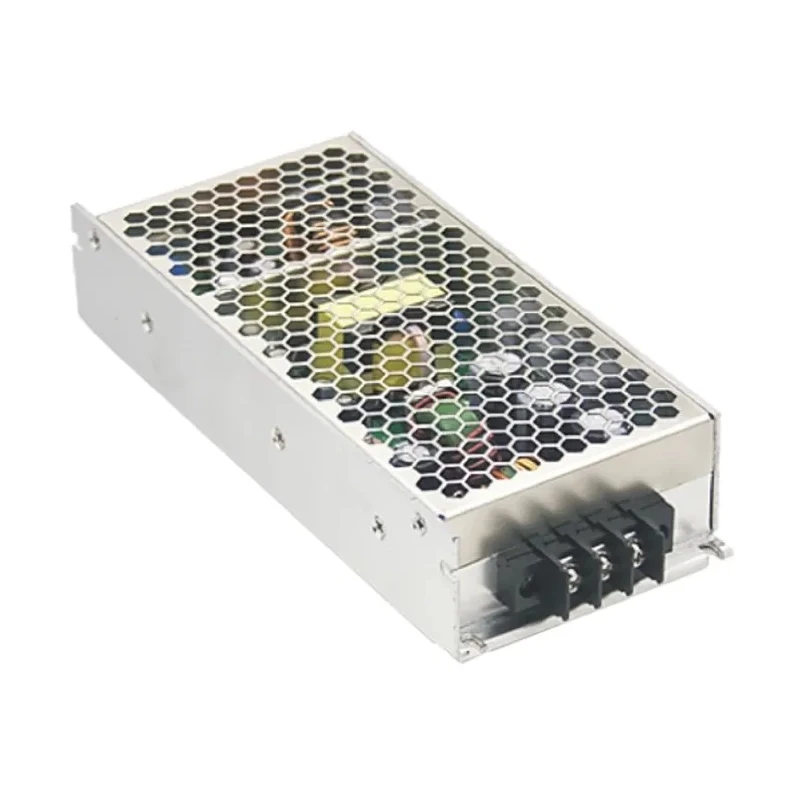

MEAN WELL 200W Railway Certified Regulated Isolated DC-DC Converter 48V dc Input 4.2A Chassis Mount RSD-200C-48
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD 200 DC/DC Converter, 48V dc/, 48V dc |
| Brand | MEAN WELL |
| Efficiency | 91% |
| Length | 191mm |
| Model | RSD-200C-48 |
| Depth | 40mm |
| Gross Weight | 940g |
| Width | 40mm |
| Mount Type | Chassis |
| Series | RSD 200 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 218200h |
| Number of outputs | 1 |
| Ripple and Noise | 180mV Pk-Pk |
| Maximum Output Power | 201.6W |
| Maximum Input Voltage | 48V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 33.6V |
| Output Voltage 1 | 48V dc |
| Output Current 1 | 4.2A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Offers 201.6W maximum output power for reliable performance.
- High efficiency up to 91% reduces heat dissipation.
- Built-in protections including short circuit, overload, overvoltage and over temperature.
- Operating temperature range from -40°C to 70°C suitable for harsh environments.
- Complies with railway certifications EN50155, IEC60571, IEC61373, and EN50121-3-2.
- Semi-encapsulated construction offers PCB protection and 4000V DC isolation.
- LED power on indicator and 5G anti-vibration capability enhance usability.
- Compact 191 x 40 x 40 mm chassis mount form factor.
Product Description
MEAN WELL RSD-200C-48 is a 200W railway certified regulated isolated DC-DC converter designed for industrial and transportation applications requiring stable and isolated power supply solutions. Featuring a wide 2:1 input voltage range (33.6V to 48V DC), it provides a regulated 48V DC output with a maximum current of 4.2A. The device is built to meet stringent EN50155, IEC60571, IEC61373, and EN50121-3-2 standards, making it ideal for railway and vehicle power systems.
The chassis mount enclosure and semi-encapsulation protect the PCB against mechanical and environmental stresses, while the robust 4000V DC isolation voltage ensures safety and reliability in demanding industrial environments. Its high efficiency rating of up to 91% minimizes energy loss and heat generation, enabling convection cooling without fans.
Operating in a wide temperature range from -40°C to 70°C, the RSD-200C-48 is suitable for harsh conditions. The converter includes built-in short circuit, overload, over voltage, and over temperature protections to safeguard downstream equipment. An LED indicator provides clear power-on status, and the device withstands high vibration levels up to 5G, ensuring mechanical durability.
Compact dimensions of 191mm length by 40mm width and depth allow easy integration into control panels and enclosures. With a mean time between failures (MTBF) of 218,200 hours, this DC-DC converter is engineered for long-term reliability in transportation, industrial automation, and railway power conversion applications.
201.6W maximum output power ensures stable supply for critical loads. Wide 2:1 input voltage ratio supports 33.6V to 48V DC sources. Compliant with major railway and industrial safety and vibration standards. High 4000V DC isolation protects sensitive electronics.
Semiencapsulated, chassis mount design with LED power indicator. Extended operating temperature range from -40°C to 70°C. Multiple protection features safeguard against faults. High efficiency up to 91% for energy savings.
Compact form factor fits diverse industrial installations.
This MEAN WELL DC-DC converter suits industrial, railway, transportation, and automation system power supply needs perfectly. Browse the full MEAN WELL portfolio and related DC/DC Converters on EnvMart for comprehensive power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 201.6W.
It operates within a wide input voltage range of 33.6V to 48V DC.
The dimensions are 191mm in length, 40mm in width, and 40mm in depth.
The efficiency rating is up to 91%, which helps reduce heat dissipation.
It can operate in temperatures ranging from -40°C to 70°C.
This unit includes protections against short circuit, overload, overvoltage, and over temperature.
The isolation voltage is rated at 4000V DC.
The output current is rated at 4.2A.
It complies with EN50155, IEC60571, IEC61373, and EN50121-3-2 standards.
The gross weight of the RSD-200C-48 is 940g.
It features a chassis mount design.
The ripple and noise is specified at 180mV peak-to-peak.
