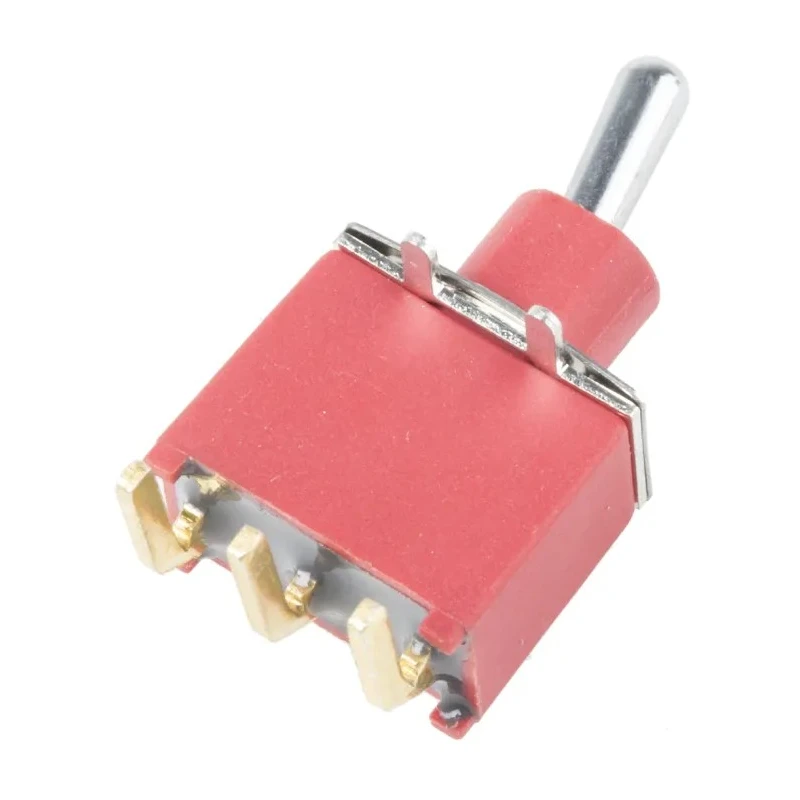

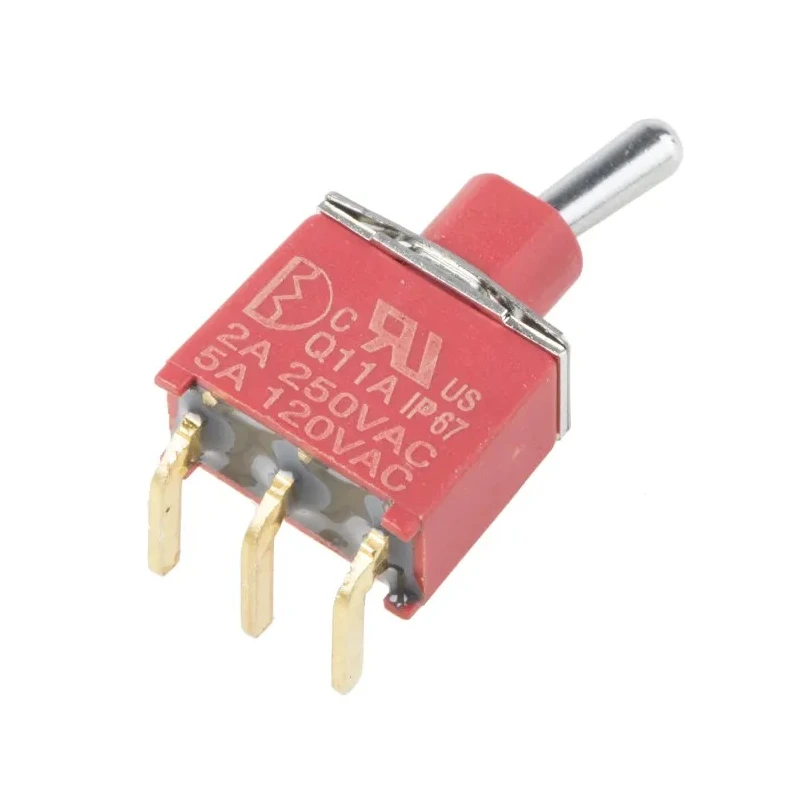

RS PRO PCB Mount Toggle Switch, On-On, SPDT, Through Hole Terminal, 12 V DC, 112 V AC 7346971P

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Mount Toggle Switch, On-On, SPDT, Through Hole Terminal, 12 V DC, 112 V AC 7346971P

Name: RS PRO PCB Mount Toggle Switch, On-On, SPDT, Through Hole Terminal, 12 V DC, 112 V AC 7346971P
Brand: RS PRO
SKU: 408773
Price: 389.46 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	7346971P
IP Rating	IP67
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Standards/Approvals	CSA, UL, RoHS, CE
Switch Operation	On-On
Actuator Length	7.62mm
Contact DC Voltage	12V dc
Switch Contact Current	5A
Mechanical Life	30000Cycles
Contact AC Voltage	112V ac
Actuator Material	Chrome Plated Brass

Key Features

Compact miniature toggle switch with IP67 sealing for robust protection.
Mounts directly onto PCB with through-hole terminal type for secure assembly.
Actuator made of chrome plated brass with a length of 7.62 mm.
Supports a maximum switch contact current of 5 A for reliable electrical control.
Operates in temperatures ranging from -30°C to 85°C ensuring wide environmental tolerance.
Certified to CSA, UL, RoHS, and CE standards for safety and compliance.
Designed for a mechanical life expectancy of up to 30,000 cycles.
Non-illuminated switch suited for industrial and automation applications.

Product Description

RS PRO 7346971P is a high-quality PCB mount toggle switch designed for reliable operation in electrical and automation systems. Featuring a single-pole double-throw (SPDT) On-On switch configuration, this mini toggle switch provides effective control for circuit connections with 12 V DC and 112 V AC ratings.

The switch is IP67 rated, ensuring excellent protection against dust and water ingress, making it suitable for demanding industrial environments. The actuator is crafted from durable chrome plated brass, extending longevity and providing a tactile feel. The through-hole terminal mounting type allows secure installation onto printed circuit boards, facilitating efficient assembly in electronic devices.

With a switch contact current rating of 5 A, it accommodates moderate power loads with low contact resistance. It supports operating temperatures from -30°C to 85°C, covering a broad range of application scenarios including industrial control panels, instrumentation, and HVAC controls.

The switch complies with international standards including CSA, UL, RoHS, and CE, ensuring safety and environmental adherence. Its mechanical life reaches 30,000 cycles, indicating high reliability for repetitive switching tasks.

This toggle switch is non-illuminated and designed for seamless integration into industrial automation, electrical equipment, and consumer electronics requiring compact yet robust switching solutions.

Compact miniature toggle switch with IP67 sealing for robust protection. Mounts directly onto PCB with through-hole terminal type for secure assembly. Actuator made of chrome plated brass with a length of 7.62 mm. Supports a maximum switch contact current of 5 A for reliable electrical control.

Operates in temperatures ranging from -30°C to 85°C ensuring wide environmental tolerance. Certified to CSA, UL, RoHS, and CE standards for safety and compliance. Designed for a mechanical life expectancy of up to 30,000 cycles.

Non-illuminated switch suited for industrial and automation applications.

This RS PRO toggle switch is an ideal choice for use in industrial automation, manufacturing control, instrumentation panels, and electrical equipment where compact, reliable, and rugged switching is essential. Explore more Toggle Switches and electrical components at EnvMart.
