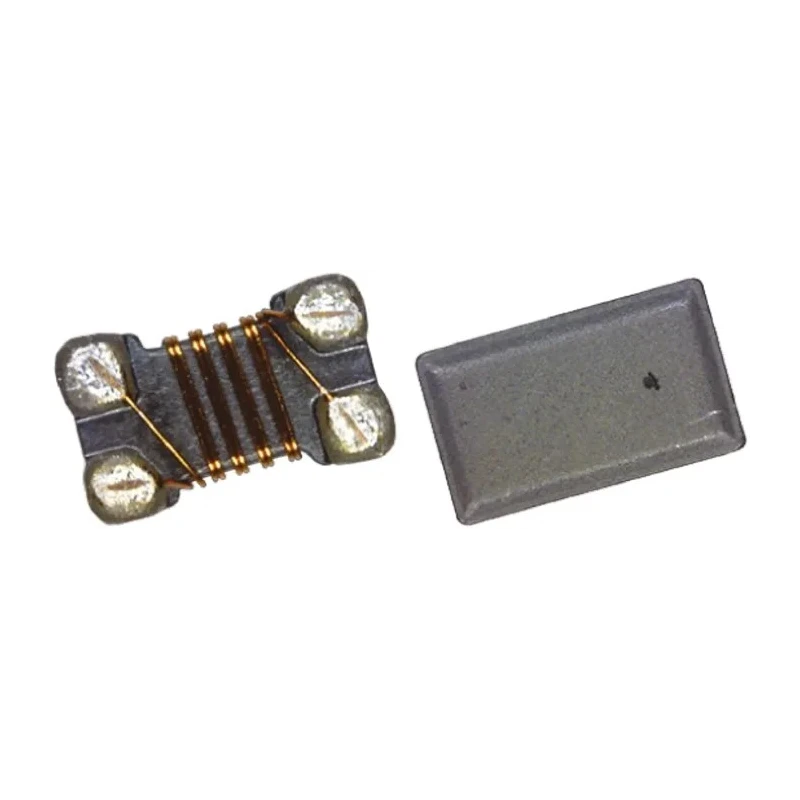

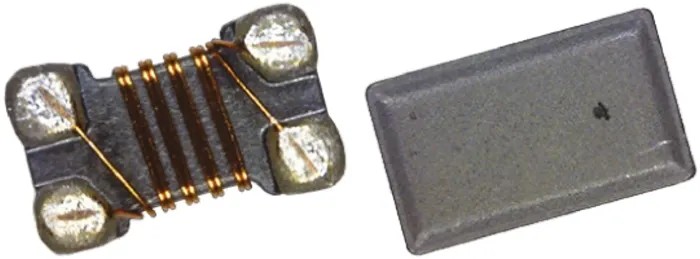

Murata 0805 Shielded Surface Mount Common Mode Choke with Ferrite Core ±25% Inductance Tolerance 330mA Maximum DC DLW21S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.9mm |
| Length | 2mm |
| Model | DLW21S |
| Depth | 1.2mm |
| Packaging | Embossed Tape |
| Series | DLW21S |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 330mA |
| Pin Count | 4 |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Tin plating |
| Inductor Construction | Wirewound |
Key Features
- Compact 0805 package size suitable for space-saving PCB designs.
- Ferrite core material ensures efficient noise suppression and high reliability.
- Shielded construction minimizes electromagnetic interference (EMI) for high-speed signal integrity.
- Tin plating termination style provides excellent solderability and durability.
- Operating temperature ranges from -40°C to 85°C suitable for various environments.
- Maximum DC resistance of 350mΩ reduces power loss in applications.
- Wirewound inductor construction offering stable inductive performance.
- Designed for USB lines, LVDS lines, and small digital AV equipment applications.
Product Description
Murata DLW21S 0805 Shielded Surface Mount Common Mode Choke is a high-performance inductive component designed to suppress noise on differential signal lines without signal distortion. It features a compact 0805 package with a ferrite core and tight ±25% inductance tolerance, capable of handling a maximum DC current of 330mA, making it ideal for high-speed data communication lines.
This common mode choke employs a wirewound inductor construction with tin plating termination, ensuring superior solderability and long-term reliability. The shielded design significantly reduces electromagnetic interference, enhancing signal integrity in USB, LVDS, and other digital AV equipment.
The component operates effectively from -40°C to 85°C, with a maximum DC resistance of 350mΩ minimizing power losses. Packaged in an embossed tape suitable for automatic insertion, it improves manufacturing efficiency in electronics production.
Typical applications include noise suppression in USB lines of PCs and peripherals, LVDS lines in laptops and LCDs, and digital cameras among other small digital audio-visual devices. Murata's comprehensive quality standards and RoHS compliance ensure environmentally safe and reliable operation.
Compact and space-saving 0805 surface mount design. High noise suppression with ferrite core shielding. Tin plating terminations for robust solder connections. Wide operating temperature range supports various environments.
Low DC resistance reduces power consumption. Wirewound construction for stable performance. Ideal for USB, LVDS, and digital AV equipment applications. Embossed tape packaging for automated PCB assembly. Complies with RoHS environmental standards.
Manufactured in Japan ensuring high-quality control.
This Murata DLW21S series component fits within the Surface Mount Inductors category, suitable for industrial electronics manufacturing and design. Explore more high-quality inductors and electronic components on EnvMart for your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance tolerance of the Murata DLW21S common mode choke is ±25%.
This model can handle a maximum DC current of 330mA.

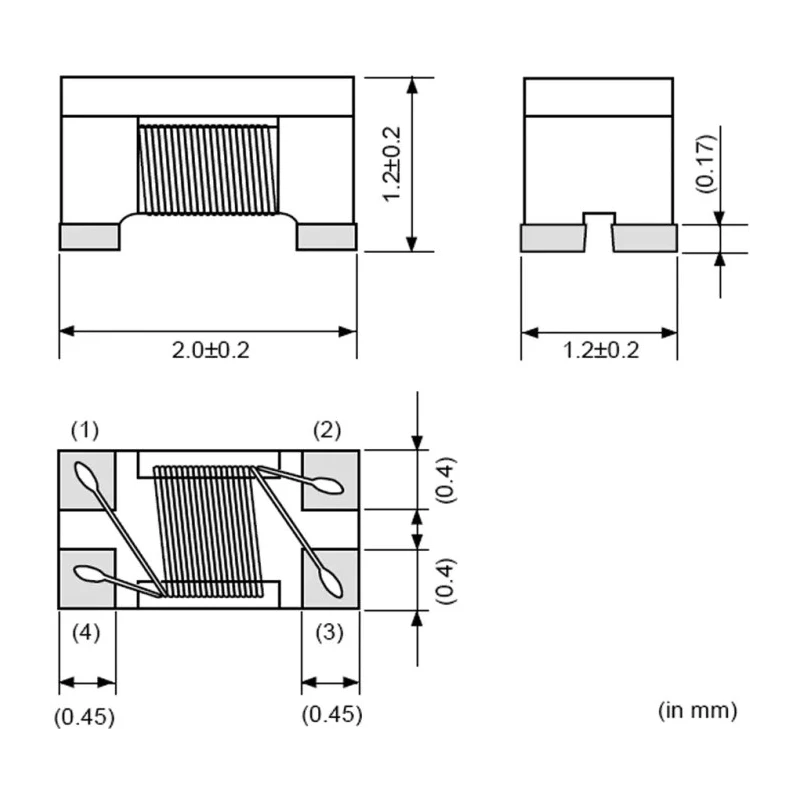

The choke comes in a compact 0805 package size, measuring 2mm in length, 1.2mm in depth, and 0.9mm in height.
It features a ferrite core material and a wirewound inductor construction, with tin plating for the termination style.
The operating temperature range for this model is from -40°C to 85°C.
The shielded construction minimizes electromagnetic interference (EMI), enhancing signal integrity for high-speed data communication lines.
It is suitable for applications including USB lines, LVDS lines, and small digital AV equipment.
The maximum DC resistance of this choke is 350mΩ, which helps to reduce power loss in applications.
It is packaged in embossed tape, which is suitable for automatic insertion during manufacturing processes.
Yes, this model complies with RoHS environmental standards, ensuring safe operation.
The DLW21S has a pin count of 4.
The Murata DLW21S common mode choke is manufactured in Japan.
