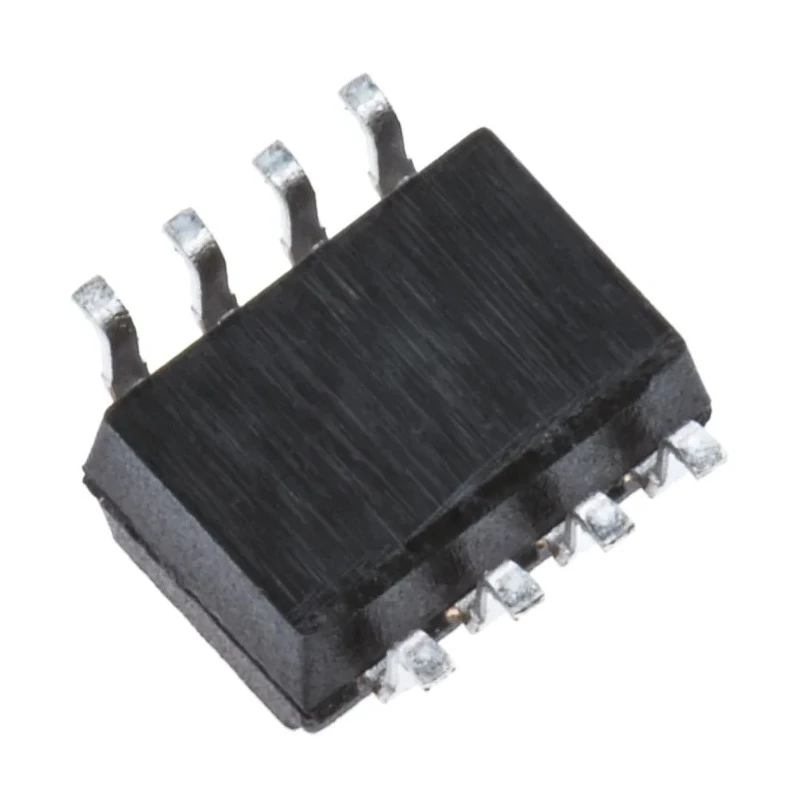

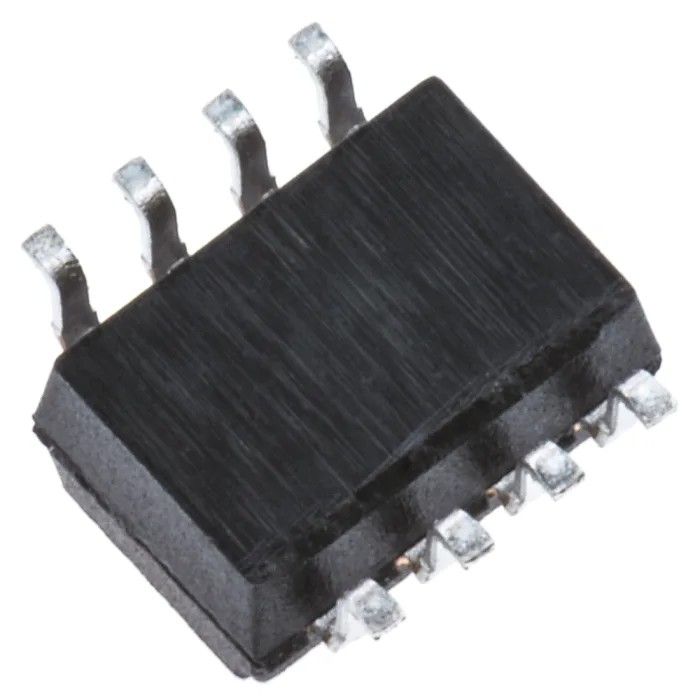

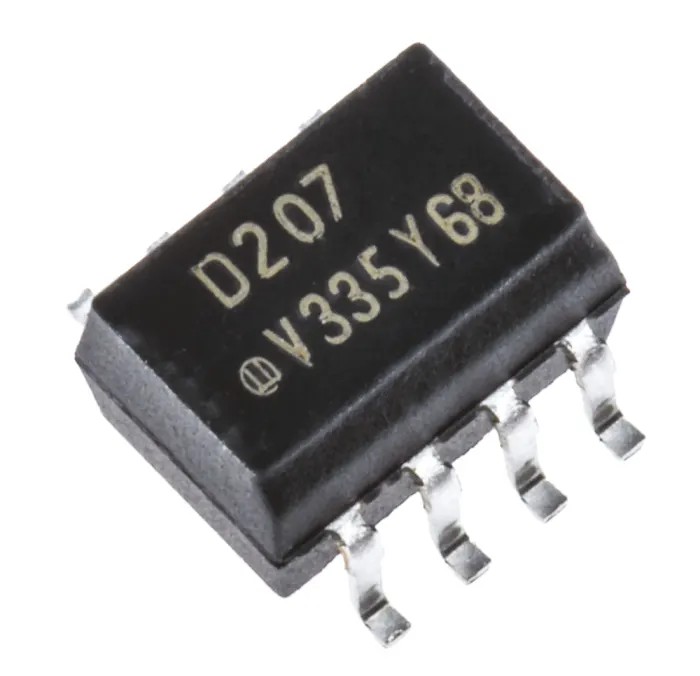

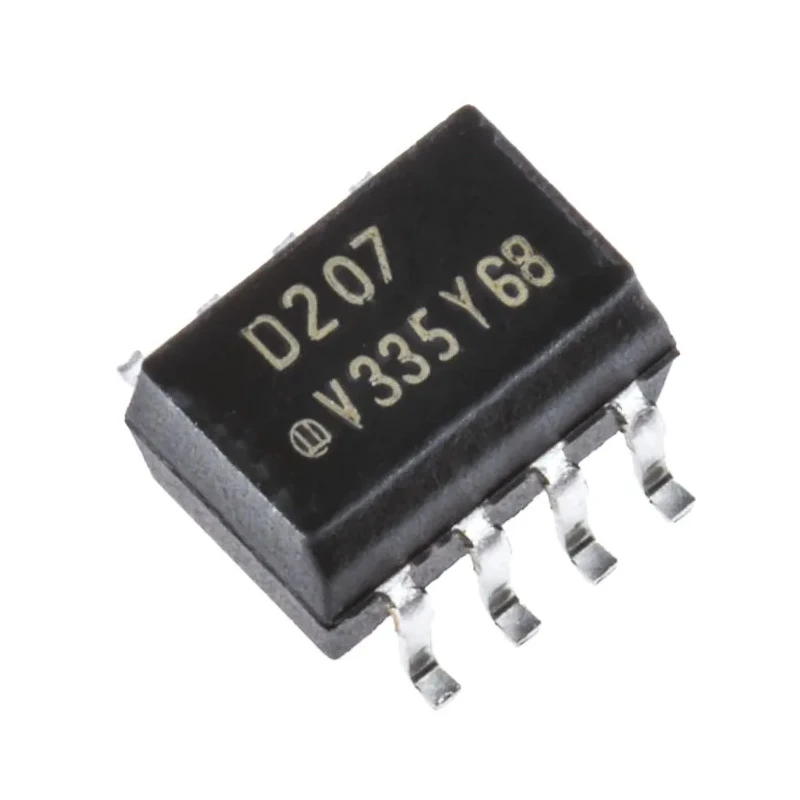

Vishay DC Input 2-Channel Optocoupler Surface Mount SOIC 8-Pin ILD207T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | ILD207T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ILD2 |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 200% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 4000V ac |
Key Features
- Offers two optically isolated channels in a compact SOIC 8-pin surface mount package.
- Designed for DC input with a maximum input current of 30mA.
- Isolation voltage rating of 4000V AC provides reliable signal isolation.
- Fast switching response with typical rise and fall times of 3μs and 4.7μs respectively.
- Operates within a wide temperature range from -55°C to 100°C for industrial applications.
- Complies with multiple industry standards including UL1577, cUL, IEC 60286-3, and DIN EN 60747-5-5.
- Offers high current transfer ratios from 100% minimum to 200% maximum ensuring efficient signal transmission.
- Packaged in tape and reel format suitable for automated assembly processes.
Product Description
Vishay ILD207T is a high performance DC input optocoupler featuring two isolated channels in a compact 8-pin SOIC surface mount package. It provides excellent electrical isolation up to 4000V AC, enabling safe interfacing between different system sections in industrial, instrumentation, and power electronics applications.
Designed with a maximum input current of 30mA, this device supports efficient coupling of digital signals through its transistor output configuration. It operates reliably across a broad temperature range of -55°C to 100°C, ensuring stable performance in harsh environments.
With fast typical rise and fall times of 3μs and 4.7μs respectively, the ILD207T is optimized for switching applications requiring precise timing. The device meets multiple certifications such as UL1577, cUL, IEC 60286-3, and DIN EN 60747-5-5, which qualify it for use in demanding industrial systems.
The high minimum and maximum current transfer ratios of 100% and 200% respectively improve signal integrity and transmission efficiency. Supplied in convenient tape & reel packaging, the optocoupler is suitable for automated surface mount assembly lines, improving production throughput.
This ILD2 series optocoupler from Vishay is ideal for applications in industrial automation, data communication, power supply circuits, and signal isolation for safety and noise reduction.
Two optically isolated DC input channels for signal separation. Surface mount SOIC 8-pin package for compact PCB layouts. High isolation voltage rating of 4000V AC for safe interfacing. Operating temperature range from -55°C to 100°C for industrial use.
Fast switching with 3μs rise time and 4.7μs fall time. Current transfer ratio between 100% and 200% to maintain signal quality. Certified to UL1577, cUL, IEC 60286-3, and DIN EN 60747-5-5 standards. Tape & reel packaging for automated manufacturing processes.
Explore the wide range of Vishay Optocouplers and electronic components available on EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the ILD207T is 30mA.
It has an isolation voltage rating of 4000V AC, ensuring reliable signal isolation.
The typical rise time is 3μs and the typical fall time is 4.7μs.
This model operates within a temperature range of -55°C to 100°C.
The ILD207T features two optically isolated channels.
It is packaged in a tape and reel format, suitable for automated assembly processes.
The ILD207T supports DC input current.
The current transfer ratios range from a minimum of 100% to a maximum of 200%.
The package type is SOIC, which is a surface mount configuration.
It complies with UL1577, cUL, IEC 60286-3, and DIN EN 60747-5-5 standards.
The ILD207T is manufactured in India.
This model belongs to the ILD2 series of optocouplers.
