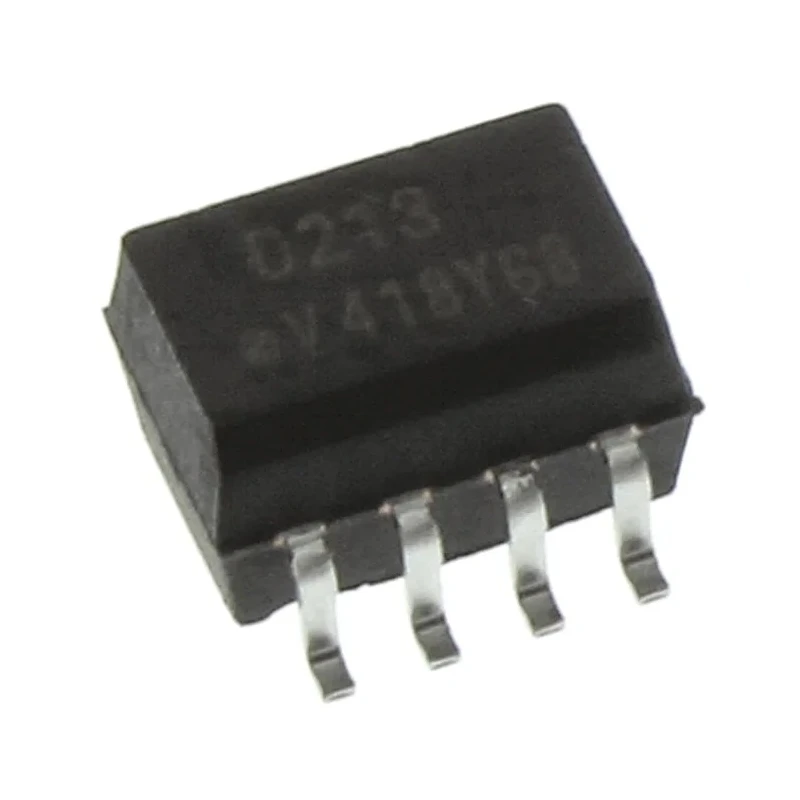

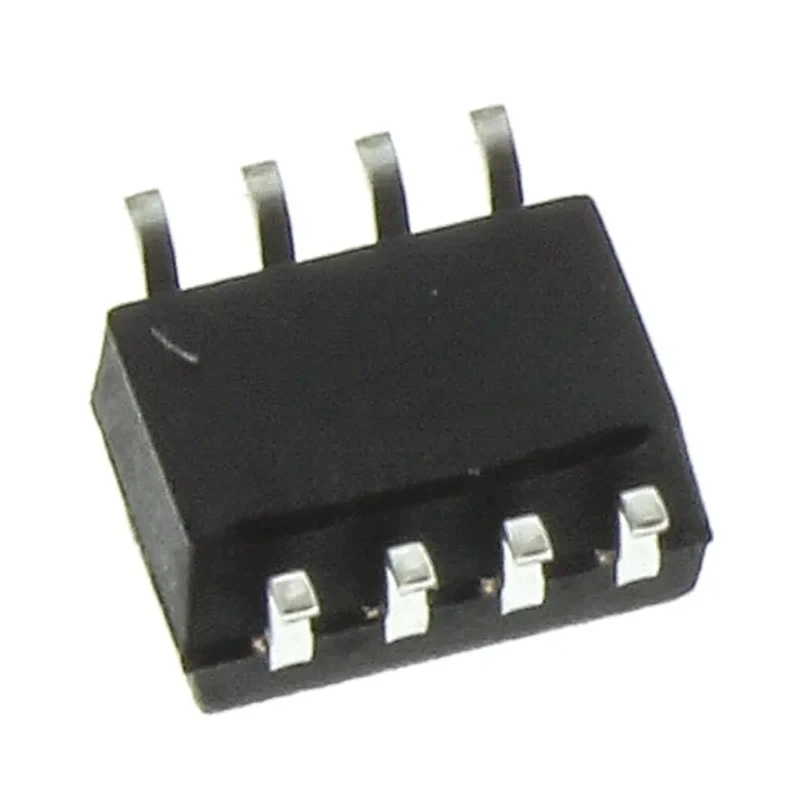

Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin SOIC ILD213T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | ILD213T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | ILD2 |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Standards/Approvals | IEC 60286-3, EIA-481-2, cUL, UL1577 |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 200% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 4000V ac |
Key Features
- Provides two independent optically isolated channels in one package.
- Features transistor output suitable for signal isolation.
- Maximum forward voltage of 1.55 V for input LEDs.
- Isolation voltage rated at 4000 V ac for robust electrical isolation.
- Operates within temperature range of -55°C to 100°C ensuring reliability.
- Typical rise time of 3 microseconds and fall time of 4.7 microseconds.
- Input current maximum rating of 30 mA to protect internal LEDs.
- Package supplied on tape and reel for automated assembly processes.
Product Description
Vishay ILD213T is a DC input 2-channel optocoupler designed for surface mount assembly in an 8-pin SOIC package. It features transistor output channels that provide excellent signal isolation between input and output sections of electronic circuits. The device is optimized for use in industrial, commercial, and electronic component applications requiring high voltage isolation.
This optocoupler possesses a maximum forward voltage of 1.55 V and a maximum input current of 30 mA to assure safe operation of the input LEDs. With an isolation voltage of 4000 V ac, it offers reliable electrical separation to protect sensitive downstream components.
The ILD213T operates over a wide temperature range from -55°C to 100°C with a typical rise time of 3 microseconds and a fall time of 4.7 microseconds, enabling fast and efficient switching responses in signal processing systems.
The packaging in tape and reel format facilitates automated insertion into machinery, enhancing production efficiency. The device complies with IEC 60286-3, EIA-481-2, cUL, and UL1577 certifications, ensuring reliability and safety in various industrial environments.
This component belongs to the ILD2 series of Vishay Semiconductor optocouplers and is ideal for use in electronic components, power and connector displays, and optoelectronic systems requiring isolation and signal integrity.
Provides two isolated transistor output channels in one surface mount package. Maximum forward voltage of 1.55 V for precise LED control. Isolation voltage rating of 4000 V ac for safety and protection. Wide operating temperature range from -55°C to 100°C for versatile applications.
Complies with international safety standards IEC 60286-3, EIA-481-2, cUL, and UL1577. Available in tape and reel packaging for automated assembly. Explore more Vishay Optocouplers and related electronic components in EnvMart's Electronics & Electricals category for industrial and commercial use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage rating of this model is 4000 V ac, providing robust electrical isolation between input and output sections.
The maximum forward voltage for the input LEDs is 1.55 V, ensuring precise control of the LED operation.
This unit operates within a temperature range of -55°C to 100°C, allowing for versatile applications in various environments.
The ILD213T features two independent channels, providing optically isolated signal paths in one package.
The typical rise time is 3 microseconds and the fall time is 4.7 microseconds, enabling efficient signal processing.
The maximum input current rating is 30 mA, which protects the internal LEDs during operation.
This model provides a transistor output, suitable for signal isolation applications.
The ILD213T is supplied in tape and reel packaging, facilitating automated assembly processes.
It complies with IEC 60286-3, EIA-481-2, cUL, and UL1577 certifications, ensuring reliability and safety in various applications.
This optocoupler features 8 pins, designed for surface mount applications.
The ILD213T is suitable for industrial, commercial, and electronic component applications requiring high voltage isolation.
The ILD213T is part of the ILD2 series of Vishay Semiconductor optocouplers, designed for signal integrity and isolation.
