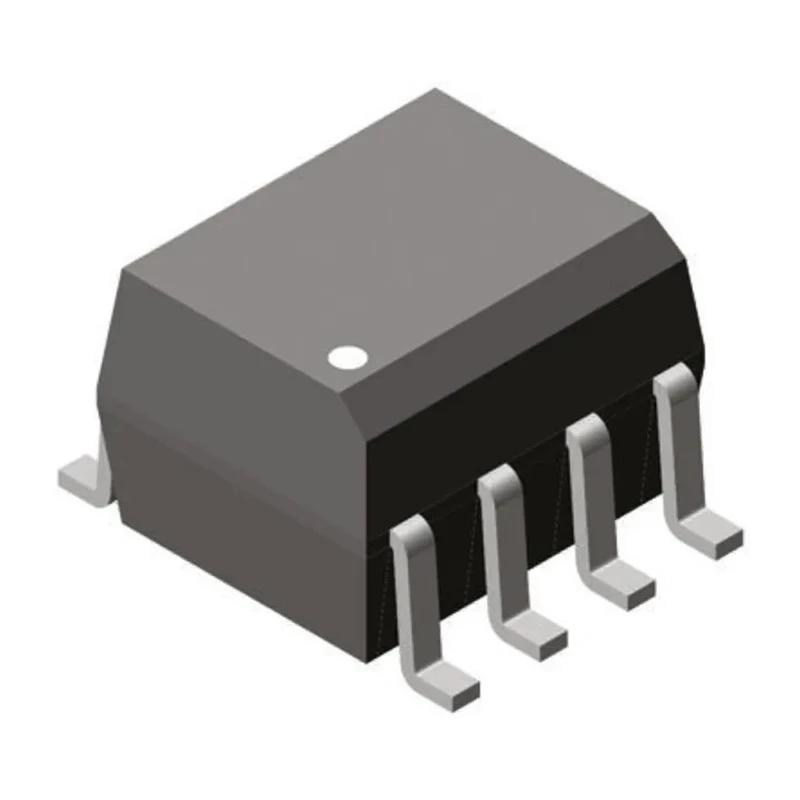

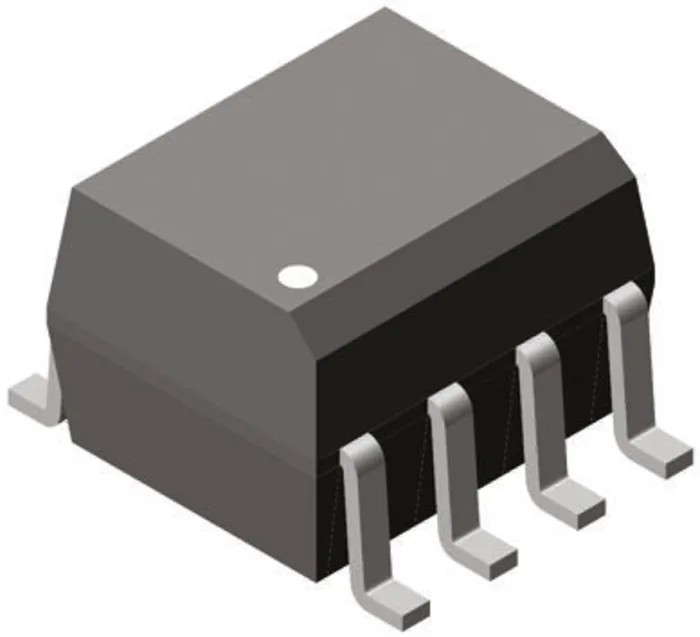

Vishay VOD205T DC Input 2-Channel Optocoupler, Surface Mount, 8-Pin SOIC VOD205T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOD205T |
| Mount Type | Surface |
| Output type | Transistor |
| Series | VOD |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Standards/Approvals | CSA, EN, UL |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 80% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 0.4% |
| Isolation Voltage | 4000V ac |
Key Features
- Supports 2 input channels for simultaneous optocoupler operation.
- Designed for DC input current operation ensuring stable functioning.
- Features a maximum forward voltage of 1.55V for efficient input drive.
- Offers high isolation voltage of 4000V AC for safe signal transmission.
- Operates reliably from -40°C up to 100°C ambient temperatures.
- Employs transistor output for versatile electronic circuit interfacing.
- Complies with CSA, EN, and UL safety standards for quality assurance.
- Compact 8-pin SOIC package suitable for surface mounting on PCBs.
Product Description
Vishay VOD205T DC Input 2-Channel Optocoupler is a high-quality semiconductor device designed for efficient signal isolation in electronic circuits. Packaged in a space-saving 8-pin SOIC surface mount format, it integrates two channels enabling dual input isolation paths. The device supports DC input currents with a maximum forward voltage of 1.55V, facilitating low power dissipation and efficient control.
This optocoupler provides an isolation voltage rating of 4000V AC, guaranteeing excellent protection between input and output sides in sensitive equipment. Its transistor output allows flexible interface options for a wide range of electronic applications.
Engineered for reliable operation in industrial and commercial environments, the component supports a wide temperature range from -40°C to 100°C. Standards compliance including CSA, EN, and UL further ensures performance and safety reliability in critical systems. The device's typical rise and fall times of 5μs and 4μs respectively make it suitable for fast switching signals.
Vishay VOD205T is widely used in electronics manufacturing, industrial automation, instrumentation, and HVAC control systems where electrical isolation and signal integrity are paramount. The surface mount SOIC package streamlines automated PCB assembly, improving production throughput and device durability.
Supports 2 input channels for simultaneous optocoupler operation. DC input current type for stable control. Maximum forward voltage of 1.55V reduces power consumption. Isolation voltage rating of 4000V AC ensures safety and protection.
Operating temperature range from -40°C to 100°C for versatile applications. Transistor output type suitable for diverse electronics interface. Certified to CSA, EN, and UL standards for quality assurance. Compact 8-pin SOIC package for efficient surface mounting.
Fast rise and fall times of 5μs and 4μs provide high-speed switching capability. Maximum input current of 30mA supports robust signal processing. Explore the Vishay product range in the Optocoupler category at EnvMart for reliable and efficient electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the VOD205T is 30mA, allowing for robust signal processing.
It has an isolation voltage rating of 4000V AC, ensuring safe signal transmission between input and output.
This model operates reliably within a temperature range of -40°C to 100°C, suitable for various environments.
The VOD205T supports 2 input channels for simultaneous optocoupler operation.
It comes in a compact 8-pin SOIC package, designed for surface mounting on PCBs.
The typical rise time is 5μs and the fall time is 4μs, making it suitable for fast switching signals.
This model employs a transistor output type, allowing for versatile interfacing in electronic circuits.
It complies with CSA, EN, and UL safety standards, ensuring quality assurance in critical applications.
The maximum forward voltage is 1.55V, which helps reduce power consumption during operation.
This optocoupler is designed for DC input current operation, ensuring stable functioning.
The VOD205T is manufactured in India.
The maximum current transfer ratio for the VOD205T is 80%, providing effective signal isolation.
