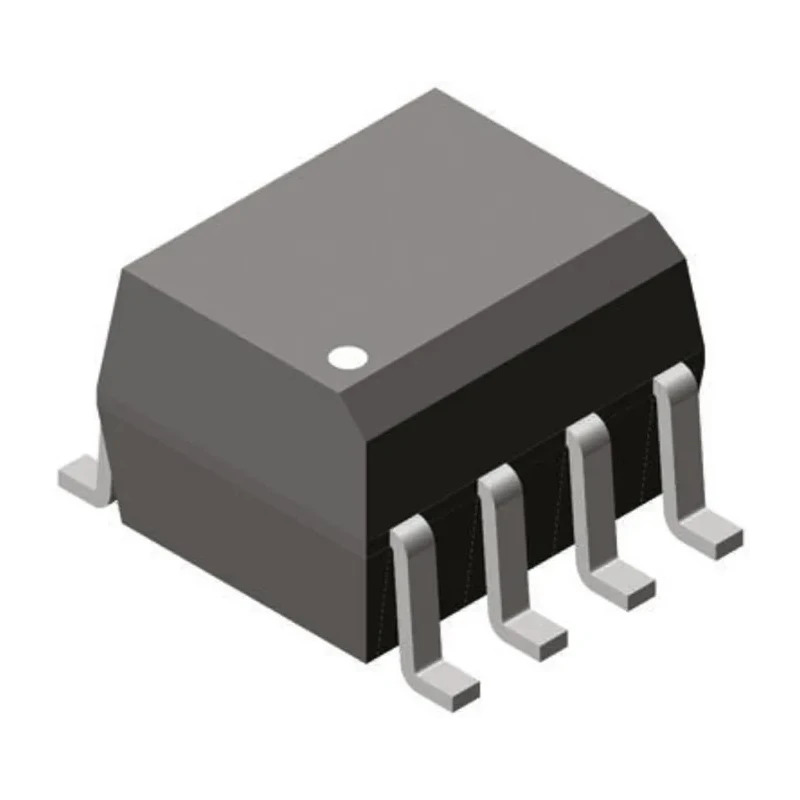

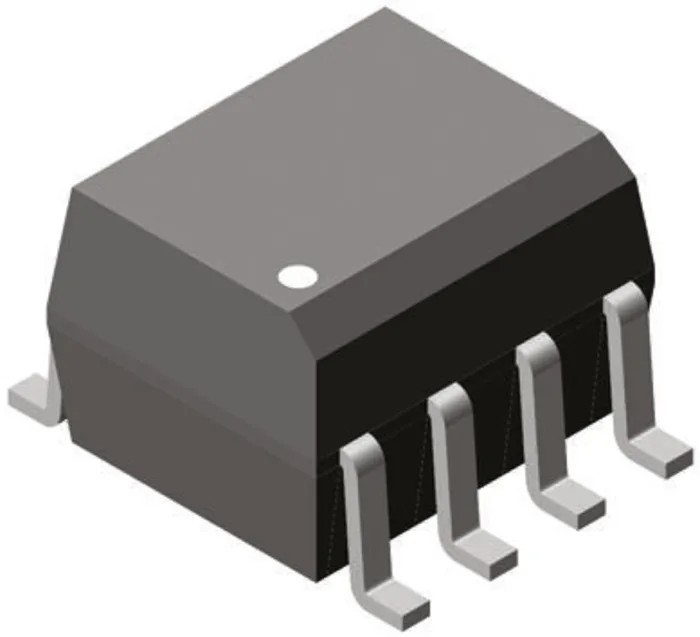

Vishay DC Input 2-Channel Surface Mount Optocoupler 8-Pin SOIC-8 VOD207T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOD207T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VOD |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC-8 |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 200% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 4000V ac |
Key Features
- Maximum forward voltage is 1.55 volts for efficient signal transmission.
- Dual channels allow simultaneous switching operations.
- Encapsulated in a SOIC-8 surface mount package for PCB integration.
- Isolates logically with a high 4000 V AC isolation voltage for safety.
- Operating temperature range from -40°C to 100°C for robust performance.
- Features a maximum input current rating of 30 mA compatible with DC inputs.
- Typical switching speed includes 5 microseconds rise time and 4 microseconds fall time.
- Meets standards including CUL, UL1577, and DIN EN 60747-5-5 for reliability.
Product Description
Vishay VOD207T is a dual-channel optocoupler designed for DC input with surface mount capabilities. The device offers reliable electrical isolation and signal transfer in industrial and electronic system applications.
This 8-pin SOIC-8 package optocoupler features a maximum forward voltage of 1.55 V and supports a maximum input current of 30 mA, making it ideal for interfacing DC control signals.
Its high isolation voltage of 4000 V AC provides safety against high voltage spikes and electrical noise, ensuring system integrity and operator protection in industrial environments.
The device operates effectively within a temperature range from -40°C to 100°C, suitable for diverse operating conditions. Typical rise and fall times of 5 μs and 4 μs respectively enable fast switching and precise control in timing-critical applications.
Certified to standards such as CUL, UL1577, and VDE EN 60747-5-5, the Vishay VOD207T guarantees compliance with international safety and quality norms.
Common applications include electronic isolation in industrial control systems, power supplies, instrumentation, and automation equipment requiring reliable signal transfer and protection.
Maximum forward voltage of 1.55 V. Dual-channel operation supports 2 separate signals. Surface mount SOIC-8 package for space-saving PCB design. High isolation voltage of 4000 V AC protecting circuits and operators. Operational temperature from -40°C to 100°C for harsh environments.
Maximum input current of 30 mA for DC input signals. Typical rise time of 5 μs and fall time of 4 μs for rapid signal switching. Certified to multiple international safety standards. Suitable for industrial, instrumentation, and automotive electronic systems.
Explore more Vishay Optocouplers and related electronic components for your industrial and electronic design requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the VOD207T is 1.55 volts, which is designed for efficient signal transmission.
It has a high isolation voltage of 4000 V AC, providing safety against high voltage spikes and electrical noise.
This model operates effectively within a temperature range of -40°C to 100°C, making it suitable for diverse operating conditions.
The VOD207T supports dual-channel operation, allowing simultaneous switching of two separate signals.
The typical rise time for the VOD207T is 5 microseconds, enabling fast signal switching.
It has a maximum input current rating of 30 mA, compatible with DC input signals.
This model is encapsulated in an 8-pin SOIC-8 surface mount package, suitable for PCB integration.
The typical fall time for the VOD207T is 4 microseconds, which aids in precise control during signal switching.
It meets several safety standards including CUL, UL1577, and DIN EN 60747-5-5, ensuring reliability and compliance.
The maximum current transfer ratio for this model is 200%, which supports efficient signal transmission.
This optocoupler is designed for DC input current, making it suitable for interfacing with DC control signals.
The VOD207T is manufactured in India.
