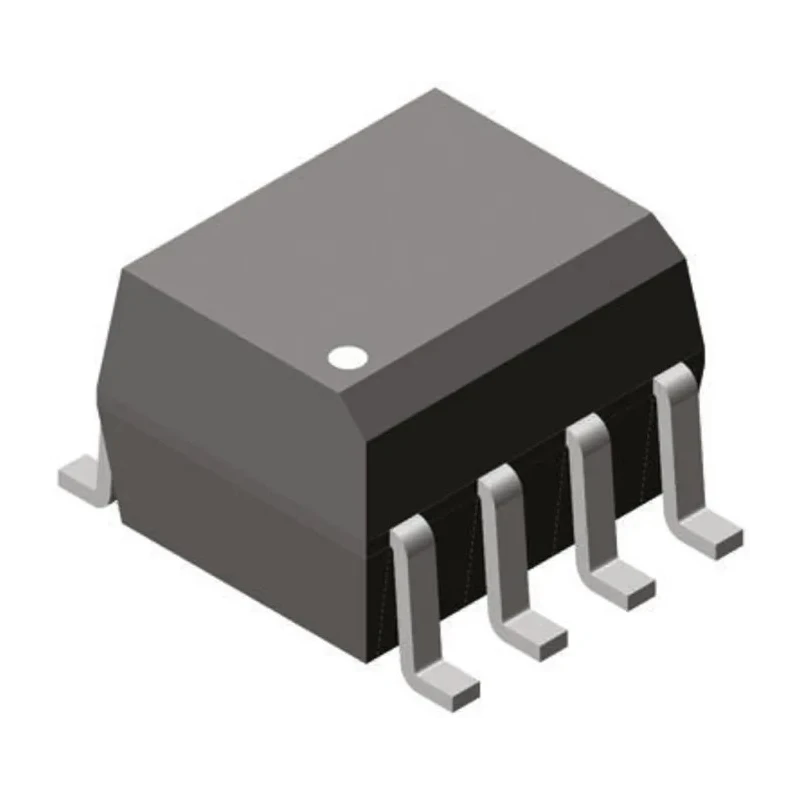

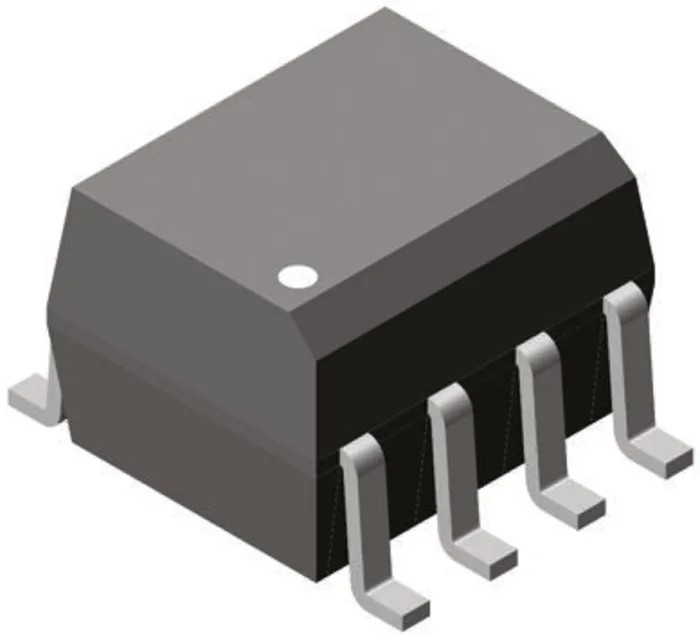

Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin SOIC VOD213T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOD213T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | VOD |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 200% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 100% |
Key Features
- Offers two independent channels for signal isolation and control.
- Features DC input current type to support steady state operation.
- Maximum forward voltage is 1.55 V ensuring safe operation at rated current.
- Rated for an input current up to 30 mA and isolation voltage of 4 kVrms.
- Typical rise and fall times of 5 μs and 4 μs support fast switching.
- Operates in temperature ranges from -40°C to 100°C ensuring broad environmental compatibility.
- Complies with multiple standards including UL1577, cUL, DIN EN 60747-5-5 (VDE 0884), RoHS 2002/95/EC, and WEEE 2002/96/EC.
- Packaged in tape and reel format for automated assembly processes.
Product Description
Vishay VOD213T is a DC input, 2-channel optocoupler featuring a phototransistor output housed in an 8-pin SOIC surface mount package. It offers enhanced isolation between input and output circuits, facilitating versatile signal interchange in electronic and industrial systems.
This optocoupler supports a maximum forward voltage of 1.55 V and can handle an input current up to 30 mA. It operates reliably over a wide temperature range from -40°C to 100°C, making it suitable for harsh environments.
The device exhibits fast switching characteristics with typical rise and fall times of 5 μs and 4 μs respectively, enabling high-speed signal transmission in control and automation applications. Its isolation voltage rating of 4 kVrms ensures robust electrical separation that protects sensitive circuitry.
The Vishay VOD213T is compliant with international safety and environmental standards such as UL1577, cUL, DIN EN 60747-5-5 (VDE 0884), RoHS 2002/95/EC, and WEEE 2002/96/EC. Its tape and reel packaging is optimized for automated manufacturing processes which enhances production efficiency.
This component is ideal for industrial automation, control systems, power supplies, and signal isolation in electronic devices. Its small footprint and reliable performance support compact designs and reduce electromagnetic interference challenges.
Offers two independent channels for signal isolation and control. Features DC input current for stable operation. Maximum forward voltage of 1.55 V for safe electrical characteristics. Input current limit of 30 mA and maximum current transfer ratio of 200%.
Operating temperature range from -40°C to 100°C for versatile environmental application. Typical rise time of 5 μs and fall time of 4 μs for fast switching. Isolation voltage rated at 4 kVrms for high electrical separation.
Compliance with RoHS and WEEE environmental directives. Packaged in tape and reel for efficient assembly.
Choose Vishay VOD213T for dependable optoelectronic isolation in your power and control circuits, ensuring safety and reliable signal transmission across industrial and electronic applications.
Explore more from our comprehensive range of Optocouplers and related electronic components on EnvMart to meet your technical and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 30 mA.
It has an isolation voltage rating of 4 kVrms, providing robust electrical separation.
This unit operates reliably within a temperature range of -40°C to 100°C.
The typical rise time is 5 μs and the fall time is 4 μs, supporting fast switching capabilities.
It features a phototransistor output type, suitable for various applications.
The Vishay VOD213T has two independent channels for signal isolation and control.
The maximum forward voltage is 1.55 V, ensuring safe operation at the rated current.
It is packaged in tape and reel format, optimizing it for automated assembly processes.
It complies with UL1577, cUL, DIN EN 60747-5-5 (VDE 0884), RoHS 2002/95/EC, and WEEE 2002/96/EC.
This model features a surface mount type for easy integration into circuits.
The maximum current transfer ratio is 200%, allowing for effective signal transmission.
The country of origin for this product is India.
