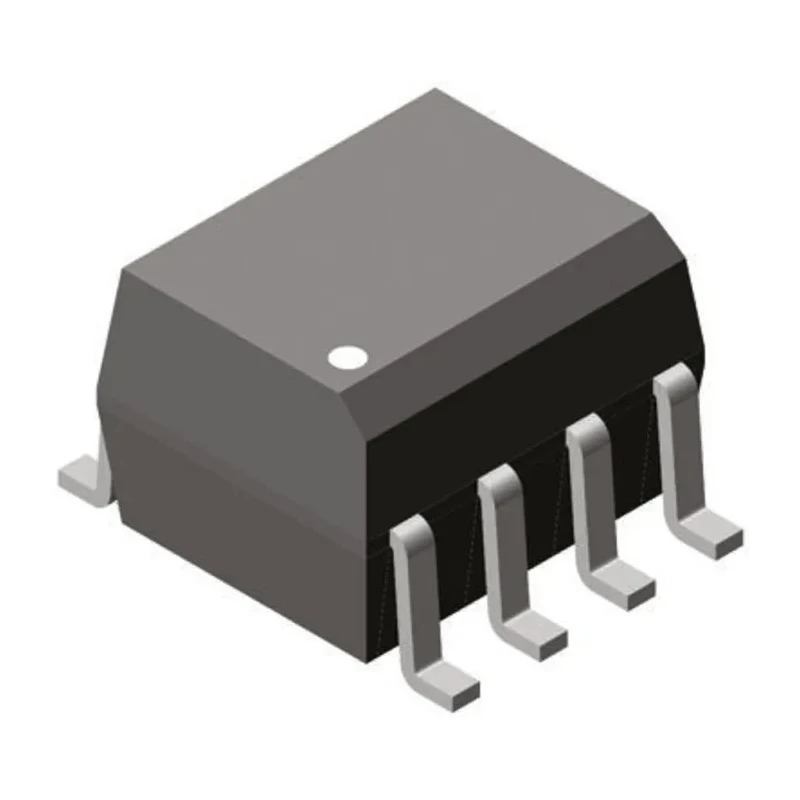

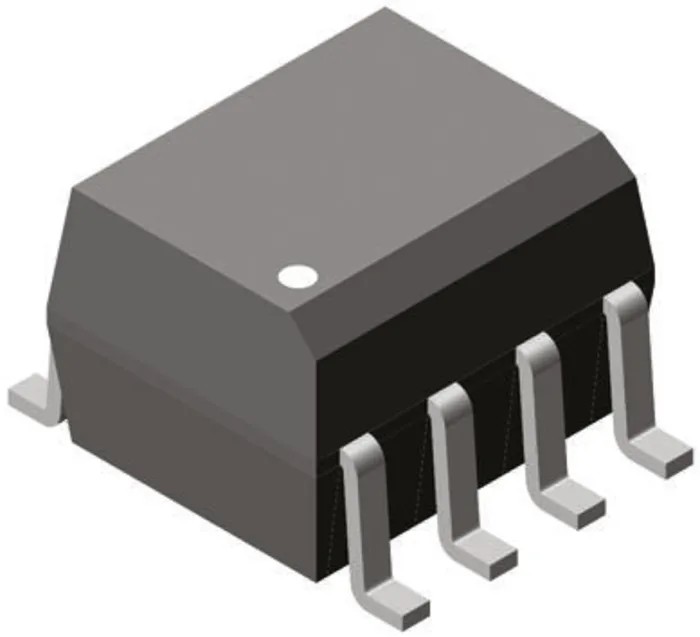

Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin SOIC VOD217T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOD217T |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | VOD |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Standards/Approvals | CSA, EN, UL |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 120% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 4000V ac |
Key Features
- Features dual phototransistor output channels for reliable signal isolation.
- Designed to operate with a maximum forward voltage of 1.55 V for efficient input control.
- Capable of handling maximum input current of up to 30 mA, suitable for various electronic circuits.
- Provides robust isolation voltage of 4000 V AC ensuring safety and interference reduction.
- Operates effectively within a temperature range from -40°C to 100°C for wide industrial applicability.
- Typical rise and fall times are 5 μs and 4 μs respectively, ensuring fast response times.
- Complies with CSA, EN, and UL standards for quality and safety assurance.
- Encapsulated in an 8-pin SOIC surface mount package for compact PCB integration.
Product Description
The Vishay VOD217T is a high-performance DC input optocoupler featuring two channels with phototransistor output. Packaged in a compact 8-pin SOIC surface-mount body, this device offers reliable electrical isolation between input and output circuits, ideal for industrial control and electronic communication systems.
It supports a maximum forward voltage of 1.55 V and a maximum input current of 30 mA, allowing it to interface seamlessly with low-voltage DC signals. The optocoupler delivers an isolation voltage rating of 4000 V AC, ensuring high safety margins and noise immunity in challenging electrical environments.
Operating across a temperature range of -40°C to 100°C, the VOD217T maintains stable performance, making it suitable for automotive, industrial automation, and power management applications. Its fast typical rise and fall times of 5 μs and 4 μs enable quick signal transmission without distortion.
Dual-channel phototransistor output for effective signal isolation. Surface mount 8-pin SOIC package for space-saving circuit design. High isolation voltage of 4000 V AC for enhanced safety. Wide operating temperature range from -40°C to 100°C.
Compliance with CSA, EN, and UL standards ensures reliability. Typical rise and fall times of 5 μs and 4 μs respectively for rapid switching. Maximum forward voltage of 1.55 V and input current of 30 mA support versatile applications.
This Optocoupler is widely used in industrial electronics, power supply circuits, telecommunications, and HVAC control systems where electrical isolation and signal integrity are critical. It helps prevent damage to sensitive components caused by voltage spikes and ground loops.
Explore the range of Vishay optoelectronic components at EnvMart to find suitable solutions for your industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VOD217T has a maximum isolation voltage of 4000 V AC, providing robust electrical isolation between input and output circuits.
It operates effectively within a temperature range from -40°C to 100°C, making it suitable for various industrial applications.
This model features dual channels with phototransistor output, allowing for effective signal isolation.
The maximum input current for this optocoupler is 30 mA, which supports various electronic circuits.
The maximum forward voltage for this model is 1.55 V, enabling efficient input control.
The typical rise time is 5 μs and the typical fall time is 4 μs, ensuring fast response times for signal transmission.
It is encapsulated in an 8-pin SOIC surface mount package, designed for compact PCB integration.
This optocoupler complies with CSA, EN, and UL standards, ensuring quality and safety assurance.
The output type of this model is phototransistor, which is suitable for reliable signal isolation.
The maximum current transfer ratio is 120%, allowing for effective signal transmission.
It is widely used in industrial electronics, power supply circuits, telecommunications, and HVAC control systems where electrical isolation is critical.
The minimum operating temperature for this optocoupler is -40°C, making it suitable for harsh environments.
