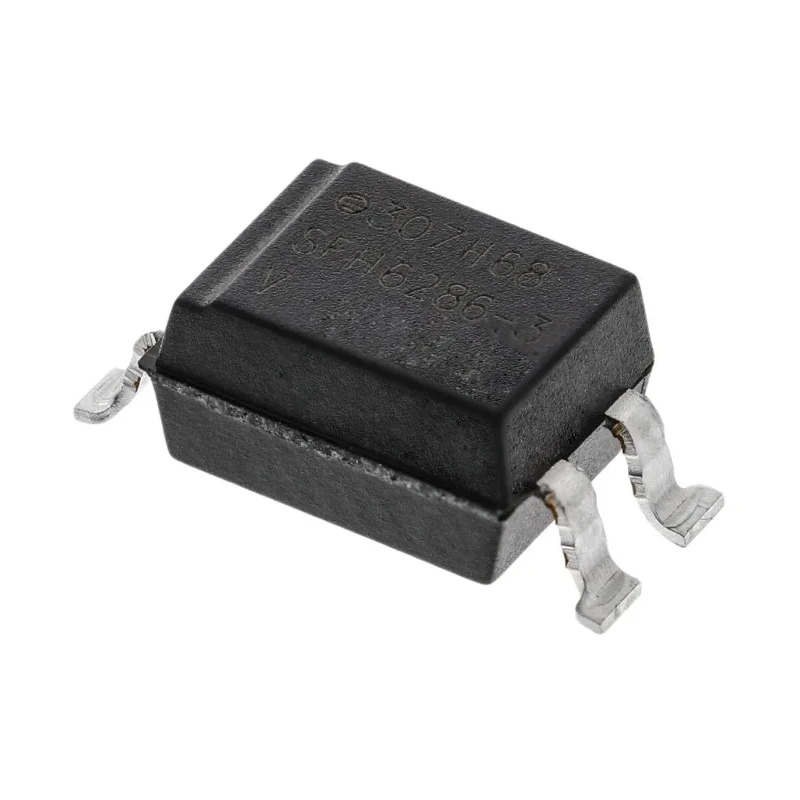

Vishay AC Input Optocoupler, Surface Mount, 4-Pin Transistor Output SFH6286-3T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SFH6286-3T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | SFH |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, UL, EN |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 3.5μs |
| Maximum Current Transfer Ratio | 320% |
| Typical Fall Time | 5μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 5300V ac |
| Vishay ILQ615-2 DC Input 4-Channel Optocoupler, Through Hole, 16-Pin PDIPBrand | Vishay |
Key Features
- Designed for AC input applications with a maximum forward voltage of 1.5V.
- Features a maximum isolation voltage of 5300V AC ensuring reliable electrical isolation.
- Typical rise and fall times are 3.5μs and 5μs respectively for fast switching.
- Operates in temperature ranges from -55°C up to 100°C for robust performance.
- Single channel optocoupler with 4 pins in a surface mount package for compact PCB integration.
- Maximum input current rated at 50mA suitable for standard signal conditioning.
- Current transfer ratio rated between 100% minimum and 320% maximum for efficient output.
- Complies with CSA, UL, and EN safety standards for industrial applications.
Product Description
Vishay SFH6286-3T is a high-performance AC input optocoupler with transistor output designed for electrical isolation and signal transmission in electronic circuits. It features a surface mount 4-pin package that supports compact and automated PCB assembly.
This device operates with a maximum forward voltage of 1.5V on the input side and is capable of withstanding an isolation voltage of 5300 volts AC, providing superior protection between input and output circuits. The optocoupler supports a maximum input current of 50mA, making it suitable for standard AC signal switching applications.
With a typical rise time of 3.5 microseconds and fall time of 5 microseconds, the SFH6286-3T offers fast response suitable for timing-critical electronic devices. It functions reliably over a wide operating temperature range from -55°C to 100°C, allowing use in harsh industrial and commercial environments.
The current transfer ratio varies from a minimum of 100% to a maximum of 320%, ensuring consistent transistor output signal strength. It comes packaged in tape and reel format optimized for automated manufacturing processes.
This optocoupler meets important international safety and quality standards including CSA, UL, and EN approvals, confirming its suitability for electronic designs requiring certified components.
AC input supports signal isolation in industrial and consumer electronics. Surface mount package enables miniaturization of circuit boards. High isolation voltage improves system reliability and safety. Fast switching times enhance circuit performance in data and control signals.
Wide operating temperature range ensures durability in diverse environments.
The Vishay SFH6286-3T optocoupler is ideal for use in industrial automation, telecommunications, power supplies, and signal interfacing applications. EnvMart offers this Optocoupler in ready-to-use surface mount format to accelerate your product development and manufacturing efficiency. Explore more Vishay electronic components in our extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this model is 5300V AC, providing reliable electrical isolation between input and output circuits.
The current transfer ratio for the SFH6286-3T ranges from a minimum of 100% to a maximum of 320%, ensuring efficient output signal strength.
This unit has a maximum input current rating of 50mA, making it suitable for standard AC signal switching applications.
The typical rise time is 3.5 microseconds and the fall time is 5 microseconds, allowing for fast switching performance.
It operates reliably within a temperature range from -55°C to 100°C, suitable for harsh industrial environments.
This model features a single channel optocoupler design, which is typical for applications requiring electrical isolation.
It comes in a surface mount package with 4 pins, optimized for compact PCB integration.
The SFH6286-3T complies with CSA, UL, and EN safety standards, confirming its suitability for industrial applications.
The maximum forward voltage for the SFH6286-3T is 1.5V on the input side.
This optocoupler is packaged in tape and reel format, which is ideal for automated manufacturing processes.
The output type of this model is a transistor, suitable for signal transmission in electronic circuits.
This optocoupler is ideal for applications in industrial automation, telecommunications, power supplies, and signal interfacing.
