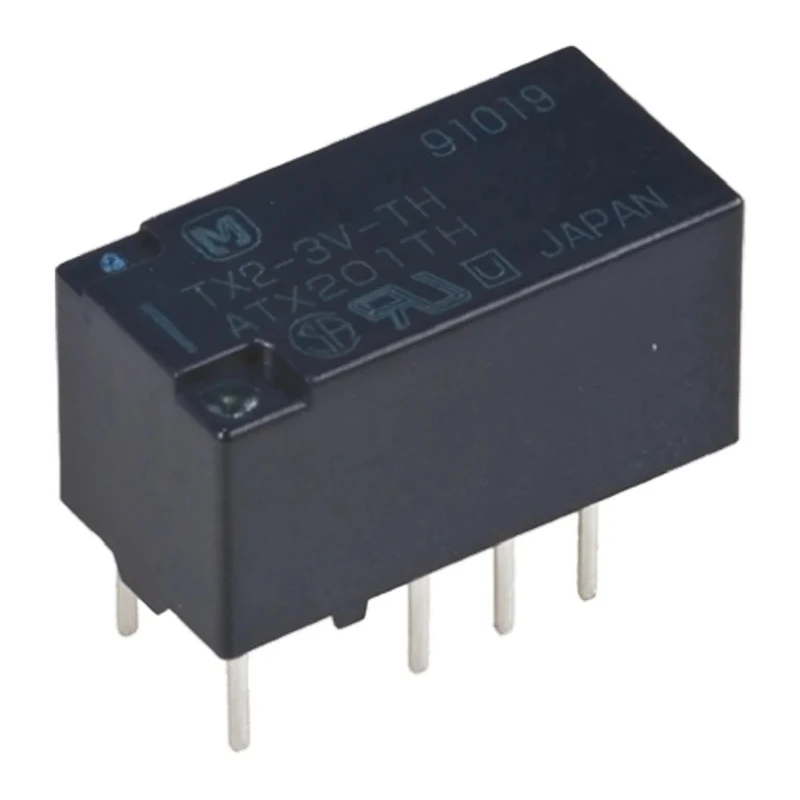

Panasonic PCB Signal Relay 3V dc Coil 2A DPDT Through Hole Mount TX2-L-3V-TH

Panasonic TX2-L-3V-TH PCB Signal Relay is a compact and reliable relay designed for use in electrical, automation, and electronic applications where precise switching and control are essential. With a low coil voltage of 3V dc and a coil power of only 140mW, this relay offers high sensitivity and energy efficiency.

This signal relay features a DPDT (Double Pole Double Throw) contact configuration, providing flexible switching for multiple circuits. The gold-plated contacts ensure low contact resistance (100mΩ) and excellent conductivity, increasing the relay's lifespan and reducing signal loss.

The relay supports a switching current of 2A and switching voltages of 250V AC and 220V DC, making it suitable for a wide range of control and signal applications, including air conditioning control and other high capacity control functions that require handling inrush currents up to 7.5A.

The device is designed for through-hole PCB mounting with terminal type connections, facilitating secure and robust installation on printed circuit boards. Its compact size (15mm length, 7.4mm width, 8.2mm height) allows integration into tight spaces within electronic assemblies.

With an operating temperature range from -40°C to 85°C, this relay performs reliably in harsh and demanding environments, complying with RoHS standards to ensure environmental safety.

Operates with a 3V dc coil and low coil power consumption of 140mW. DPDT contact configuration with gold-plated contacts and low resistance for optimal performance. Supports switching currents up to 2A and switching voltages of 250V AC and 220V DC.

Designed for through-hole PCB mounting for secure electronic integration. Compact dimensions for use in limited spaces within electronic devices. Wide operating temperature range from -40°C to 85°C for industrial applications.

Capable of handling a controlled inrush current of 7.5A for high capacity control uses. Meets RoHS environmental compliance standards.

This Panasonic PCB Signal Relay is ideal for use in industrial automation, electrical systems, HVAC control, manufacturing equipment, and general-purpose control circuits. Its premium build quality and reliable performance make it a trusted component for professional electronic designers and system integrators.
