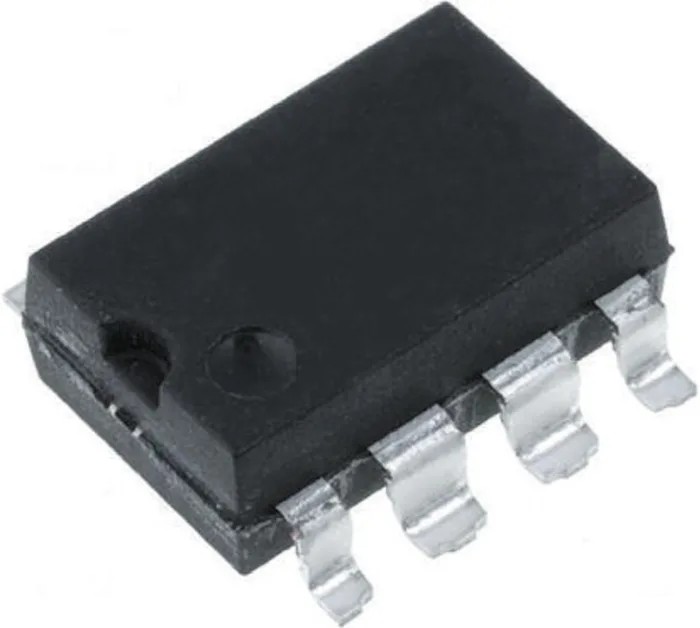

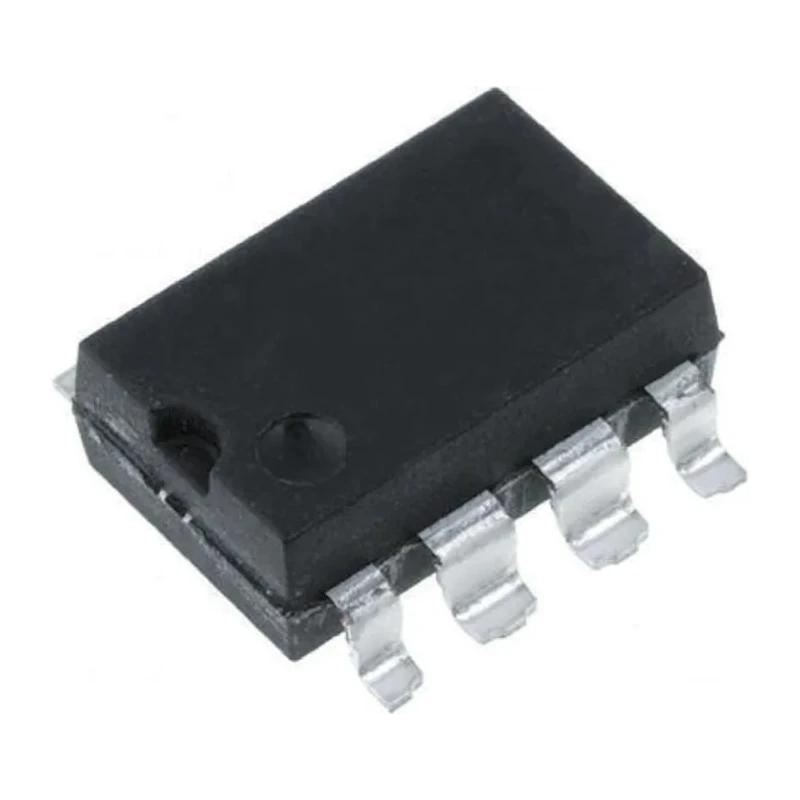

Toshiba DC Input 2-Channel Optocoupler Surface Mount 8-Pin SOIC TLP2108(F)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Model | TLP2108(F) |
| Mount Type | Surface |
| Series | TLP |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.75V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 30ns |
| Isolation Voltage | 2500V ac |
Key Features
- Features a totem-pole logic output configuration for buffer logic output.
- Maximum forward voltage is 1.75 V ensuring efficient operation.
- Operating temperature range from -40°C to 100°C for robust performance.
- Typical rise and fall times are both 30 ns providing fast response.
- Designed for surface mount applications with compact SOIC 8-pin package.
- Isolated channels with 2 independent input channels for versatile control.
- Certified with UL standards ensuring reliability and safety.
- Manufactured in Japan with high-quality semiconductor processes.
Product Description
Toshiba TLP2108(F) is a DC input 2-channel optocoupler featuring a surface mount 8-pin SOIC package. It offers a high isolation voltage of 2500 V AC, making it ideal for electrical isolation in various industrial, commercial, and electronics manufacturing applications. The device provides a logic driven push-pull (totem-pole) output that buffers signals effectively, suitable for digital interfaces.
Its maximum forward voltage rating of 1.75 V and maximum input current of 10 mA help optimize power consumption while maintaining signal integrity. This optocoupler operates reliably within a wide temperature range from -40°C to 100°C.
The typical rise and fall times of 30 ns support high-speed switching performance in control systems and circuitry. Its surface mount package facilitates compact PCB layouts in industrial automation, instrumentation, and communication devices.
Designed to meet UL standards, the TLP2108(F) is produced in Japan reflecting strict quality controls and semiconductor excellence. This device finds use in isolation amplifiers, signal isolation in industrial controllers, and noise reduction between stages in electronic circuits.
Totem-pole logic output ensures clean digital signal buffering. Wide temperature range supports harsh environmental usage. High isolation voltage protects against high voltages and transients. Compact SOIC 8-pin package promotes flexible circuit design.
Dual independent channels provide versatile control options. RoHS compliant and suitable for modern electronics. Typical response times allow for efficient signal switching. Ideal for industrial, laboratory, and electronic equipment use.
Explore EnvMart’s Electronics & Electricals catalog for a comprehensive range of Optocouplers and electronic components engineered for precision and reliability in demanding industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this optocoupler is 2500 V AC, providing effective electrical isolation in various applications.
The TLP2108(F) operates within a temperature range of -40°C to 100°C, making it suitable for harsh environments.
This optocoupler features 2 independent input channels, allowing for versatile control options in applications.
The typical rise and fall times for the TLP2108(F) are both 30 ns, supporting high-speed switching performance.
The maximum forward voltage rating for this model is 1.75 V, which helps optimize power consumption.
It features a totem-pole logic output configuration, which effectively buffers digital signals.
The TLP2108(F) comes in an 8-pin SOIC surface mount package, suitable for compact PCB layouts.
The maximum input current for this optocoupler is 10 mA, ensuring efficient operation while maintaining signal integrity.
Yes, it is certified with UL standards, ensuring reliability and safety in its applications.
This optocoupler is manufactured in Japan, reflecting high-quality semiconductor processes.
It is suitable for use in isolation amplifiers, industrial controllers, and noise reduction in electronic circuits.
This model supports DC input, making it compatible with various digital interfaces.
