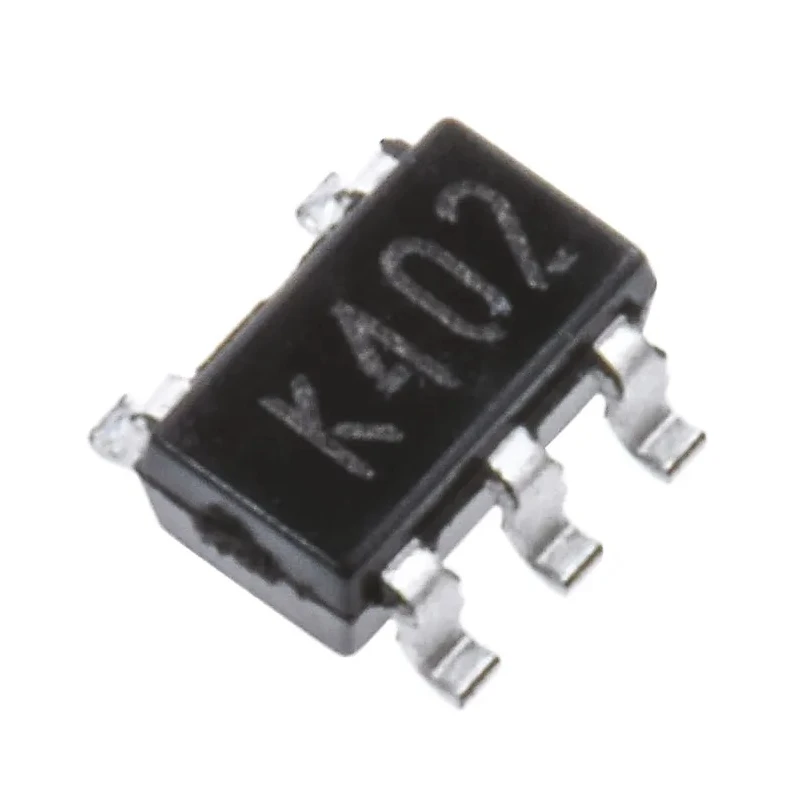

STMicroelectronics Operational Amplifier, Single Channel, 800 kHz Gain Bandwidth, 5-Pin SOT-23 Package TS321AILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TS321AILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TS321 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Power Supply Voltage | 3 V to 30 V |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 800kHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 50 nA |
| Low supply current | 500 μA |
| Low input bias current | 20 nA |
Key Features
- Single channel operational amplifier suitable for surface mounting.
- 5-pin SOT-23 compact package for space-efficient PCB design.
- Wide supply voltage range from 3 V to 30 V.
- Low input bias current of 20 nA for precision applications.
- Maximum supply voltage rating of 30 V ensuring robust operation.
- Low supply current of 500 μA for energy-efficient circuits.
- Input offset voltage of 3 mV to maintain signal integrity.
- Automotive grade AEC-Q100 compliant, suitable for harsh environments.
Product Description
The STMicroelectronics TS321AILT is a single-channel operational amplifier designed for surface mounting applications with a compact 5-pin SOT-23 package. It features an 800 kHz gain bandwidth product, making it well-suited for applications requiring moderate speed signal amplification.
This device provides low input bias current of 20 nA and a low supply current of 500 μA, which contribute to its high precision and energy efficiency. It supports a wide power supply voltage ranging from 3 V to 30 V with a maximum rating of 30 V, allowing flexibility in various circuit designs.
The input offset voltage is 3 mV and the device exhibits a slew rate of 0.4 V/μs, accommodating stable and accurate signal processing. Its operating temperature range of -40°C to 125°C qualifies it for automotive and industrial applications, further reinforced by its compliance with the automotive AEC-Q100 standard.
The TS321AILT includes protective features and an internally frequency-compensated design that simplifies usage while ensuring reliability. Its small footprint 5-pin SOP package facilitates easy PCB integration with minimal space requirements.
Single channel operational amplifier with 5-pin SOT-23 surface mount package. Gain bandwidth product of 800 kHz for moderate speed amplification. Wide operating supply voltage range from 3 V to 30 V. Extremely low input bias current of 20 nA and supply current of 500 μA.
Input offset voltage of 3 mV and slew rate of 0.4 V/μs. Operating temperature range of -40°C to 125°C suitable for automotive use. Automotive standard AEC-Q100 compliant for enhanced reliability. Output current capacity up to 40 mA.
This operational amplifier is ideal for use in industrial, automotive, consumer electronics, and communication systems requiring a reliable and compact amplifier solution. Explore the Electronics & Electricals category on EnvMart for more semiconductor components and Operational Amplifiers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS321AILT has a gain bandwidth product of 800 kHz, making it suitable for moderate speed signal amplification.
It supports a wide power supply voltage range from 3 V to 30 V, allowing flexibility in various circuit designs.
The input bias current is extremely low at 20 nA, which contributes to its precision in applications.
This operational amplifier can deliver an output current capacity of up to 40 mA.
The operating temperature range is from -40°C to 125°C, making it suitable for automotive and industrial applications.
The input offset voltage is 3 mV, which helps maintain signal integrity during operation.
The dimensions of this model are 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
The slew rate is 0.4 V/μs, accommodating stable and accurate signal processing.
It is packaged in a 5-pin SOT-23 format, which is designed for surface mounting applications.
Yes, it is compliant with the automotive standard AEC-Q100, ensuring reliability in harsh environments.
The maximum supply voltage rating is 30 V, ensuring robust operation in various applications.
The low supply current is 500 μA, contributing to energy-efficient circuit designs.
