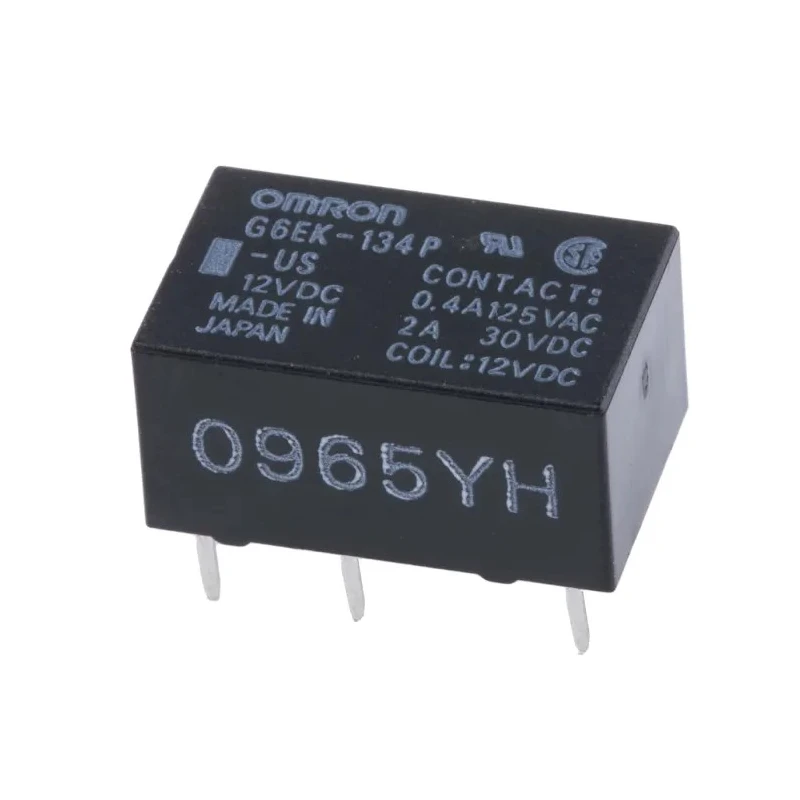

Omron PCB Signal Relay 12V DC Coil 3A SPDT G6EK-134P-US 12DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8mm |
| Length | 16mm |
| Model | G6EK-134P-US 12DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 60W |
Key Features
- The relay features an SPDT contact configuration for versatile circuit control.
- It supports switching AC voltages up to 250V and DC voltages up to 220V.
- Constructed with gold-plated contacts for enhanced conductivity and durability.
- Compact dimensions (16mm length, 10mm width, 8mm height) facilitate PCB mounting in tight spaces.
- Operates within a temperature range from -40°C to 70°C ensuring durability in varied environments.
- Coil resistance of 720Ω and coil power consumption of 200mW make it energy efficient.
- Fully sealed construction allows immersion cleaning of the PCB without damage.
- Impulse withstand voltage complies with FCC Part 68, enhancing reliability.
Product Description
Omron G6EK-134P-US 12DC PCB Signal Relay is designed for reliable signal switching with a 12V DC coil and 3A rated current. The SPDT contact configuration offers flexible circuit control suited for various industrial and automation needs. Its compact size (16mm length, 10mm width, 8mm height) and PCB mounting capability make it suitable for tight assembly spaces.
This relay operates efficiently with a coil resistance of 720Ω and coil power of just 200mW. It supports switching voltages of up to 250V AC and 220V DC, making it versatile for multiple electrical applications. The gold-plated contact material ensures excellent conductivity and long life.
With a fully sealed construction, the relay can withstand immersion cleaning, protecting the PCB and components during maintenance. Operating temperature ranges from -40°C to 70°C provide reliability across diverse environments. The impulse withstand voltage meets FCC Part 68 requirements, ensuring robust electrical performance.
Omron's G6E Series signal relay is UL and CSA approved, suitable for use in industrial, electrical automation, laboratory instrumentation, manufacturing control, and other signal conditioning applications. Its performance characteristics enable improved production efficiency with safe and precise signal switching.
The relay features an SPDT contact configuration for versatile circuit control. Supports switching AC voltages up to 250V and DC voltages up to 220V. Gold-plated contacts for enhanced conductivity and durability. Compact dimensions (16mm x 10mm x 8mm) facilitate PCB mounting.
Operating temperature range from -40°C to 70°C. Coil resistance of 720Ω with 200mW coil power consumption. Fully sealed for immersion PCB cleaning. Impulse withstand voltage compliant with FCC Part 68 standards. Ideal for industrial and electrical automation applications.
Explore more industry-leading Signal Relays and components by browsing our comprehensive Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile circuit control.
It supports switching AC voltages up to 250V and DC voltages up to 220V, making it suitable for various electrical applications.
The relay has compact dimensions of 16mm in length, 10mm in width, and 8mm in height, which facilitate PCB mounting in tight spaces.
The coil voltage is 12V DC, with a coil power consumption of 200mW, contributing to its energy efficiency.
It operates efficiently within a temperature range of -40°C to 70°C, ensuring reliability in diverse environments.
The coil resistance is 720Ω, which is an important specification for its operation.
The contacts are made from gold-plated material, which enhances conductivity and durability.
The relay can handle a maximum switching current of 3A, suitable for various applications.
Yes, it features a fully sealed construction that allows for immersion cleaning of the PCB without damage.
This model complies with RoHS standards and meets FCC Part 68 requirements for impulse withstand voltage.
It uses solder terminals, which are common for PCB mounting applications.
The contact resistance is specified at 50mΩ, which is critical for ensuring efficient operation.
