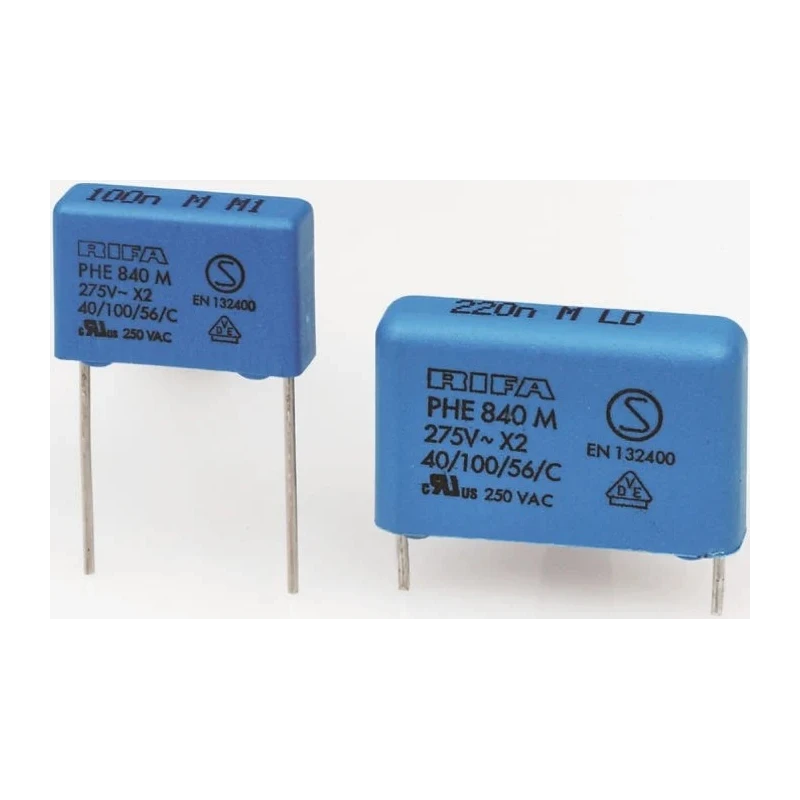

KEMET PHE840 Film Capacitor 47 nF ±20%, 760 V DC, 280 V AC, Through Hole PHE840

Free Delivery in India | Lowest Global Shipping Charges

KEMET PHE840 Film Capacitor 47 nF ±20%, 760 V DC, 280 V AC, Through Hole PHE840

Name: KEMET PHE840 Film Capacitor 47 nF ±20%, 760 V DC, 280 V AC, Through Hole PHE840
Brand: KEMET
SKU: 407338
Price: 0.38 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Indonesia
Brand	KEMET
Height	10.5mm
Length	13mm
Model	PHE840
Packaging	Bag
Width	4.5mm
Mount Type	Through Hole
Series	PHE840
Maximum Operating Temperature	105°C
Tolerance	±20 %
Capacitance	47nF
Minimum Operating Temperature	-55°C
Terminal type	Wire
Lead Length	30mm
Standards/Approvals	RoHS, UL1283, UL1414, CSA, EN132400, 22.2 No 8
Pin Count	2
Rated AC Voltage	280V ac
Rated DC Voltage	760V dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Epcos Polypropylene Film Capacitor, 305V ac, ±20%, 47nF, Through HoleBrand	Epcos

Key Features

This capacitor features a capacitance of 47 nF with ±20% tolerance.
Rated for 760 V DC and 280 V AC operation for robust voltage handling.
Constructed with metallised polypropylene film providing excellent electrical characteristics.
Through hole mount type with a lead pitch of 10 mm for easy PCB installation.
Operates reliably from -55°C to 105°C for extended temperature range applications.
Encapsulated in self-extinguishing UL94V-0 material ensuring high safety standards.
Complies with RoHS and several international approvals including UL1283, CSA, and EN132400.
Lead length is 30 mm with a 0.6 mm lead diameter and wire terminal type providing flexibility in connection.

Product Description

KEMET PHE840 Film Capacitor 47 nF ±20%, 760 V DC, 280 V AC, Through Hole is a metallised polypropylene film capacitor designed to suppress electromagnetic interference and noise in electronic applications. It is intended primarily for EMI suppression in X2 and across-the-line applications.

This capacitor is encapsulated with a self-extinguishing material conforming to UL94V-0 standards, providing enhanced safety and reliability during operation. It is rated for a DC voltage of 760 V and an AC voltage of 280 V, supporting a wide range of electrical systems.

The through hole mounting with a 10 mm lead pitch and wire terminals simplifies PCB integration and ensures mechanical stability. Its operating temperature range from -55°C to 105°C makes it suitable for use in challenging industrial and commercial environments.

With compliance to standards such as RoHS, UL1283, UL1414, CSA, EN132400, and Canadian standard 22.2 No 8, this capacitor meets global safety and performance regulations. The leads measure 30 mm in length and 0.6 mm in diameter, allowing for secure soldering and connection versatility.

Typical dimensions are 13 mm length, 4.5 mm width, and 10.5 mm height, making it a compact choice for circuit designers. This film capacitor is manufactured in Indonesia and is supplied in a bag packaging.

This capacitor is ideal for industrial electronics, power supplies, HVAC control systems, and various EMC critical applications. It is crucial to note that capacitors should not be installed in positions where failure could cause electric shock risk.

The product is new and comes with international safety approvals ensuring quality and compliance. Set your projects up for reliable EMI suppression with KEMET's PHE840 series capacitors. Explore the extensive range of electronic components and capacitors available in our catalog for all your design needs.

Enhance your industrial or laboratory electronic designs with proven KEMET Film Capacitors known for durability and compliance.
