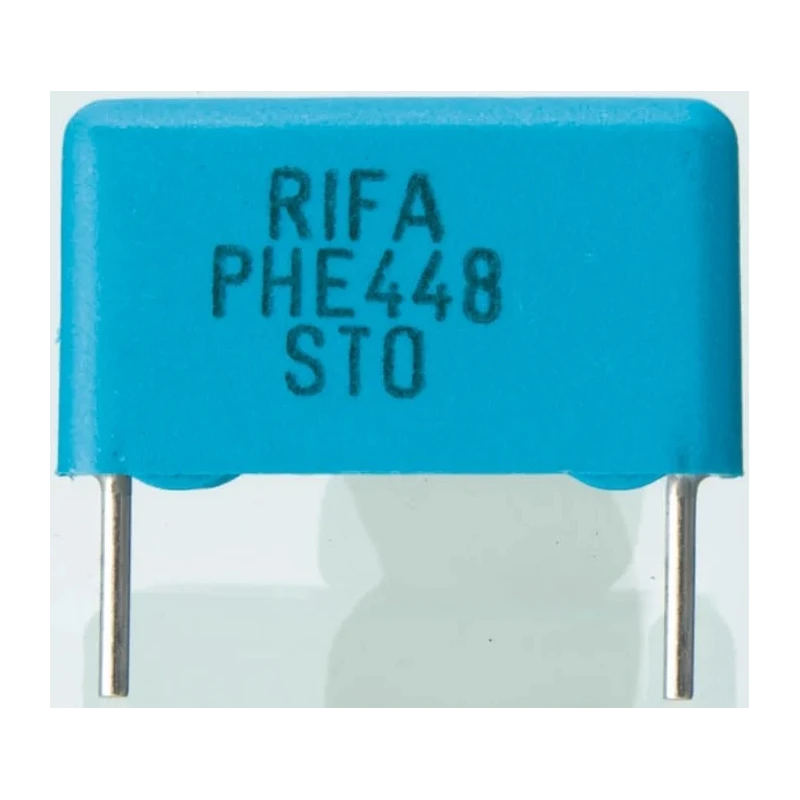

KEMET PHE448 Film Capacitor 150pF ±5% 2kV DC 700V AC Through Hole Radial Terminal
Specifications
| Country of Origin | Finland |
|---|---|
| Brand | KEMET |
| Height | 10.5mm |
| Length | 18mm |
| Model | PHE448 |
| Packaging | Tape & Reel |
| Width | 5.5mm |
| Mount Type | Through Hole |
| Series | PHE448 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 150pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.001% |
| Lead Length | 6mm |
| Pin Count | 2 |
| Rated AC Voltage | 700V ac |
| Rated DC Voltage | 2kV dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
Key Features
- Polypropylene film dielectric provides stability and durability.
- Rated for 2kV DC and 700V AC voltage capabilities.
- Operating temperature range from -55°C to 105°C ensures reliable performance.
- Encapsulated in UL94V-0 self-extinguishing material for safety compliance.
- Radial lead type with 15mm lead pitch and 6mm lead length for easy PCB mounting.
- Low dissipation factor of 0.001% minimizes losses in high-frequency circuits.
- Compact dimensions of 18mm length, 10.5mm height, and 5.5mm width.
- Suitable for demanding electronic applications requiring pulse and snubber capacitors.
Product Description
The KEMET PHE448 Film Capacitor model PHE448SB3150JR06 is a precision-engineered polypropylene film capacitor tailored for use in high-frequency and high-voltage pulse and snubber circuits. It boasts a capacitance of 150pF with a tolerance of ±5%, ensuring precise circuit behavior.
This through-hole capacitor uses radial terminals with a 15mm lead pitch and 6mm lead length, facilitating robust and reliable mounting on printed circuit boards. Rated for a DC voltage of 2kV and an AC voltage of 700V, it offers versatility in various demanding power and electronic component applications.
Encapsulated in a self-extinguishing material conforming to UL94V-0 standards, the capacitor assures safety and durability, withstanding operating temperatures from -55°C to 105°C. Its low dissipation factor (0.001%) minimizes energy loss, making it suitable for high-frequency applications.
Physical dimensions are compact with a length of 18mm, height of 10.5mm, width of 5.5mm, and lead diameter of 0.8mm, enabling integration into densely packed electronic assemblies. The device is supplied in tape and reel packaging, optimizing for automated manufacturing processes.
Typical applications for this capacitor include pulse and snubber circuits where reliability at high voltages and frequencies is critical. The component is designed and manufactured in Finland, adhering to stringent quality control protocols to ensure performance consistency.
Polypropylene film dielectric provides stable capacitance performance. Capacitance rated at 150pF ±5% for precision applications. Voltage ratings of 2kV DC and 700V AC for robust operation. Through-hole radial lead mounting with 15mm pitch for easy PCB integration.
Encapsulation meets UL94V-0 flammability standard for safety. Operating temperature from -55°C to 105°C for wide ambient conditions. Dissipation factor of 0.001% reduces energy losses in circuits. Compact size: 18mm length, 10.5mm height, 5.5mm width.
Delivered in tape & reel packaging for manufacturing efficiency. Ideal for high frequency, high voltage industrial and electronic applications. Explore more Film Capacitors and electronic components on EnvMart to find the best solutions for your industrial and laboratory electronics design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 150pF with a tolerance of ±5%.
It is rated for a DC voltage of 2kV and an AC voltage of 700V.
The operating temperature range is from -55°C to 105°C.
This model features radial terminals with a lead pitch of 15mm and a lead length of 6mm.
The dissipation factor is 0.001%, which minimizes energy losses in high-frequency circuits.
The dimensions are 18mm in length, 10.5mm in height, and 5.5mm in width.
It is supplied in tape and reel packaging, optimizing it for automated manufacturing processes.
The KEMET PHE448 is manufactured in Finland.
It is suitable for high-frequency and high-voltage pulse and snubber circuits.
It uses a polypropylene film dielectric, which provides stability and durability.
The maximum operating temperature is 105°C.
The lead diameter is 0.8mm.
