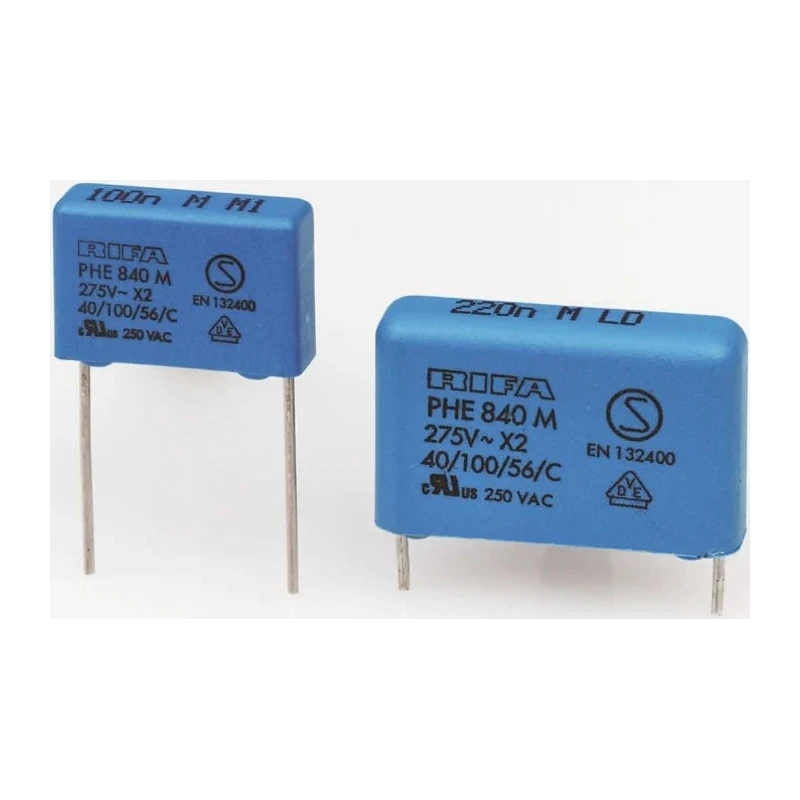

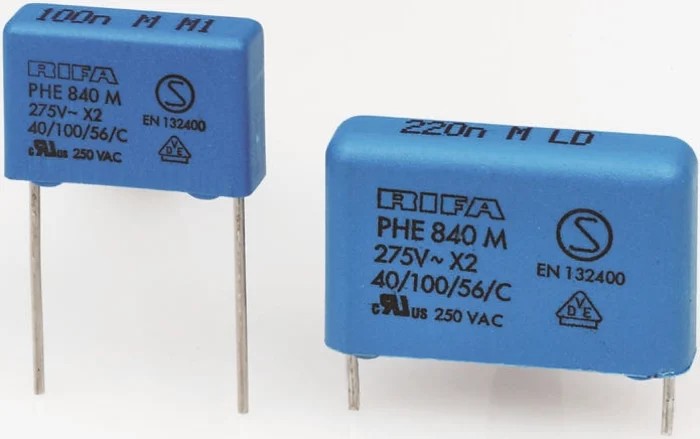

KEMET PHE840 Film Capacitor 22 nF ±20% 760 V DC 280 V AC Through Hole Mount PHE840

KEMET PHE840 film capacitor model PHE840, with a capacitance of 22 nF and a tolerance of ±20%, is a high-quality electronic component designed for through hole mounting on printed circuit boards (PCBs). It is rated for a DC voltage of 760 V and an AC voltage of 280 V, making it suitable for a wide range of EMI suppression and across-the-line applications in industrial, electronic manufacturing, and commercial environments.

This capacitor features encapsulation in a self-extinguishing material complying with the UL94V-0 standard, ensuring safety against fire hazards. It operates reliably within a temperature range from -55°C up to 105°C, supporting performance in demanding conditions.

Its compact dimensions (length 13 mm, height 9 mm, width 4 mm) and lead pitch of 10 mm, with wire terminal type leads 30 mm long and 0.6 mm thick, facilitate easy and secure mounting on electronic assemblies. The capacitor adheres to international standards including EN132400, UL1283, UL1414, CSA, and RoHS compliance, guaranteeing quality and conformity.

Ideal for applications in electronic design, power supplies, control equipment, and EMI/RFI suppression circuits, this film capacitor balances performance, safety, and regulatory compliance.

Through hole mounting ensures strong PCB connections. Self-extinguishing UL94V-0 encapsulation enhances safety. Designed for EMI suppression and across the line use. Wide operating temperature range from -55°C to 105°C. Compliance with EN132400, UL, CSA, and RoHS standards.

Metallised polypropylene dielectric material for stability and durability. Compact size fits diverse electronic assemblies. Explore more KEMET Film Capacitors and related electronic components on EnvMart for your project and manufacturing needs.
