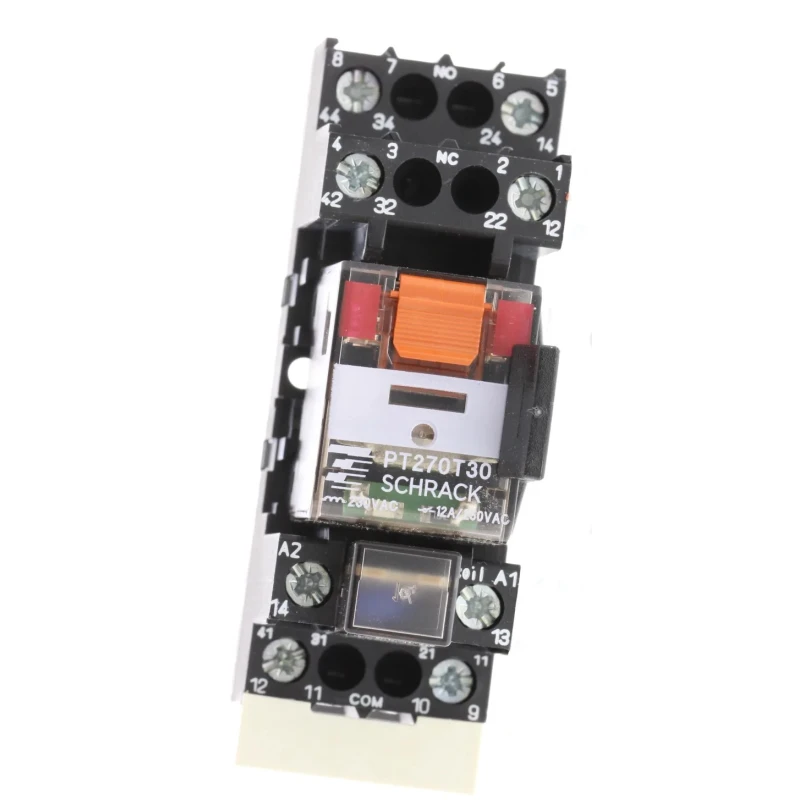

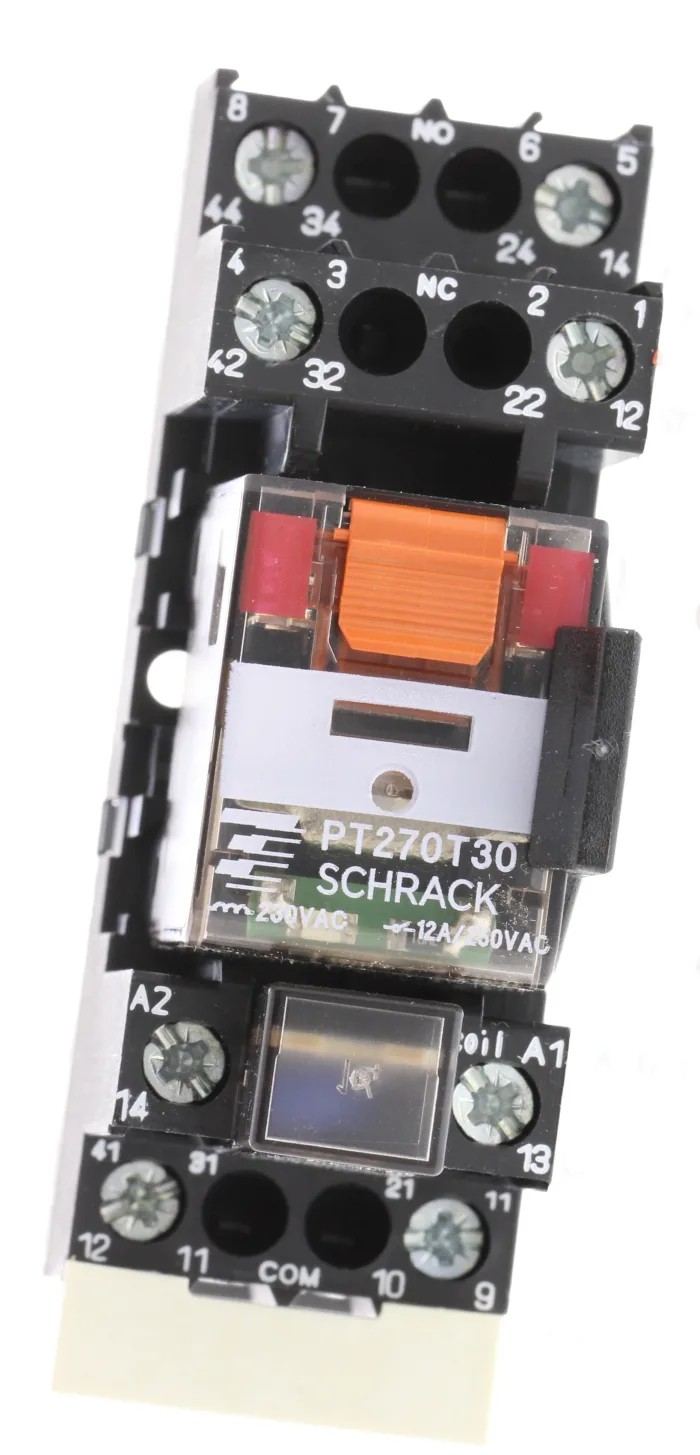

TE Connectivity DIN Rail Power Relay 230V AC Coil 12A Switching Current DPDT PT2S7TD0 6-1415074-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 58mm |
| Length | 73.5mm |
| Model | PT2S7TD0 6-1415074-1 |
| Width | 27mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Screw |
| Standards/Approvals | VDE, UL, IEC, RoHS |
| Coil Resistance | 19.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 1W |
Key Features
- The relay supports DIN rail mounting suitable for industrial control panels.
- Equipped with screw terminals for secure electrical connections.
- Designed for reliable operation between -40°C to 70°C ambient temperatures.
- Contact material is silver nickel alloy, ensuring durable electrical contact performance.
- Complies with international standards including VDE, UL, IEC, and RoHS for safety and environmental compliance.
- Includes mechanical and electrical indicators and manual test tab for easy status verification.
- Coil resistance is 19.5 kΩ with a coil power consumption of 1 W.
Product Description
TE Connectivity PT2S7TD0 6-1415074-1 DIN Rail Power Relay is engineered for precise switching applications in industrial automation, electrical control, and signal conditioning systems. Featuring a 230V AC coil and a double pole double throw (DPDT) contact configuration, it handles a switching current of up to 12A and switching AC voltage of 400V AC. The relay’s robust silver nickel alloy contacts ensure long operational life and reliable conduction under demanding conditions.
Its compact dimensions of 73.5mm length, 27mm width, and 58mm height allow easy integration into DIN rail assemblies commonly found in control cabinets. The relay supports operation in a broad temperature range of -40°C to 70°C, making it suitable for various industrial environments.
This product includes multiple features such as mechanical and electrical indicators as well as a manual test tab for field verification. AC coil versions like this model come with integrated LED and varistor modules for coil protection and status indication. The DIN rail socket is designed with a logical terminal arrangement and includes a second A2 terminal for easier wiring looping.
Certified to meet safety and environment standards including VDE, UL, IEC, and RoHS, this relay guarantees compliant performance for demanding applications in manufacturing, automation, HVAC, and industrial controls.
The relay supports DIN rail mounting suitable for industrial control panels. Equipped with screw terminals for secure electrical connections. Designed for reliable operation between -40°C to 70°C ambient temperatures. Contact material is silver nickel alloy, ensuring durable electrical contact performance.
Complies with international standards including VDE, UL, IEC, and RoHS for safety and environmental compliance. Includes mechanical and electrical indicators and manual test tab for easy status verification. Length dimension is 73.5 mm, width 27 mm, and height 58 mm for compact installation.
Coil resistance is 19.5 kΩ with a coil power consumption of 1 W. This TE Connectivity product is ideal for applications requiring dependable power relay switching controlled by a 230V AC coil within industrial electrical and automation systems.
Explore the wide range of Power Relays and DIN rail components on EnvMart to find complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of up to 12A.
The coil voltage for this model is 230V AC.
The relay has a length of 73.5 mm, a width of 27 mm, and a height of 58 mm.
It features a double pole double throw (DPDT) contact configuration.
The relay is designed to operate in ambient temperatures ranging from -40°C to 70°C.
This model is equipped with screw terminals for secure electrical connections.
The contact material is silver nickel alloy, which ensures reliable electrical contact performance.
It complies with international standards including VDE, UL, IEC, and RoHS for safety and environmental compliance.
The coil resistance is 19.5 kΩ.
The coil power consumption is 1W.
Yes, it includes mechanical and electrical indicators as well as a manual test tab for easy status verification.
This relay is suitable for applications in industrial automation, electrical control, and signal conditioning systems.
