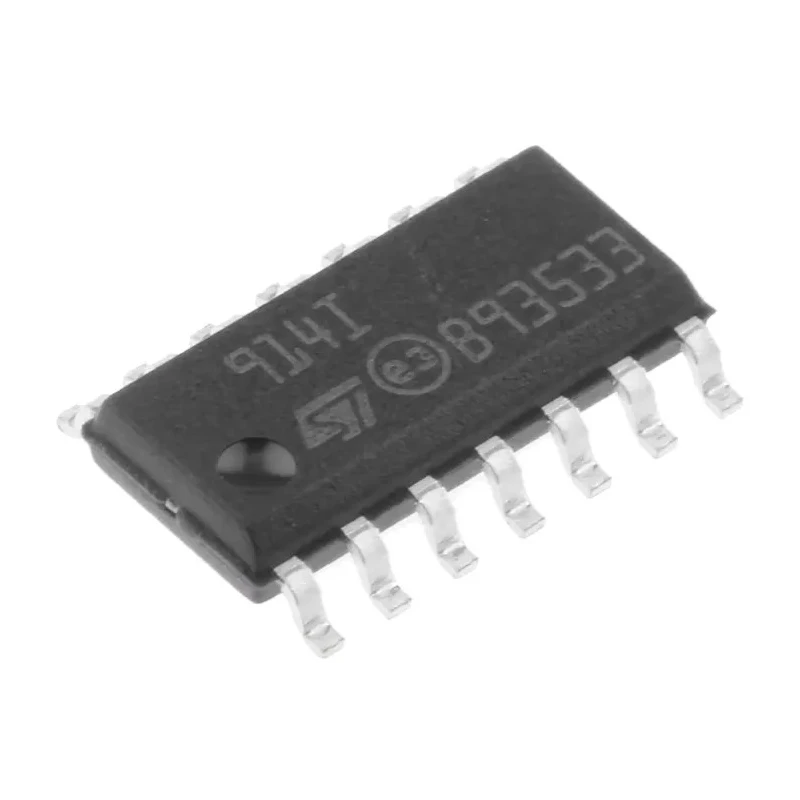

STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth, 14-Pin SOIC, 16V TS914ID

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth, 14-Pin SOIC, 16V TS914ID

Name: STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth, 14-Pin SOIC, 16V TS914ID
Brand: STMicroelectronics
SKU: 406439
Price: 1.86 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.65mm
Length	8.75mm
Model	TS914ID
Width	4mm
Mount Type	Surface
Series	TS914
Output Current	60mA
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	4
Standards/Approvals	ECOPACK
Pin Count	14
Automotive Standard	AEC-Q3, AEC-Q2, AEC-Q100, AEC-Q1
Maximum Supply Voltage	16V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	1MHz
Slew Rate	0.8V/μs
Low input offset voltage	5 mV max. (A grade)
Low input bias current	1 pA typical

Key Features

Features low power consumption suitable for various electronics applications.
Supports surface mounting with a small form factor of 8.75mm length and 4mm width.
Includes 4 channels in one package for multi-signal amplification.
Operates within a wide temperature range from -40°C to 125°C.
Offers a low input bias current of 1 pA typical and low input offset voltage for precision performance.
Complies with ECOPACK environmental standards for safer electronic design.
Designed with automotive standards including AEC-Q3, AEC-Q2, AEC-Q100, and AEC-Q1 for reliability.
Output current capability of 60mA for versatile signaling needs.

Product Description

STMicroelectronics TS914ID is a high-performance operational amplifier featuring a gain bandwidth product of 1 MHz and packaged in a compact 14-Pin SOIC surface-mount form factor. It supports a wide supply voltage range from 3V minimum up to 16V maximum, enabling flexible power configurations in electronic circuit designs.

This amplifier includes four independent channels, enabling multi-signal processing within a single component, ideal for complex applications in industrial, automotive, and consumer electronics.

Designed to operate across a broad temperature range from -40°C to 125°C, the TS914ID ensures reliability in harsh environments and complies with ECOPACK standards promoting environmentally responsible manufacturing. Automotive-grade certifications (AEC-Q3, AEC-Q2, AEC-Q100, AEC-Q1) attest to its robustness and suitability for automotive electronics systems.

The TS914ID offers low input bias current of 1 picoampere typical and a low input offset voltage of 5 millivolts maximum (A grade), ensuring precision and stability in sensitive signal applications. Its output current of 60mA and slew rate of 0.8 volts per microsecond make it capable of efficient and reliable signal amplification in various electronic devices.

The dimensions of 8.75 mm in length, 4 mm in width, and 1.65 mm in height, along with surface mounting, support compact and efficient PCB layouts. Gain Bandwidth Product: 1 MHz. Number of Channels: 4. Pin Count: 14. Maximum Supply Voltage: 16 V.

Operating Temperature Range: -40°C to 125°C. Low Input Bias Current: 1 pA typical. Low Input Offset Voltage: 5 mV max (A grade). Output Current: 60 mA. Slew Rate: 0.8 V/μs. Package Type: SOIC, Surface Mount.

These specifications make the TS914ID suitable for use in industrial electronics, automotive control systems, instrumentation, audio processing, and communication devices where high precision and reliability are required.

Explore the STMicroelectronics range of Operational Amplifiers on EnvMart to find reliable components engineered for diverse and demanding electronics applications.
