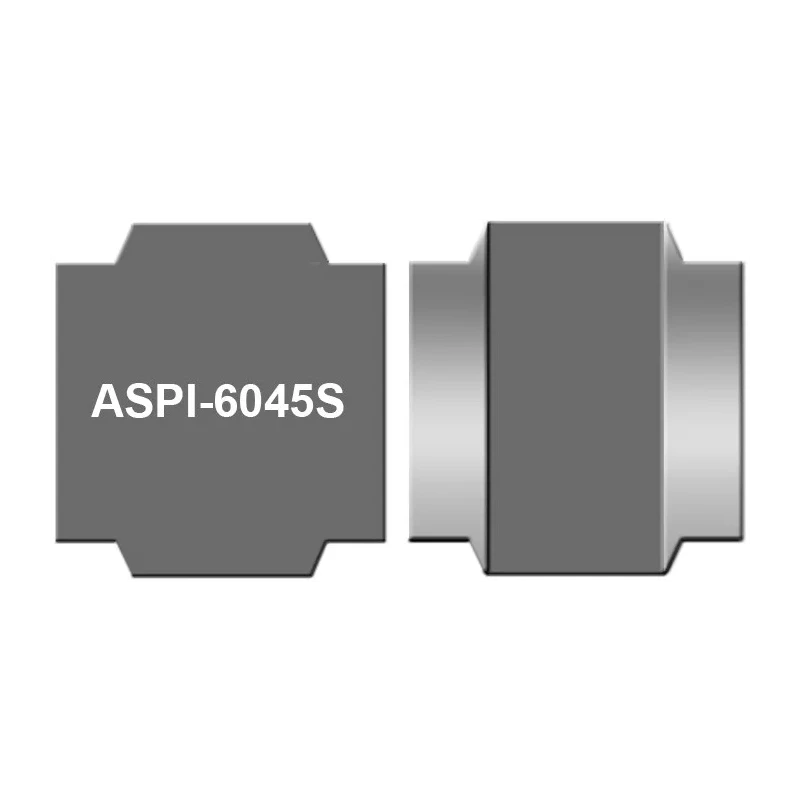

Abracon Shielded Surface Mount Inductor Ferrite Core 220μH Flat Wire Winding ±20% 590mA ASPI-6045S-221M-T

The Abracon ASPI-6045S-221M-T is a shielded Surface Mount Inductor designed for high reliability and efficient performance in electronic applications. Featuring a ferrite core and flat wire winding, this inductor provides 220μH inductance with a tolerance of ±20% and supports a maximum DC current of 590mA. Its magnetic shielding minimizes electromagnetic interference, making it suitable for sensitive circuits.

The construction includes a low DC resistance of 0.83Ω, enhancing energy storage capability for power management applications. The inductor is molded and designed for surface mounting with a compact size of 6mm length, 4.5mm height, and 4.5mm depth. The device operates reliably within temperatures ranging from -40°C to 125°C and complies with RoHS environmental standards.

Packaged in tape and reel format, it supports automated PCB assembly, ideal for manufacturing high-volume electronics. This component finds wide use in DC-DC converters, portable communication equipment, LCD and DVD devices, modems, and set-top boxes where efficient magnetic components are essential.

Magnetically shielded design reduces electromagnetic interference. Flat wire winding construction for optimal performance. Low DC resistance of 0.83Ω ensures energy efficiency. Suitable for surface mount applications on PCBs.

Operating temperature range from -40°C to 125°C for reliability. Compliant with RoHS standards for environmental safety. Packaged in tape and reel format for automated assembly. Core made from ferrite material for effective magnetic properties.

Compact size with dimensions of 6mm length and 4.5mm height/depth. Pin count of 2 with surface mount termination style.

Well suited for industrial, telecommunications, computing, and consumer electronic manufacturing uses. Explore more Abracon shielded inductors at EnvMart for enhanced circuit performance and reliability.
