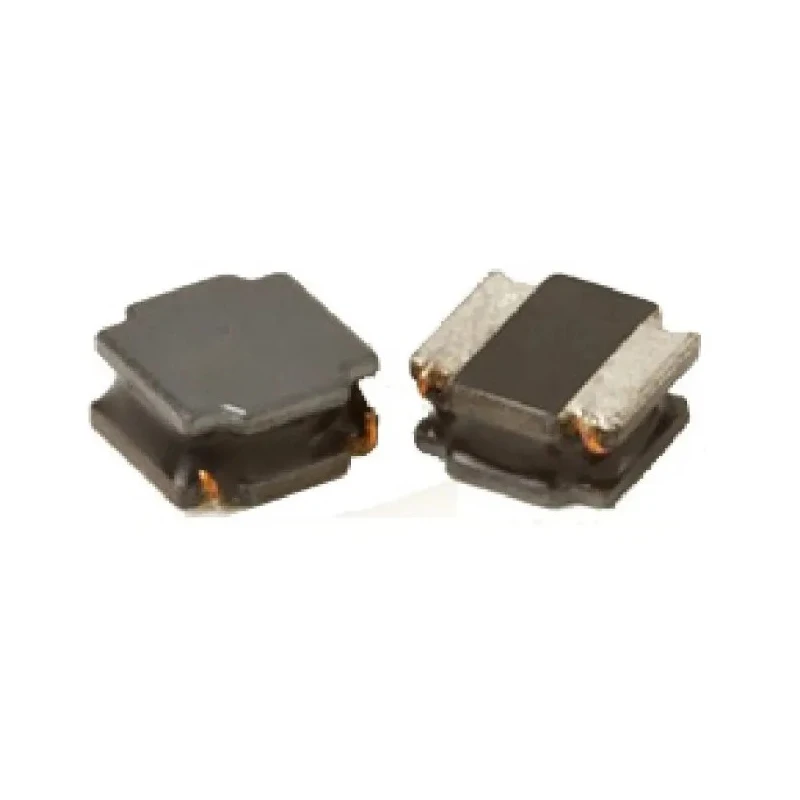

Abracon Shielded Surface Mount Inductor Ferrite Core 2.2 μH ±30% 4.9 A Idc ASPI-4030S-2R2N-T

Abracon ASPI-4030S-2R2N-T shielded surface mount inductor is a high-performance power inductor featuring a ferrite core with a flat wire winding construction. It provides an inductance of 2.2 μH with a tolerance of ±30%, and supports a maximum DC current of 4.9 A, making it suitable for applications requiring high current capability and low electromagnetic interference.

The magnetically shielded design prevents radiation emissions, enhancing overall circuit performance in sensitive electronic environments. The large terminal surface area ensures reliable PCB bonding, while the low DC resistance of 0.03 Ω contributes to energy-efficient operation. This surface mount inductor is supplied in tape and reel packaging, facilitating automated mounting in production lines.

With a compact form factor measuring 4 mm in length, 3 mm in height, and 3 mm in depth, the ASPI-4030S-2R2N-T easily fits into tight electronic assemblies. Its operating temperature range from -40°C to 125°C makes it suitable for industrial, commercial, and portable electronics including communication equipment, LCD and DVD devices, modems, set-top boxes, and DC/DC converter circuits.

The RoHS-compliant device has a ferrite core and moulded structure for mechanical robustness. Its flat wire winding construction optimizes energy storage and supports stable inductance performance despite environmental variations.

Magnetically shielded design reduces electromagnetic interference. Flat wire winding construction enhances energy storage efficiency. Surface mount package with tape and reel for automated assembly. Operating temperature range from -40°C to 125°C suitable for various environments.

Low DC resistance of 0.03 Ω minimizes power loss during operation. Compact dimensions: 4 mm length, 3 mm height, 3 mm depth for space-limited PCB layouts. RoHS compliant with ferrite core and moulded construction for durability.

Ideal for portable communication devices, LCDs, DVD players, modems, set-top boxes, and DC/DC converters. This inductor is widely used in electronics manufacturing, telecommunications, and power regulation circuits requiring stable inductance and minimal interference.
