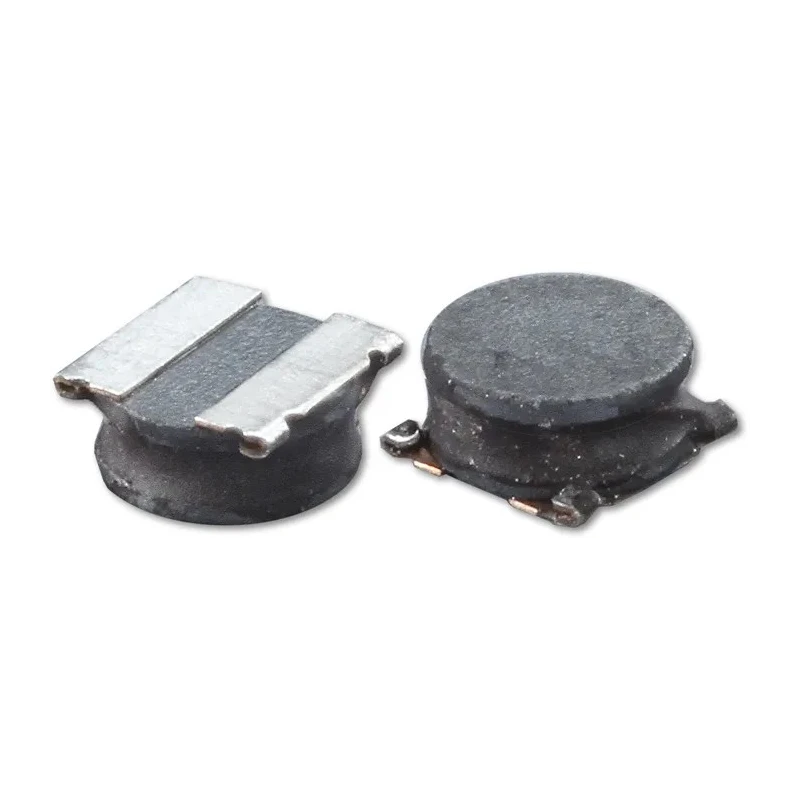

Abracon Shielded Surface Mount Inductor with Ferrite Core 10 μH Flat Wire Winding 770 mA Idc ASPI-0315FS-100M-T2

Abracon ASPI-0315FS-100M-T2 is a shielded surface mount inductor featuring a ferrite core and flat wire winding construction, offering an inductance of 10 μH with a tolerance of ±20%. Designed for high performance and reliability, this inductor supports a maximum DC current of 770 mA and exhibits a low maximum DC resistance of 325 mΩ.

Its compact dimensions of 3 mm length, 1.5 mm height, 1.5 mm depth, and 2.5 mm diameter make it ideal for high-density surface mount applications. The device operates reliably within a temperature range of -40°C to 125°C and complies with RoHS standards, ensuring environmental safety and compatibility with modern electronics manufacturing.

The inductor's flat wire winding construction and magnetic powder molding provide robust mechanical stress resistance and excellent magnetic shielding, minimizing interference with other circuit components. This device is especially suitable for portable electronics such as mobile phones, digital cameras, MP3 players, and other communication equipment requiring compact and efficient inductors.

Packaged in tape and reel form, ASPI-0315FS-100M-T2 facilitates automated PCB assembly workflows, improving production efficiency for manufacturing environments in industrial, telecommunications, consumer electronics, and medical device sectors.

Shielded ferrite core design reduces electromagnetic interference. Compact, low-profile surface mount package enhances PCB space utilization. Flat wire winding ensures stable inductance and minimal signal loss. Wide operating temperature range for diverse environment applications.

RoHS compliant and lead-free manufacturing process. Tape & reel packaging ready for automated assembly lines. High self-resonant frequency supports modern high-speed circuits. Mechanical robustness ensures durability in industrial and consumer devices.

Ideal for mobile communication and portable electronic systems. Magnetically shielded to maintain circuit integrity in sensitive applications. Explore more Surface Mount Inductors and Abracon components at EnvMart for reliable electronic solutions tailored to your industrial and commercial requirements.
