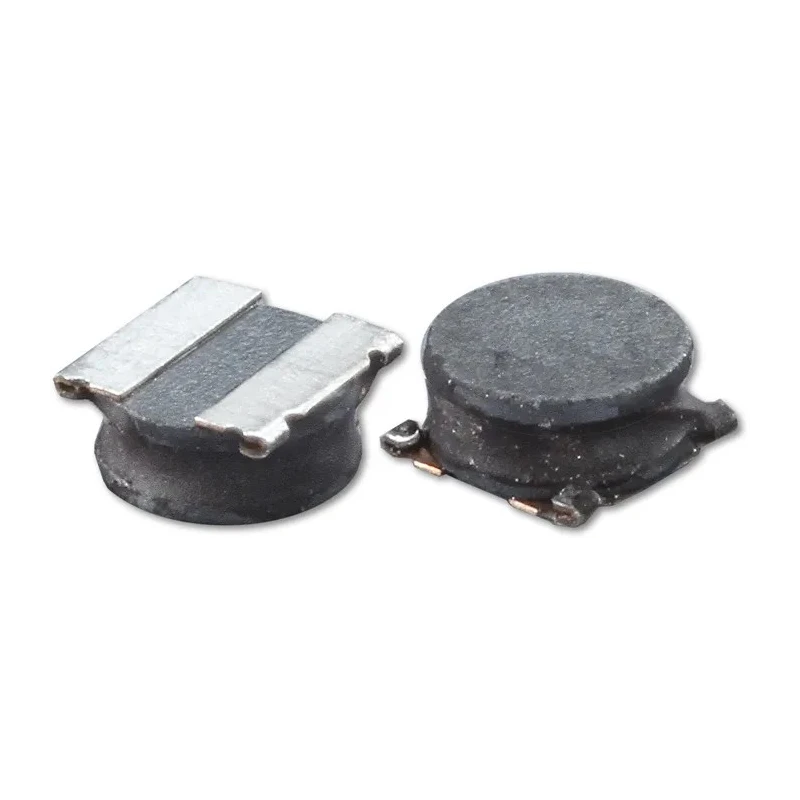

Abracon Shielded Surface Mount Inductor with Ferrite Core 2.2 μH 1.6 A Idc Flat Wire Winding ASPI-0315FS-2R2M-T2

Abracon ASPI-0315FS-2R2M-T2 is a shielded surface mount inductor featuring a ferrite core and flat wire winding construction. This low-profile component measures 3mm in length, 1.5mm in height, and 1.5mm in depth, making it suitable for compact electronic assemblies where space saving is critical.

With an inductance value of 2.2 μH and a maximum DC current rating of 1.6 A, it offers reliable performance in portable communication devices including mobile phones, digital cameras, and MP3 players. The inductor exhibits a ±20% inductance tolerance and can operate within a temperature range from -40°C to 125°C, ensuring durability under varying environmental conditions.

The magnetic powder molded shielding minimizes electromagnetic interference, contributing to enhanced signal integrity in electronic circuits. Additionally, the component supports a maximum self-resonant frequency of 86 MHz, adding to its versatility for high-frequency applications.

This Surface Mount Inductor utilizes a 4-pin termination style designed for compatibility with automated pick-and-place manufacturing processes, provided in tape and reel packaging to optimize production efficiency.

As a RoHS-compliant component, it aligns with environmental and safety standards required in modern electronic manufacturing. Ferrite core provides stable magnetic properties for inductance. Flat wire winding reduces resistance ensuring higher current capacity.

Compact and low profile design for space-saving PCB layout. Magnetically shielded to prevent electromagnetic interference. Wide operating temperature range suitable for various environments. Compatible with surface mount technology and automated assembly.

Compliance with RoHS standards guarantees environmentally responsible manufacturing. High self-resonant frequency supports high-speed electronic applications.

This inductor is ideal for applications in industrial electronics, telecommunications, consumer portable devices, and other electronic equipment requiring efficient power delivery components. Browse our broad range of inductors and electronic components at EnvMart to find solutions tailored to your project needs.
