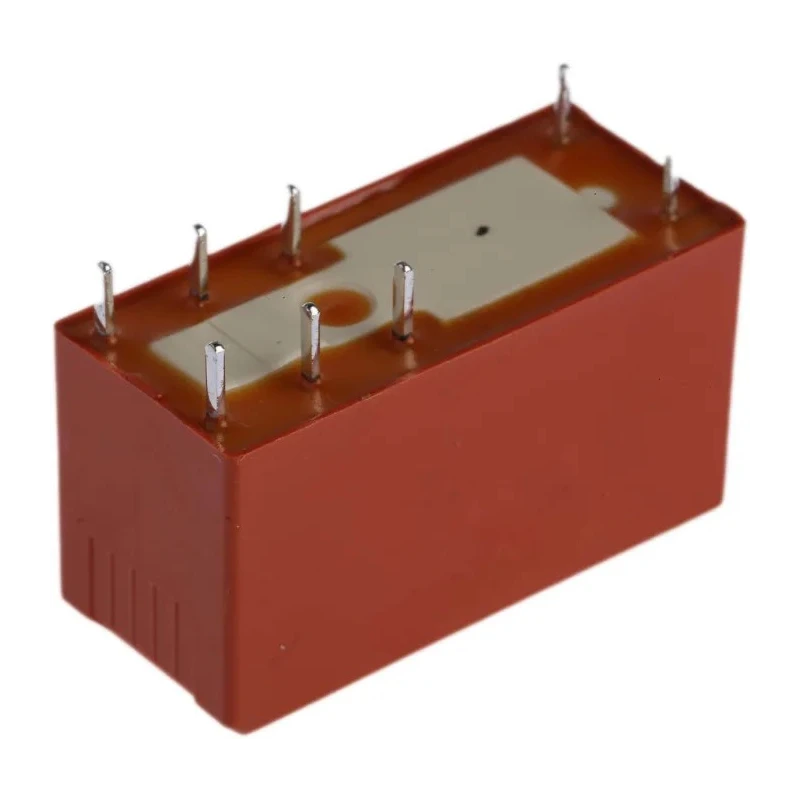

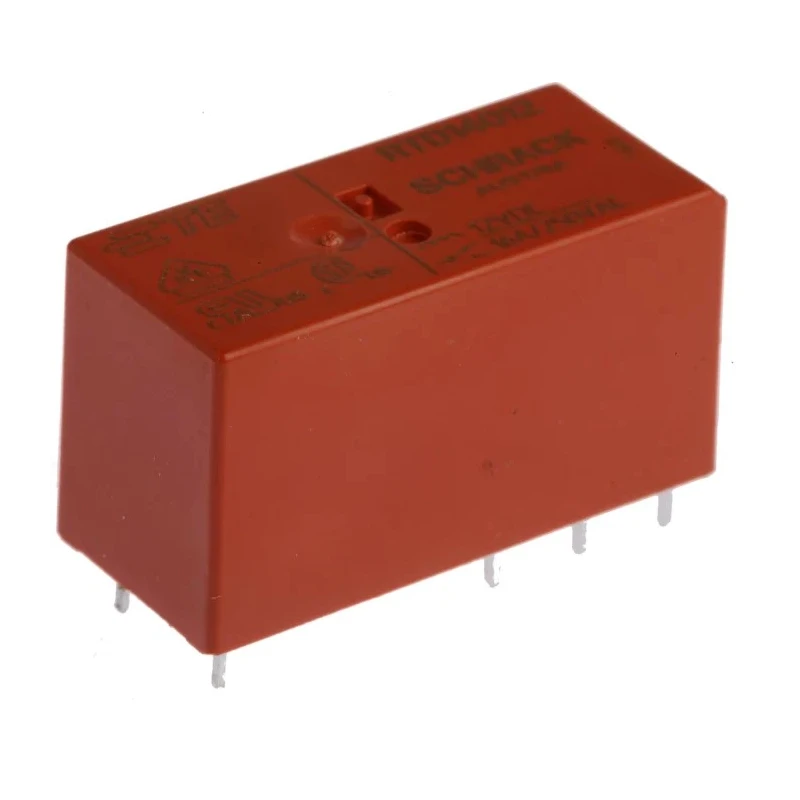

TE Connectivity PCB Power Relay, 12V DC Coil, 16A Switching Current, SPDT RTD14012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTD14012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |

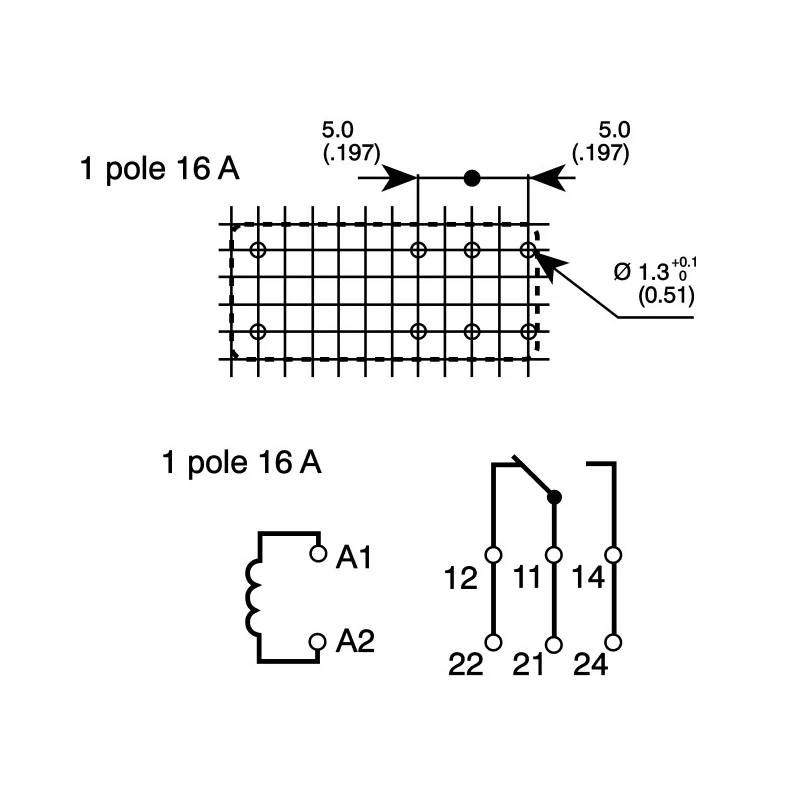

| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Finder PCB Relay, 12V dc Coil, 16A Switching Current, SPDTBrand | Finder |
Key Features
- Equipped with a SPDT contact configuration for reliable circuit switching.
- Operates with a 12V DC coil voltage providing efficient actuation.
- Supports a 16A maximum switching current for high-load applications.
- Coil resistance of 360 ohms ensuring consistent performance.
- Contact material is silver nickel alloy for durable conductivity.
- Designed for PCB mounting with solder terminal type.
- Operating temperature range from -40°C to 85°C ensuring reliability under diverse conditions.
- Coil power consumption is low at 400mW for energy-efficient operation.
Product Description
TE Connectivity RTD14012 PCB Power Relay is a general-purpose non-latching relay designed for PCB mounting with a Single Pole Double Throw (SPDT) contact configuration. It operates at a coil voltage of 12V DC and supports a switching current of up to 16A, making it suitable for various industrial and automation applications.
The relay features a coil resistance of 360 ohms and a low coil power consumption of 400mW, optimizing energy use during operation. Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height allow easy integration into PCB assemblies.
Built with a silver nickel alloy contact material, the relay ensures high conductivity and durability under load. It is designed for through-hole soldering, enhancing secure electrical connections on circuit boards.
The operational temperature range spans from -40°C to 85°C, offering reliable performance in diverse industrial environments. The product complies with cULus and VDE safety certifications, confirming its quality and adherence to safety standards.
This relay is ideal for applications including automation, domestic appliance control, heating systems, security lighting, and other electronic switching tasks. Its wash-tight and 5mm pinning characteristics further enhance its assembly versatility and durability.
Equipped with a SPDT contact configuration for reliable circuit switching. Operates with a 12V DC coil voltage providing efficient actuation. Supports a 16A maximum switching current for high-load applications. Coil resistance of 360 ohms ensuring consistent performance.
Compact dimensions: 29mm length, 12.7mm width, and 15.7mm height. Contact material is silver nickel alloy for durable conductivity. Designed for PCB mounting with solder terminal type. Operating temperature range from -40°C to 85°C ensuring reliability under diverse conditions.
Coil power consumption is low at 400mW for energy-efficient operation. Meets cULus and VDE standards for safety and quality assurance.
This product is a vital component for industrial, automation, HVAC, and manufacturing systems needing robust Power Relay solutions. EnvMart offers this quality TE Connectivity relay for electronics and electrical integration projects requiring high reliability and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 16A, making it suitable for high-load applications.
This model operates with a coil voltage of 12V DC, which is necessary for its actuation.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration for reliable circuit switching.
The coil resistance is 360 ohms, ensuring consistent performance during operation.
The operating temperature range for this relay spans from -40°C to 85°C, allowing for reliable performance in diverse conditions.
This relay is designed for PCB mounting with a solder terminal type, facilitating secure electrical connections.
The contact material is silver nickel alloy, which provides durable conductivity under load.
This relay complies with cULus and VDE safety certifications, confirming its quality and adherence to safety standards.
The coil power consumption is low at 400mW, optimizing energy use during operation.
This relay is suitable for various applications including automation, domestic appliance control, heating systems, and security lighting.
The maximum switching AC voltage for this relay is 400V AC, allowing it to handle significant electrical loads.
