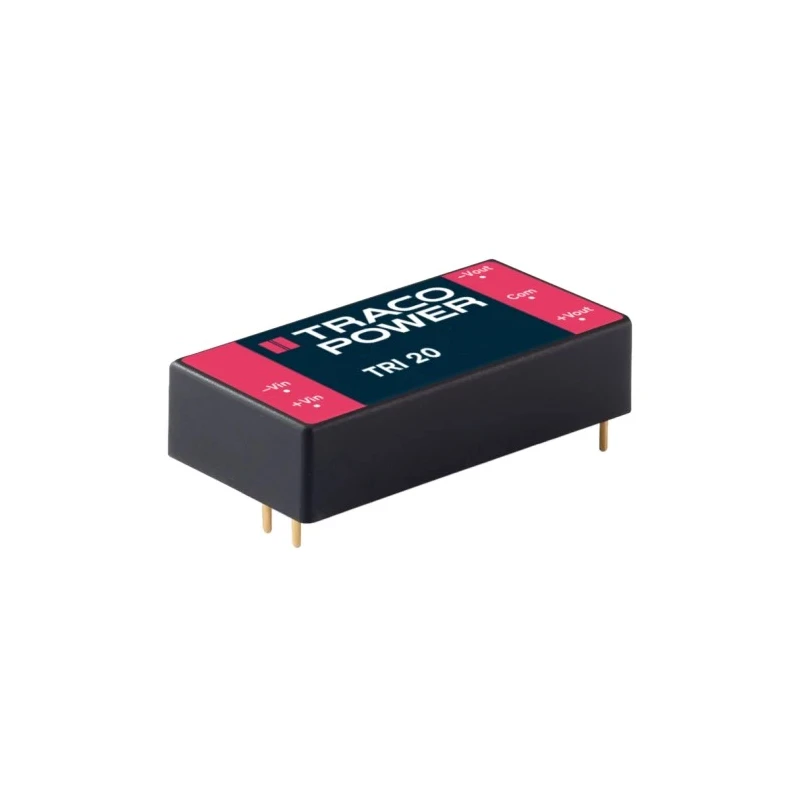

TRACOPOWER DC/DC Converter 15V dc, 670 mA Output, 36-75V dc Input, 20W Through Hole DIP Package TRI 20-4823

TRACOPOWER TRI 20-4823 is a high-performance DC/DC converter designed for industrial and electronic power applications. It provides a regulated 15V dc output at 670 mA, supporting a wide input voltage range from 36V dc to 75V dc with a maximum output power of 20W. The product features a through hole DIP package with 5 pins and a compact size of 50.8 mm length, 25.4 mm width, and 12 mm depth.

Its robust design includes reinforced I/O isolation rated at 4200 VAC and an ultra-high isolation peak voltage of 8000 VDC (for 1 second), ensuring safe operation under high voltage stress. The converter also offers common mode transient immunity (dv/dt) of 15 kV/μs. This makes it suitable for demanding environments and sensitive electronics.

The TRI 20-4823 has a highly efficient design, achieving up to 90% efficiency, while consuming low power in no-load conditions (240 to 480 mW). It provides protection against overload, overvoltage, and short circuit, which contributes to system reliability and protection of connected components.

With an operating temperature range of -40°C to +76°C, this DC/DC converter is suitable for use in a variety of industrial, HVAC, manufacturing, and power supply systems requiring stable and reliable voltage conversion. The converter's long MTBF of approximately 1,087,000 hours emphasizes its durability in continuous use.

High efficiency up to 90 percent supports energy saving applications. Operating temperature range from -40°C to 76°C for harsh environments. Two outputs with reinforced I/O isolation rated at 4200 VAC and ultra-high peak isolation voltage of 8000 VDC.

Low no-load power consumption for reduced standby energy use. Protection against overload, overvoltage and short circuit mechanisms. 5-pin through hole DIP package for easy mounting and PCB installation. Wide input voltage range of 36-75 V dc with 2:1 input ratio for flexibility.

High reliability with MTBF of 1,087,000 hours. Manufactured in Taiwan, Province Of China with 3-year warranty.

This TRACOPOWER DC/DC converter is ideal for power management in industrial automation, renewable energy systems, telecommunications, and embedded systems requiring compact and rugged voltage regulation solutions.
