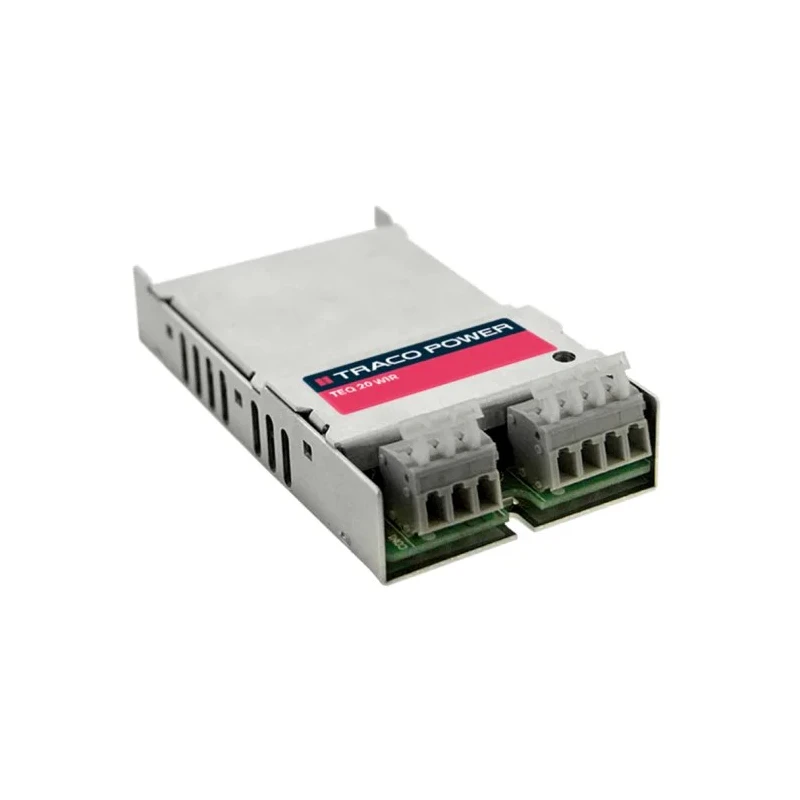

TRACOPOWER High-Performance Railway DC/DC Converter 12V dc Output, 36V dc to 9V Input, Chassis Mount, 20W TEQ 20-2422WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEQ 20WIR DC/DC Converter, 12V dc/, 36V |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 103mm |
| Model | TEQ 20-2422WIR |
| Depth | 26.1mm |
| Width | 57.2mm |
| Mount Type | Chassis Mount |
| Series | TEQ 20WIR |
| Maximum Operating Temperature | 93°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1600000h |
| Number of outputs | 2 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 833mA |
| Isolation Voltage | 2.25kV dc |
| Input Ratio | 1:6 |
| Output Voltage 2 | -12V dc |
| Input Ratio1 | 6 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Delivers dual isolated outputs of +12V and -12V DC at 833mA max current.
- Chassis mount metal case design for reliable mechanical and thermal performance.
- High efficiency of 87% ensures reduced energy loss and heat.
- Operating temperature range from -40°C to 93°C for harsh environments.
- Includes under voltage lockout, over temperature, and short circuit protections.
- Isolation voltage of 2250V DC enhances system safety.
- Compact dimensions of 103mm by 57.2mm by 26.1mm for versatile installation.
- Mean time between failures (MTBF) of 1,600,000 hours guarantees long service life.
Product Description
TRACOPOWER TEQ 20-2422WIR DC/DC Converter is a high-performance isolated module designed for demanding railway and industrial power conversion applications. Featuring a robust metal chassis mount construction, it supports a wide input voltage range from 9V to 36V DC, enabling versatile use across various DC power systems.
This model provides dual output voltages of +12V DC and -12V DC with output current up to 833 mA per output. With a maximum output power rating of 20 watts, the converter achieves an efficiency of 87%, optimizing power utilization while minimizing heat generation.
Engineered to operate reliably in harsh environments, it supports a broad temperature range from -40°C to +93°C, with natural convection cooling. Further protective features include under voltage lockout, over temperature protection, and short-circuit protection, ensuring safe and continuous operation.
The isolation voltage of 2250V DC enhances system safety by maintaining strong electrical isolation between input and output circuits. Its compact dimensions (103mm × 57.2mm × 26.1mm) and chassis mount configuration allow easy integration within control cabinets or power enclosures without PCB mounting capabilities.
Typical applications include railway signaling and control systems, industrial automation, power distribution networks, and other systems requiring reliable isolated DC/DC conversion at moderate power levels.
The converter’s ultra-wide 4:1 input voltage range supports variable DC sources from 9V to 36V. Dual isolated outputs cater to split voltage requirements (+12V and -12V DC). High MTBF of 1,600,000 hours underlines product reliability and longevity.
Mechanical chassis mount design allows easy mounting and superior heat dissipation. Multiple protection mechanisms enhance operational safety and uptime. Compact rugged metal case construction suited for industrial conditions.
Applicable to railway, industrial automation, and other critical power applications. RoHS compliant with no specific approvals indicated.
Discover a comprehensive range of high-quality DC/DC Converters at EnvMart to suit your industrial power needs. Explore products by TRACOPOWER and other trusted manufacturers to source reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TRACOPOWER TEQ 20-2422WIR DC/DC converter is from 9V to 36V DC.
This model provides dual output voltages of +12V DC and -12V DC.
The maximum output power rating of this converter is 20 watts.
The efficiency rating of this converter is 87%, optimizing power utilization while minimizing heat generation.
The dimensions of the TRACOPOWER TEQ 20-2422WIR are 103mm in length, 57.2mm in width, and 26.1mm in depth.
This unit operates within a temperature range of -40°C to +93°C, making it suitable for harsh environments.
This model features two outputs, providing both +12V DC and -12V DC.
The converter includes under voltage lockout, over temperature protection, and short-circuit protection to ensure safe operation.
The isolation voltage of the TRACOPOWER TEQ 20-2422WIR is 2250V DC, enhancing system safety.
The MTBF for this converter is 1,600,000 hours, indicating its reliability and longevity.
This model is designed for chassis mount installation, allowing for easy integration within control cabinets or power enclosures.
Typical applications for this converter include railway signaling and control systems, industrial automation, and power distribution networks.
