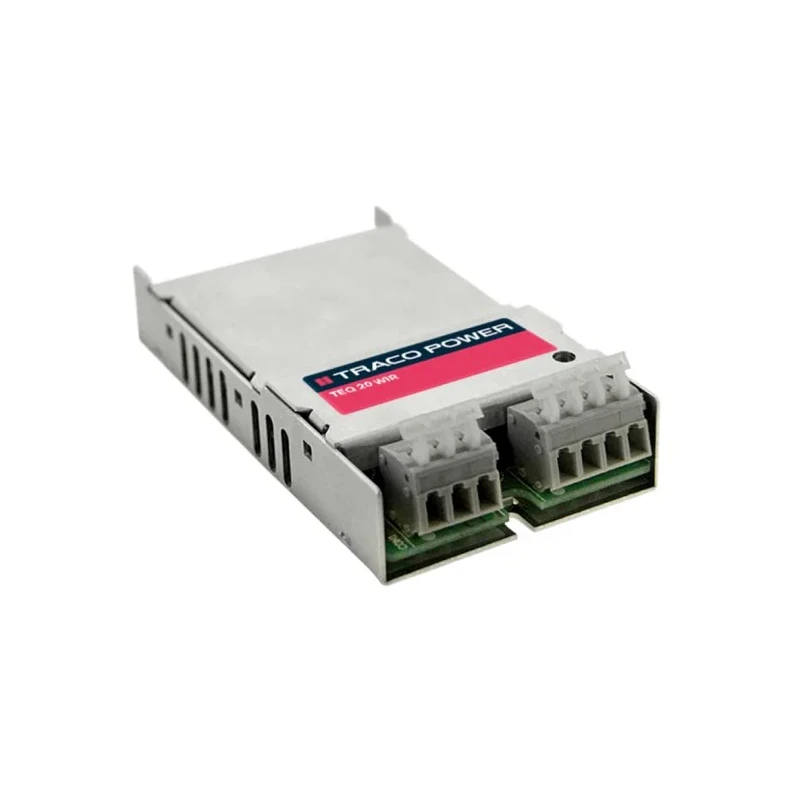

TRACOPOWER TEQ 20-7223WIR 20W DC/DC Converter 15V dc Output, 43V-160V dc Input, Chassis Mount TEQ 20-7223WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEQ 20WIR DC/DC Converter, 15V dc/, 160 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 103mm |
| Model | TEQ 20-7223WIR |
| Depth | 26.1mm |
| Width | 57.2mm |
| Mount Type | Chassis Mount |
| Series | TEQ 20WIR |
| Maximum Operating Temperature | 93°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1600000h |
| Number of outputs | 2 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 667mA |
| Isolation Voltage | 2.25kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- The converter provides a regulated 15V dc output voltage suitable for industrial applications.
- It supports an input voltage range from 43V to 160V dc, enabling flexible power sourcing.
- Designed for chassis mounting, it features a rugged metal case for thermal management.
- High efficiency of 88% ensures reduced power loss during operation.
- Operates reliably in temperatures from -40°C to 93°C, suitable for demanding environments.
- Includes built-in protections such as under voltage lockout, over temperature, and short circuit safeguards.
- Isolation voltage of 2.25kV dc guarantees safe electrical separation for industrial safety standards.
- Mean time between failures (MTBF) is rated at 1,600,000 hours, ensuring reliable long-term performance.
Product Description
TRACOPOWER TEQ 20-7223WIR is a high-performance DC/DC converter module designed for industrial and railway applications requiring robust and reliable power conversion. It delivers a nominal output voltage of 15V dc with dual outputs, suitable for powering sensitive electronic equipment.
The converter accepts an ultra-wide input voltage range from 43V to 160V dc, useful in applications with varying power sources or unstable input conditions. Its chassis mount design incorporates a rugged metal casing that offers effective thermal convection, enabling operation without power derating up to +83°C and up to +93°C with derating.
Efficiency reaches up to 88%, contributing to energy savings and minimal heat generation. The device includes essential protection features such as under voltage lockout, over temperature shutdown, and short circuit protection to enhance device and system safety. Isolation voltage capability of 2.25kV dc ensures safe isolation between input and output, complying with industrial standards.
This converter's longevity is proven by an MTBF of 1,600,000 hours, reflecting reliable performance over extended usage periods. Its compact dimensions (Length: 103mm, Width: 57.2mm, Depth: 26.1mm) allow installation in constrained spaces.
Suitable use cases include industrial automation, railway systems, and other applications where stable and isolated DC power with high reliability and wide input ranges are critical. The product is originated from Taiwan, Province Of China, and is supplied in new condition.
The converter provides a regulated 15V dc output voltage suitable for industrial applications. Supports ultra-wide input voltage from 43V to 160V dc for versatile power sourcing. Features chassis mount rugged metal case for effective heat dissipation and installation flexibility.
High efficiency of 88% reduces power losses and improves system performance. Operates within temperature extremes from -40°C to 93°C for harsh environments. Includes undervoltage lockout, overtemperature protection, and short circuit safeguards.
Maintains isolation voltage of 2.25kV dc for electrical safety and compliance. Long MTBF of 1,600,000 hours ensures dependable industrial operation. Explore more in the EnvMart Electronics & Electricals catalog for DC/DC Converters from leading brands like TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 15V dc.
This model supports an input voltage range from 43V to 160V dc.
The efficiency of the TRACOPOWER TEQ 20-7223WIR is rated at 88%.
The dimensions are 103mm in length, 57.2mm in width, and 26.1mm in depth.
It can operate at a maximum temperature of 93°C.
It includes built-in protections such as under voltage lockout, over temperature shutdown, and short circuit protection.
The isolation voltage is rated at 2.25kV dc.
This converter has two outputs.
The MTBF is rated at 1,600,000 hours.
It is designed for chassis mounting.
It is suitable for industrial automation, railway systems, and other applications requiring stable and isolated DC power.
The output current for the 15V output is 667mA.
