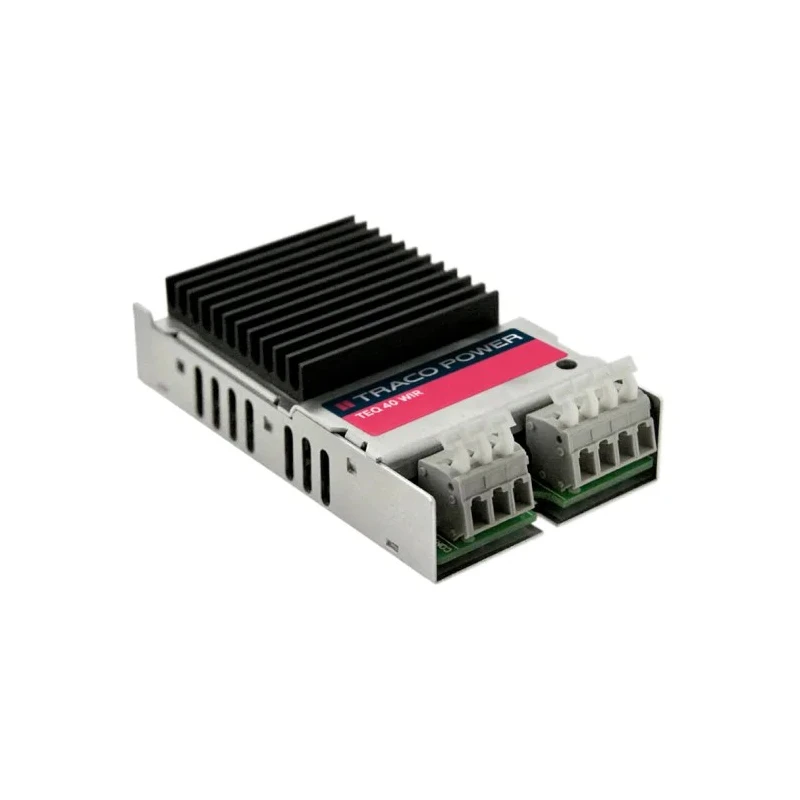

TRACOPOWER High Performance Railway DC/DC Converter 15V/−15V Output 40W 75V DC Input Chassis Mount Metal Case TEQ 40-4823WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEQ 40WIR DC/DC Converter, 15V dc/, 75V |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 103mm |
| Model | TEQ 40-4823WIR |
| Depth | 26.1mm |
| Width | 57.2mm |
| Mount Type | Chassis Mount |
| Series | TEQ 40WIR |
| Maximum Operating Temperature | 92°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1.33mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 1:6 |
| Output Voltage 2 | -15V dc |
| Input Ratio1 | 6 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Dual outputs of 15V and -15V DC with maximum total power of 40 watts.
- Wide input voltage range from 18V to 75V DC for versatile use.
- Chassis-mount rugged metal case suitable for applications with no PCB mounting options.
- Operating temperature range from -40°C to 92°C with heatsink for high thermal efficiency.
- High isolation voltage of 1.6kV DC ensuring reliable protection and signal integrity.
- Features include undervoltage lockout, overtemperature protection, and short circuit protection.
- Mean time between failures (MTBF) of 1,000,000 hours indicating strong reliability.
- Compact dimensions of 103mm length, 57.2mm width, and 26.1mm depth.
Product Description
TRACOPOWER TEQ 40-4823WIR DC/DC Converter is engineered as a high performance isolated railway and industrial power module. It supports an ultra-wide 4:1 input voltage range from 18V to 75V DC, making it suitable for diverse power environments. The dual outputs provide ±15V DC with a combined output power of 40 watts, ideal for precise DC voltage supply applications.
This converter is constructed with a rugged metal chassis mount enclosure for optimal heat dissipation and mechanical protection, enabling mounting in challenging industrial setups without PCB options. The operating temperature range spans from -40°C to +92°C, supported by a heatsink design and power derating at elevated temperatures.
Key features include a 1.6kV DC isolation voltage for enhanced safety and noise reduction, undervoltage lockout for input voltage protection, overtemperature protection for thermal safety, and built-in short circuit protection ensuring robust operational reliability. With a MTBF of 1,000,000 hours, this module offers a high degree of reliability for demanding industrial environments.
The compact footprint measures 103mm in length, 57.2mm in width, and 26.1mm in depth, making it manageable for space-constrained installations. The converter delivers a high efficiency of about 89%, contributing to energy savings and cooler operation.
This DC/DC converter is ideal for industrial automation, railway systems, power management setups, telecommunications equipment, and other applications requiring isolated dual voltage outputs with wide input ranges and superior reliability.
Package contains a single TRACOPOWER TEQ 40-4823WIR DC/DC Converter module with 7-pin interface and chassis mounting hardware. Browse more high quality DC/DC Converters from TRACOPOWER and other top brands at EnvMart for your industrial power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 75V DC, allowing for versatile use in various power environments.
This converter provides dual outputs of +15V DC and -15V DC, with a maximum combined output power of 40 watts.
The efficiency of the TEQ 40-4823WIR DC/DC converter is approximately 89%, contributing to energy savings and cooler operation.
The operating temperature range for this unit spans from -40°C to +92°C, supported by a heatsink design for high thermal efficiency.
This converter features a high isolation voltage of 1.6kV DC, ensuring reliable protection and signal integrity.
It is designed for chassis mounting, making it suitable for applications where PCB mounting options are not available.
The MTBF for the TEQ 40-4823WIR is 1,000,000 hours, indicating a high degree of reliability for demanding applications.
The compact dimensions of this model are 103mm in length, 57.2mm in width, and 26.1mm in depth.
It includes undervoltage lockout, overtemperature protection, and short circuit protection to ensure robust operational reliability.
This converter has two outputs, providing both +15V DC and -15V DC.
It is suitable for industrial automation, railway systems, power management setups, and telecommunications equipment that require isolated dual voltage outputs.
The input ratio for this DC/DC converter is 1:6, allowing it to handle a wide input voltage range efficiently.
